Paper Box Packaging Machine

Paper Box Packaging Machine photo-1
US$ 5,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, food, medicine, book, chemical, drinking
Packaging Type:
Belt, Film, Other, Belt, Film, Various shrinking,
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, food, medicine, book, chemical, drinking
Packaging Type Belt, Film, Other, Belt, Film, Various shrinking,
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 10kw
Place of Origin Shandong, China
Brand Name Dongtai
Model Number BS-400LBpaper box packaging machine
Dimension(L*W*H) 2300*850*1550mm
Weight 300kg
Certification ISO, CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

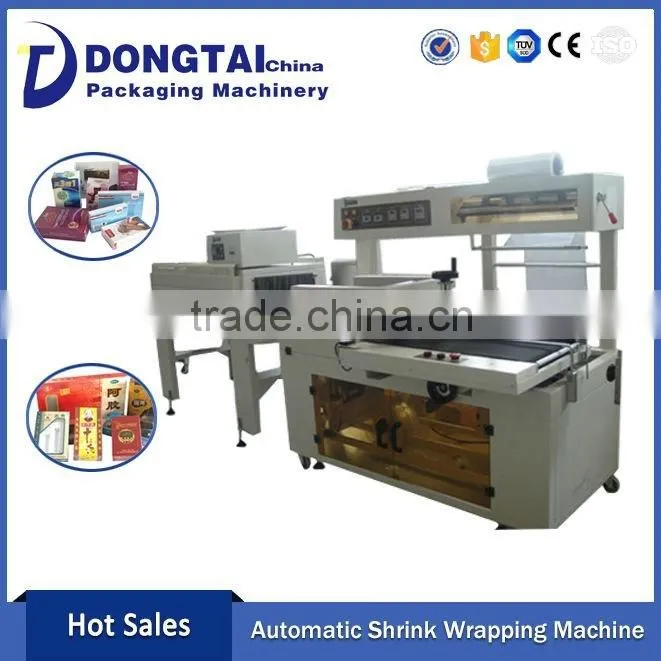

Product Name: Paper Box Packaging Machine


Machine:Paper Box Packaging Machine
Type: Automatic Shrink Wrapping Machine

Specifications of Paper Box Packaging Machine

Model
BMD-450A
Sealing type
L-sealing by means of L-bar
Power supply
380V/50-60Hz/3phase
Packing capacity
35 packs per minute (depends on product size and film width)
L-bar size
 570x480 mm
Max height of sealing frame
width: 520mm (folded), outer diameter: 400mm
Conveyor speed
19 m/min
Working height
780-850 mm
Rated power consumption
 1.2 kW
Air pressure
<=0.5MPa (5 bar)
PLC
Siemens CPU
Sealing system
permanently heated seal bar with easy-exchangeable sealing blade with Teflon, temperature controlled and detected by PLC
Operating interface
Touchscreen Eview MV506, display operation guidance and error diagnostic
Machine material
stainless steel
Machine dimension
1600x770x1450mm
Model
BMD-450B
Power supply
380V/50-60Hz/3phase
Oven size
1200(length) x 450(width) x 220(height) mm
Conveyor speed
variable, 40 m/min
Conveyor:
chains with rotating silicon coated rods
Temperature control
By electronic thermostat
Rated power consumption
max 7 kW
Working height
780-850 mm
Machine material
stainless steel
Machine dimension
1600x600x1260mm

Features of Paper Box Packaging Machine
Paper Box Packaging Machine is adopted PLC programmable control, man-machine interface operation.
All enclosed package.
Paper Box Packaging Machine is automatic feeding, wrapping film, making bags, sealling cutting, the whole flat, shrink, packaging and finished product in whole complete.
Constant temperature super alloy seal cutter, anti-adhesive,small sealing line , non-coking, non-smoke, zero pollution.
when the cutting knife to the packing material will automatically rebound.
Packaging size can be arbitrarily adjusted without changing mold
Conveyor belt all the sets of PTFE insulated pipes, not hot, not harm the film.

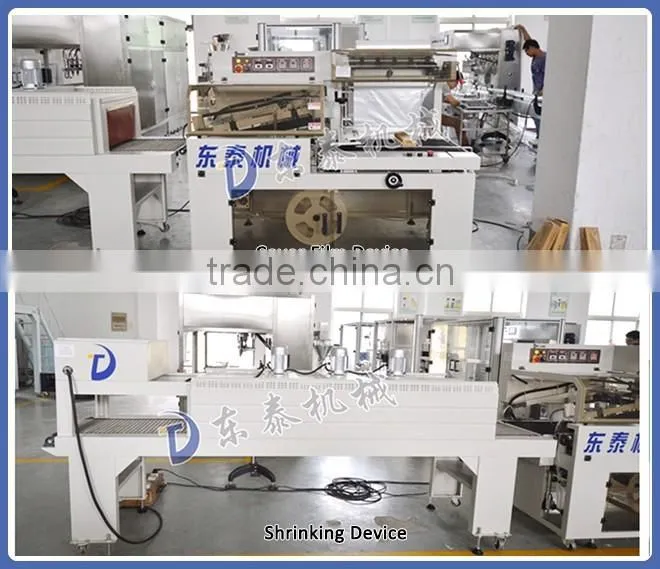

Shrink part adopts a dual circulating hot air chamber system, the temperature can be arbitrarily adjusted
Conveyor motor adopts stepless variable speed motor, long life, low noise.

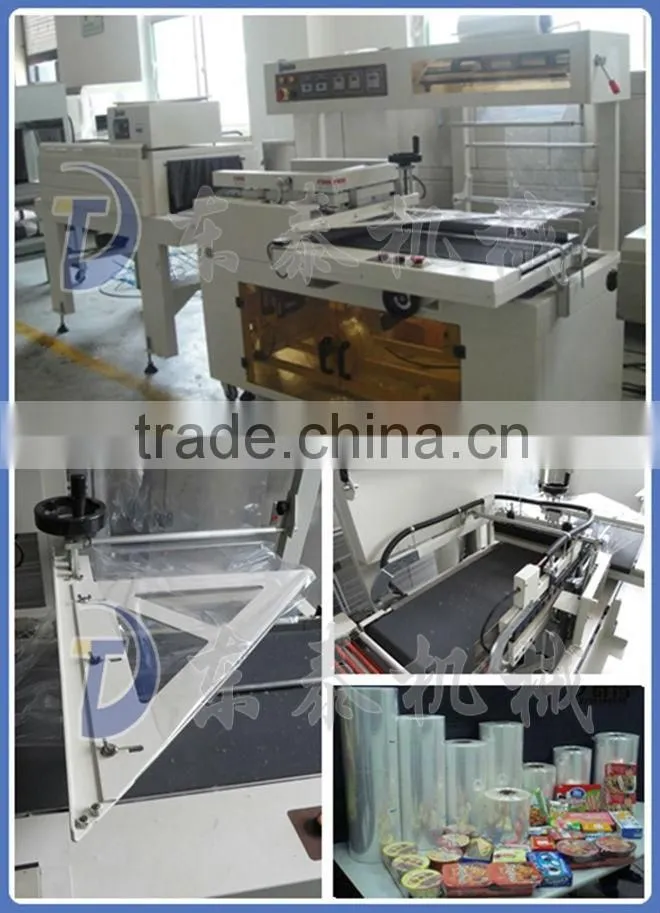

Detailed Images
Certification

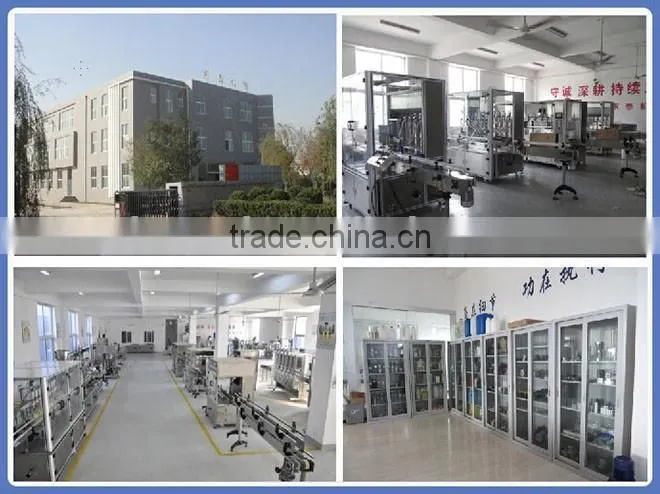

Compnay Information

JINAN DONGTAI MACHINERY MANUFACTURING CO., LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.

Our business involves various markets all over the world, in many fields with our excellent product performance.Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.

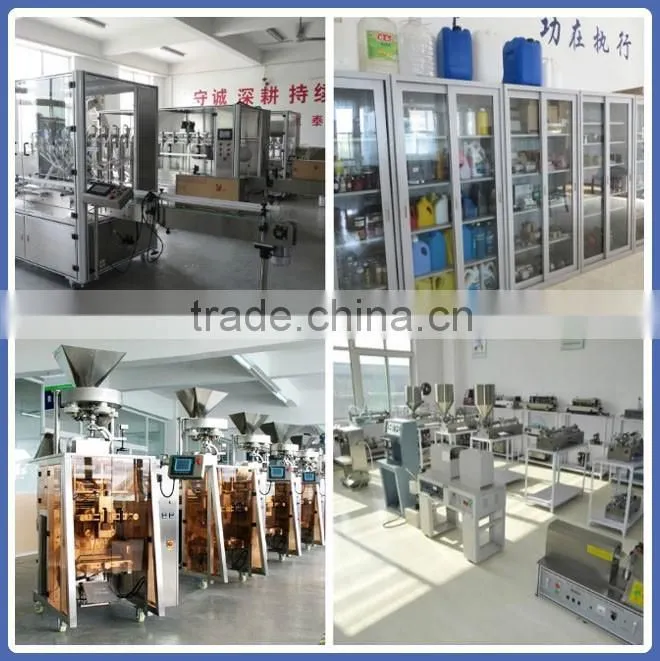

Other Products
Various packaging machine, packaging related machinery, packing machine, semi-auto filling machine, automatic liquid filling machine, antifreeze filler, paste lotion filler, magnetic pump manual liquid filling machine, coding machine, sealing machine, electromagnetic induction sealing machine, labeling machine, shrinking machine, granule packing machine, powder packing and filling machine, vacuum packaging machine, etc.

Our Services

We as a manufacturer are specialized in all kinds of packaging machinery equipment.
Good experience of many years and to be devoted to the packaging industry for food, medicine, daily chemical, washing, beverage and other industries packaging, etc.  No damage to human factors, all products one year warranty, life-long maintenance. If you have any problems, don't hesitate to contact us, please.

We can in a timely manner to provide customers with comprehensive after-sale service.


 Dongtai has a highly sophisticated technical talent, has a high- quality team

Sincere service for your dedicated



Packaging & Shipping

Standard Export Packing For Paper Box Packaging Machine

A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
