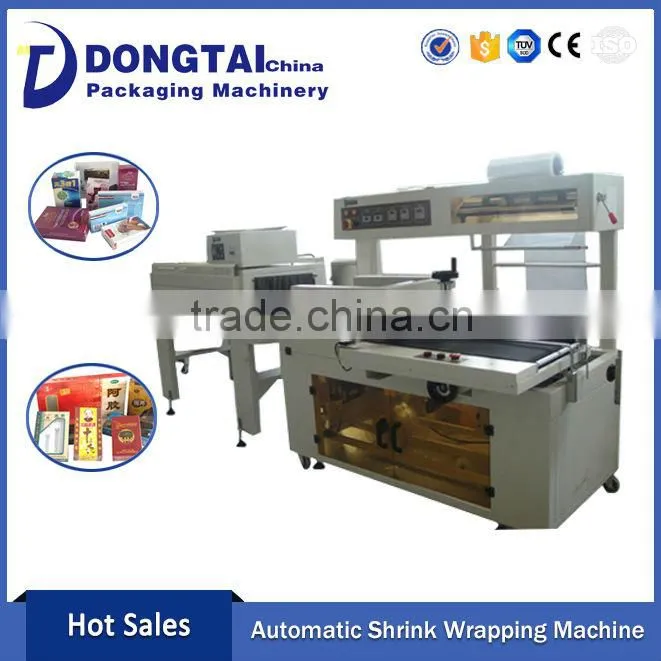

Product Name: Automatic Wrapping Machine
Type: BS-400LB
Introduction of Automatic Wrapping Machine
Automatic wrapping machine is automatic feeding, wrapping film, making bags, sealling cutting,
the whole flat, shrink, packaging and finished product in whole complete.
Features of Automatic Wrapping Machine
This automatic wrapping machine adopts PLC programmable control, man-machine interface operation.All enclosed package.
Constant temperature super alloy seal cutter, anti-adhesive,small sealing line , non-coking, non-smoke, zero pollution.
when the cutting knife to the packing material will automatically rebound.
Packaging size can be arbitrarily adjusted without changing mold
Conveyor belt all the sets of PTFE insulated pipes, not hot, not harm the film.
Shrink part adopts a dual circulating hot air chamber system, the temperature can be arbitrarily adjusted.
Conveyor motor adopts stepless variable speed motor, long life, low noise.
Specifications of Automatic Wrapping Machine
- Sealing type: L-sealing by means of L-bar
- Power supply: 380V/50-60Hz/3phase
- Packing capacity: 35 packs per minute (depends on product size and
film width)
- L-bar size: 570x480 mm
- Max height of sealing frame: 125 mm
- Film type: center-folded film with 12-80 micron
- Max film size: width: 520mm (folded), outer diameter: 400mm
- Conveyor speed: 19 m/min
- Working height: 780-850 mm
- Rated power consumption: 1.2 kW
- Air pressure: <=0.5MPa (5 bar)
- PLC: Siemens CPU
- Sealing system: permanently heated seal bar with easy-exchangeable
sealing blade with Teflon, temperature controlled and detected by PLC
- Operating interface: Touchscreen Eview MV506, display operation
guidance and error diagnostic
- Machine material: stainless steel
- Machine dimension: 1600x770x1450mm
BMD-450B
- Power supply: 380V/50-60Hz/3phase
- Oven size: 1200(length) x 450(width) x 220(height) mm
- Conveyor speed: variable, 40 m/min
- Conveyor: chains with rotating silicon coated rods
- Temperature control: By electronic thermostat
- Rated power consumption: max 7 kW
- Working height: 780-850 mm
- Machine material: stainless steel
- Machine dimension: 1600x600x1260mm
Details of Automatic Wrapping Machine
Standard Export Packing for Automatic Wrapping Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO., LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
Jinan Dongtai Workshop
