VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam

Shenzhen Vstarcam Technology Co., Ltd.
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam thumbnail-1
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam thumbnail-2
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam thumbnail-3
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam thumbnail-4
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam thumbnail-5
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam thumbnail-6
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam photo-1
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam photo-2
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam photo-3

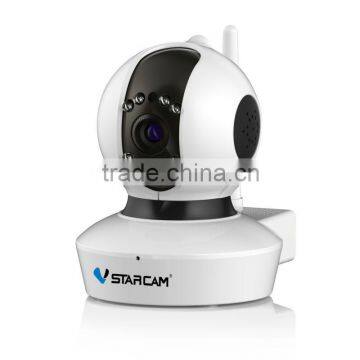

VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam photo-4
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam photo-5
VStarcam Home Security Camera 24 Hours Recording Motion Detection Alarm Kit Wireless Cam photo-6
US$ 27 - 35 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VStarcam
Model Number:
C7823WIP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name VStarcam
Model Number C7823WIP
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Vandal-proof

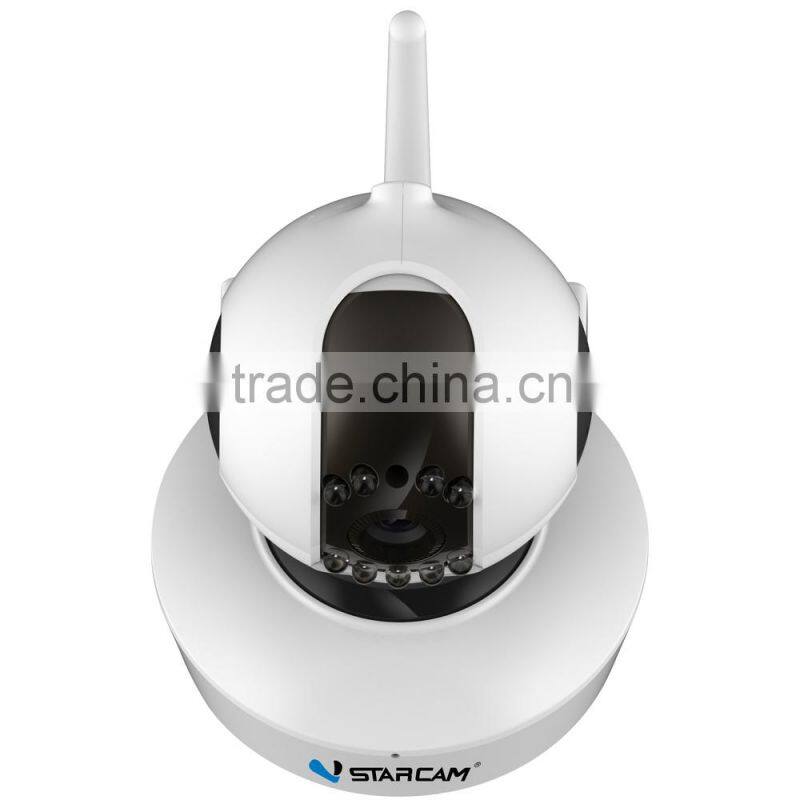

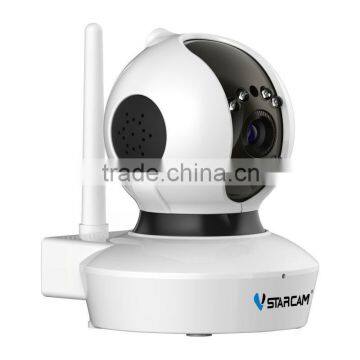

VStarcam home security camera 24 hours recording motion detection alarm wireless kit wireless cam





Specifications



                                                                                                       Model :C7823WIP
FeaturesSystem securityAccount, password authority management
Free DDNSFree DDNS, supports dynamic IP.
View by phoneSupport HD pic IOS, Android mobile view (iOS 4.3,Android OS 2.3 above)
Local Storagesupport up to 32GB MicroSD card ,24-hour loop recording.
Monitor AdvantageSupport PC computer monitoring, smartphone multi-pic view.
PnPPlug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3,Click online camera to view the camera.
Sever clusterUsing Amazon Cloud PnP servier cluster, intelligent application and super stable
UID TechnologyUID scan technology applied, easy to operate, and highly confidential.
Super Client1,4,9,16,25,36, 64,81-channel central management software, no user number limitation , centralized surveillance, remote record and playback, alarm email ect.
SystemOSEmbedded Linux OS
Control protocolONVIF 2.0 protocol, high interoperability
Video codingMulti stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture
Bit RateCBR/VBR, output bit rate range:128~4096kbps
ProcessorHi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor
VideoCompression FormatH.264 baseline profile@levels:3.1/Motion-JPEG
Frame rate30fps/24fps(720p)
Resolution720P(1280*720), VGA(640*480), QVGA(320*240)
Picture AdjustmentContrast, Brightness, Saturation are adjustable.
Sensor1/4 720p Progressive CMOS sensor
Minimum illumination0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)
SNR≥39dB
IR controlIR turned on: night vision view enabled, infrared Ray, ICR auto detect.                                                                             IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
Electronic shutter1/50s(1/60s)-1/100, 000s
CMOSsupport AWB, AGC, BLC
Lens/viewing angle

3.6mm @F1.4/56.14°

Night VisionNight visionDual IR-CUT Filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
AudioCompression formatADPCM/32kbps
Input1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone
Output1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W)
P/TP/TPan:270°,Tilt:70°

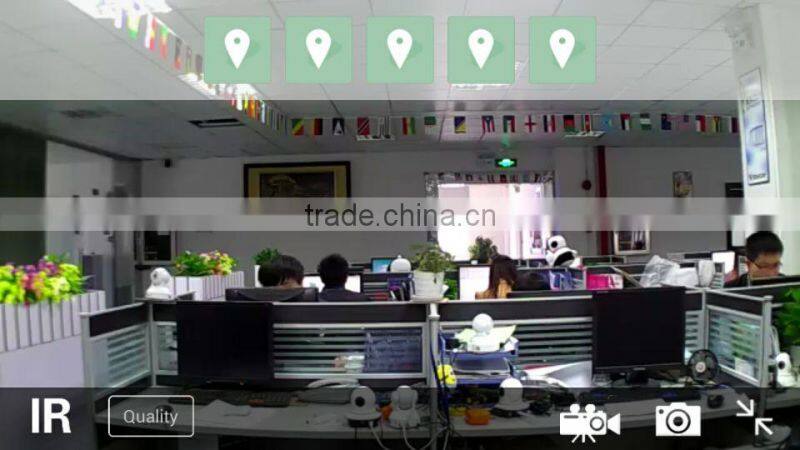

Preset Postionsuppor up to 15 preset postions
Networknetwork interface10Base-T/100Base-TX Ethernet interface
Network ProtocolTCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.
wireless network securityWPS encryption
Online visitorSupport 4 online visitors simutaneoursly
IP addressDynamic IP and static IP address
WIFIWIFI 802.11 b/g/n
Othershousing materialengineering plastics
Application environmentIndoor
Rated VoltageDC5±0.3V
Temperature-10~50 °C
Power consumptionrated power:3.5W(IR opening )/maximum power:7W(P/T working )
Package size98x105x120mm (L×W×H)
WeightGross Weight :295g(Note: in kind prevail)
AccessoriesPower adapter, user manual, warranty card, mounting bracket, screws.
AlarmMotion DetectionSupport motion detecting
System RequirementSystem configurationWin98 SE/ME/2000/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher
CertificateCertificateISO FCC CE RoHS
  Only for reference

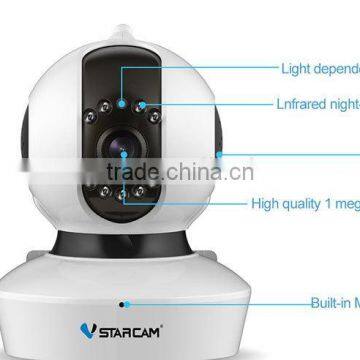

 More details of the IPCam :

VStarcam home security camera 24 hours recording motion detection alarm kit wireless camVStarcam home security camera 24 hours recording motion detection alarm kit wireless cam



Our Services

 VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam



Our Services



 •  OEM Service: We could offer OEM and ODM services for our clients.



 •   Delivery Time: Sample order 3-5 working days, bulk order 7-15 working days.



 •   Delivery Term: By Express(DHL/FEDEX/TNT/UPS),By air,By Sea.



 •   Quality Warranty: One year warranty.



 •   We provide 4BS service: best quality, best price, best delivery, best service.



 •   We have Sole Agents from different countries.





Company Information

 VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam





How to use?

So easily to set up

VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam

VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam VStarcam home security camera 24 hours recording motion detection alarm kit wireless camVStarcam home security camera 24 hours recording motion detection alarm kit wireless cam

VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam

 VStarcam home security camera 24 hours recording motion detection alarm kit wireless cam



Package optional including

1). 1x IP CAM
2). 1x WIFI Antenna

3). 1x User manual
4). 1x Network Cable
5). 1x Brackets
6). 2x Screws
7). 1x AC Adaptor ( EU, AU , US , UK standard for optional )
