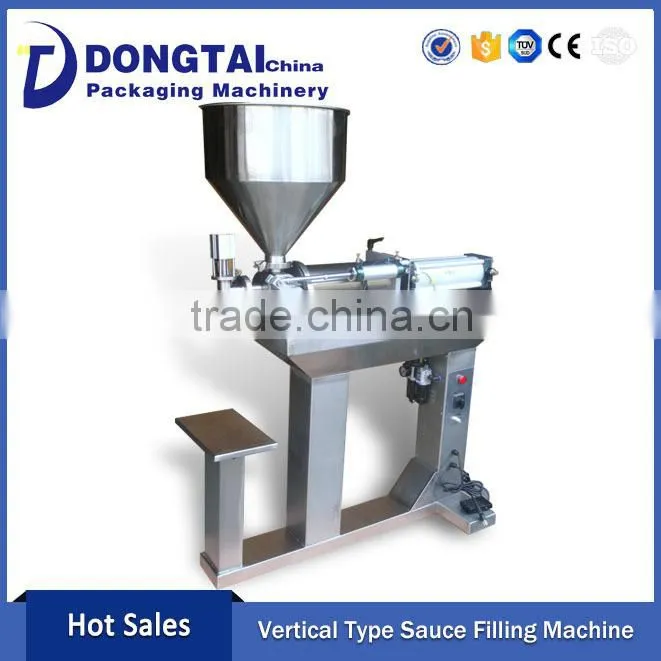

Vertical Type Paste Liquid Filling Machine
- 1000 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Chemical, Food, Medical | Packaging Type: | Barrel, Bottles, Pouch, Other, Barrel, Bottles, Pouch, Tube, etc. |
Packaging Material: | Glass, Plastic, Wood | Automatic Grade: | Other, Automatic/ Semi-automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | ≤2.5KW | Place of Origin: | Shandong, China |
Brand Name: | Dongtai | Model Number: | DTZY-l2 Vertical Type Paste Liquid Filling Machine | Dimension(L*W*H): | 600*800x*1900, 800*800*1900, 1000*800*1900 |
Weight: | ≤600KG | Certification: | ISO; CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Name: Vertical Type Paste Liquid Filling Machine
Machine: Vertical Type Paste Liquid Filling Machine
Model: DTZY-l2 Semi-automatic Vertical Type Paste Filling Machine
Application of Vertical Type Paste Liquid Filling Machine
Vertical type garlic paste filling machine is the ideal machine for paste filling.
It owns the reasonable design.
The series of vertical type garlic paste filling machine is widely applicable to different bottles in food, pharmaceutical and chemical industries.
This vertical type garlic paste filling machine is plunger type filler driven by servo motor and adopting the PLC programmable logic controller.
Features of Vertical Type Paste Liquid Filling Machine
A. High quality range
B. Using high grade components and cutting-edge technology.
C. The vertical type paste liquid filling machine is customized.
D. The vertical type paste liquid filling machine is adopted the servo system and ensuring the piston's motion stroke to achieve high precision.
E. Replace filling specification only need to change parameters on the touch screen, and the filling head change in position one Time.
F. Implement automatic bottle feeding.
G. The variable filling speed of vertical type paste liquid filling machine is adjustable.
H. Accurate dosing
Parameters of Vertical Type Paste Liquid Filling Machine
Vertical Type Paste Liquid Filling Machine
Heads of Filling: 4, 6, 8
Production Capacity (based on 100ml): ≤1000BPH, ≤1500BPH, ≤2000BPH
Suitable Bottle Diameter (mm): 20-65mm, H=180mm 20-120ml
Measure Precision: ±1%
Compressed Air Pressure: 0.6-0.8Mpa
Motor Power: ≤2.5KW
Overall Dimension (L*W*H) (mm): 600*800x*1900, 800*800*1900, 1000*800*1900
Weight: ≤600KG
Standard Export Packing for Vertical Type Paste Liquid Filling Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Package Site of Vertical Type Paste Liquid Filling Machine
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO. LTD is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
