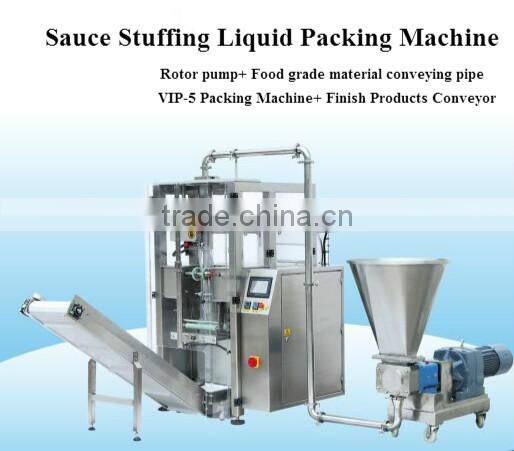

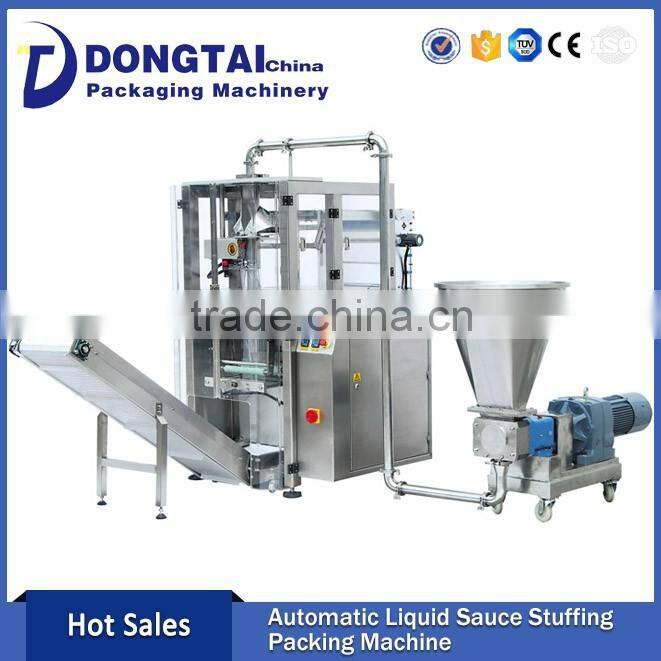

Sachet Packaging Machine for Sauce

Sachet Packaging Machine for Sauce photo-1
US$ 5,000 - 5,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, various sauce type products, viscous liquid, etc.
Packaging Type:
Bags, Film, Pouch, Other, Bags, Film, Pouch, various bags packing
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, various sauce type products, viscous liquid, etc.
Packaging Type Bags, Film, Pouch, Other, Bags, Film, Pouch, various bags packing
Packaging Material Wood, Other, Wood, Standard export packing
Automatic Grade Automatic
Driven Type Electric
Voltage 415V/50Hz/3phase
Power 2.5KW
Place of Origin Shandong, China
Brand Name Dongtai
Model Number DTVIP-5 Sachet Packing Sweet Bean Sauce Packing Machine
Weight 700kg
Dimension(L*W*H) 1580*1380*1990(mm)
Certification ISO9001; CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 Product Name: Sachet Packaging Machine for Sauce

Machine: Sachet Packaging Machine for Sauce
Model: DTVIP-5 Airless Type Bag Packing Machine

Scope of Application
This sachet packing machine for sauce is suitable for packing various liquid and viscous food, medicines and chemical products and so on. Such as fruit salad, tomato sauce, honey, edible oil, seasoning, vegetable juice, lotus seed paste, sweet bean sauce and so on. And at the sam time, this non food category products can be packed as well, like cream, cleaning agent, lubricating oil, industrial paste and so on.


Specifications of Sachet Packaging Machine for Sauce

Model
DTVIP-5
Filling Capacity
1 liters - 5 liters
Packing Speed
5-40 bag / min
Film width
350mm-520mm
Bag width
160mm-250mm
Film coil diameter
300mm
Film thickness
65 microns -100 microns
Packaging film
all kinds of heat sealing compound film
Power
2.5KW
Voltage
415V/50Hz /3phase
Gas consumption
3MPA
Machine Weight
700kg
Product packaging specifications
1580*1380*1990 (mm)

Main Features of Sachet Packaging Machine for Sauce

All stainless steel structure, so it is very durable and can be ensure hygiene
Simple operation type, easy to operate, so don't need to hire professional and technical personnel.
Imported PLC control, user-friendly interface, greatly improve the control accuracy, reliability, intelligence and adjustment range
Equiped with Level sensor monitoring, easy to adjust the length of bag
Photoelectric switch automatic tracking of color film so that it can keep the consistent with the speed of the pump to ensure accuracy
Bilateral tension membrane more quickly and stable and less friction
Adopted Various imported high-quality components so that ensure the equipment's high quality and high performance.
Don't need additional ejector or vacuum pumping device, it can be produced without air.

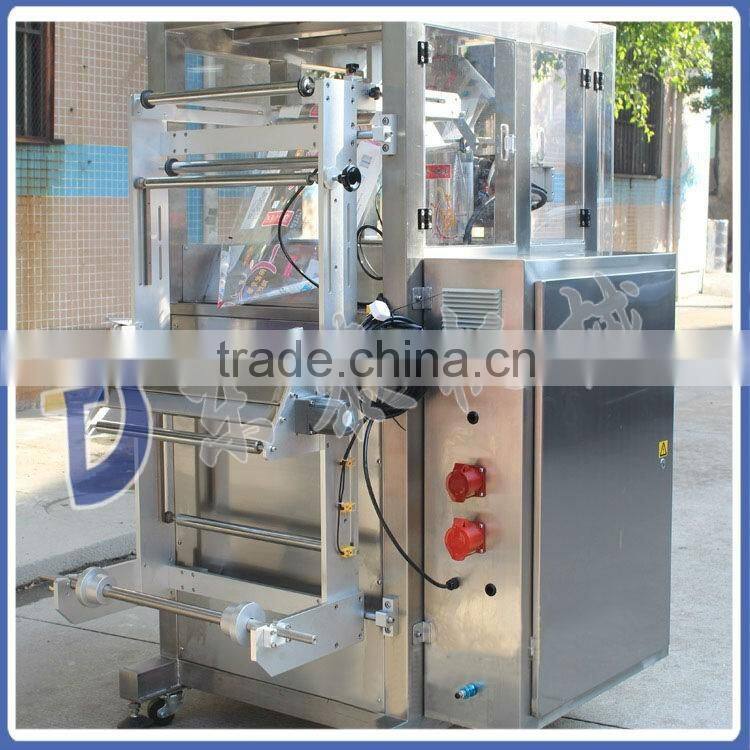

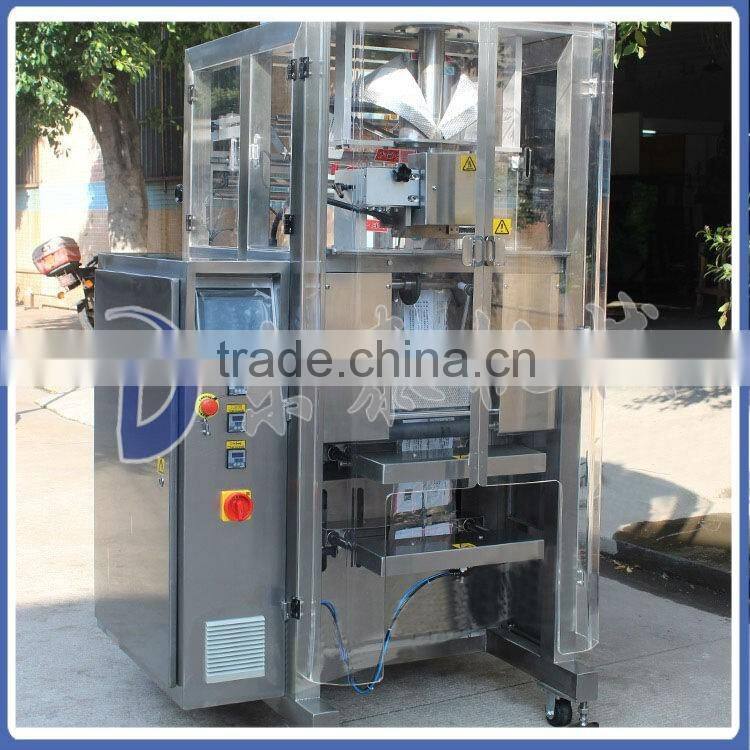

Detailed Images
Packaging & Shipping

Standard Export Packing for Sachet Packaging Machine for Sauce

A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.

Compnay Information

JINAN DONGTAI MACHINERY MANUFACTURING CO., LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.

Our business involves various markets all over the world, in many fields with our excellent product performance.Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.

Other Products
Various packaging machine, packaging related machinery, packing machine, semi-auto filling machine, automatic liquid filling machine, antifreeze filler, paste lotion filler, magnetic pump manual liquid filling machine, coding machine, sealing machine, electromagnetic induction sealing machine, labeling machine, shrinking machine, granule packing machine, powder packing and filling machine, vacuum packaging machine, etc.

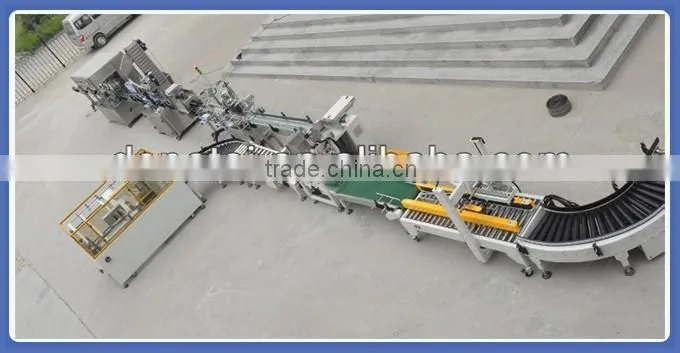

Filling Line

Our Services

We as a manufacturer are specialized in all kinds of packaging machinery equipment.
Good experience of many years and to be devoted to the packaging industry for food, medicine, daily chemical, washing, beverage and other industries packaging, etc.  No damage to human factors, all products one year warranty, life-long maintenance. If you have any problems, don't hesitate to contact us, please.

We can in a timely manner to provide customers with comprehensive after-sale service.


 Dongtai has a highly sophisticated technical talent, has a high- quality team

Sincere service for your dedicated
