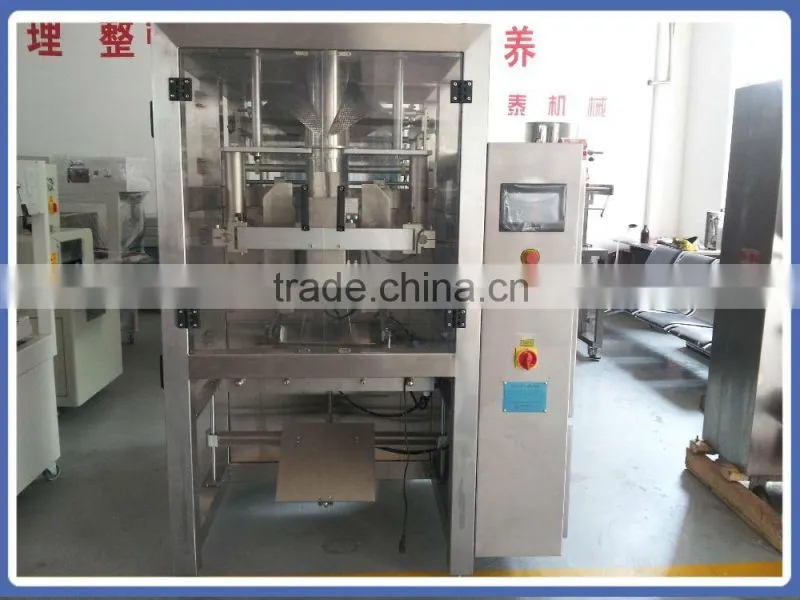

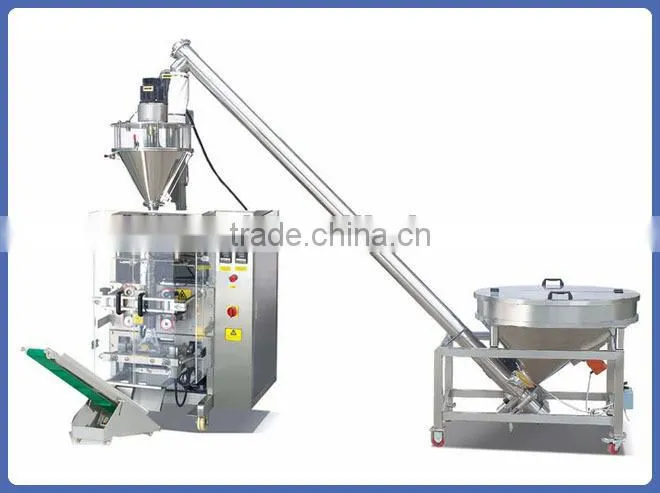

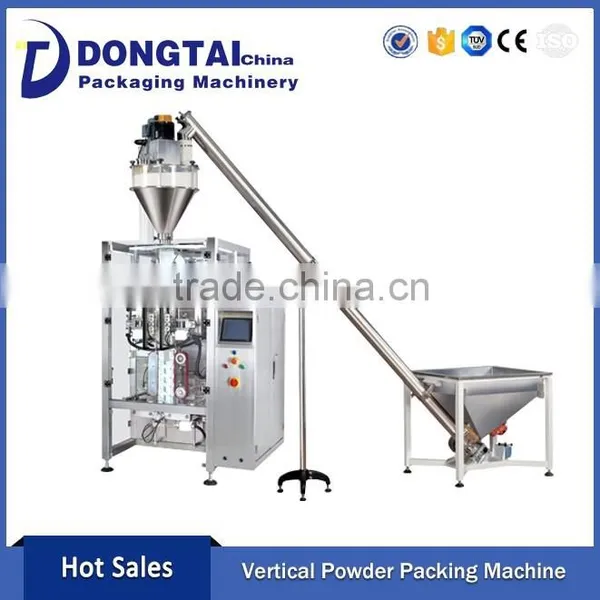

Product Name: Automatic Powder Packaging Machine
Brief instruction
This newest model of automatic powder packaging machine was designed based on our long-range experience accumulation from DCS-2B, in terms of the National GMP Standard. The design, into which was integrated the 21st century’s newest technical conception, is more reasonable, compact and consistent. Can feeding, weighing, filling and failure pack detecting & deleting can be done automatically. The machine is suitable for packaging powdery & grainy product, for instance, milk powder, rice powder, monosodium glutamate, solid beverage, dextrose, etc.
Main features:
The whole automatic powder packaging machine is made of stainless steel material except of motor, in particular the application of GMP, food sanitation certification, and suitable for the amyctic materials.
Touch-screen man-machine interface: work stability, anti-interference, high-precision weighing, easy and intuitive to operate. Stepless adjust the packaging weight. Change the working parameter at any time, easy to control.
Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance.
Stirrer’s driven by the Taiwanese motor reducer: low noise, long life, maintenance-free life.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material
Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, and the discharge material mouth with the dust collector to protect the workshop dnvironment .
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Specification of Automatic Powder Packaging Machine
| Metering model | Auger rotation filling |
| Size of the container | Cylindrical containerφ50—160MM High 50-350MM |
| Packing weight | 1-6000g (The screw attachment is to be changed) |
| Packaging accuracy | ≤1% |
| Filling rate | 20-50 cans/min |
| Power supply | 3P 380V/1P 220V |
| Total power | 2KW |
| Air pressure | 6-8kg/ cm2 |
| Use tolerance | 0.2m3 /min |
| Total weight | 450kg |
| Overall Dimensions | 2500×1250×2300MM |
|
Hopper volume |
50L |
| Filling Packaging | various powder |
| Packaging | various cans, bag, sachet, etc. |
Standard Export Packing for Automatic Powder Packaging Machine
A. Cover by PVC film + fumigated wooden case;
B. Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high-quality team, can in a timely manner to provide cusotmers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO. LTD is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturer of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holand, AE, Canada, Brazil, Russia, Austrilia, India and so on.On the basis of excellent quality and competitive price, you will be surely get a big success in your industry.
