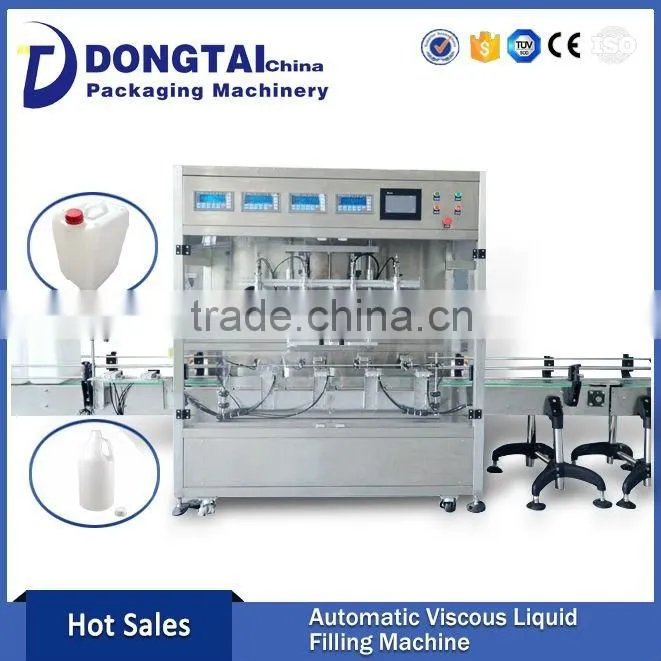

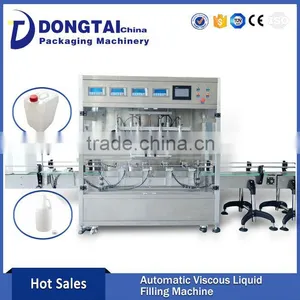

Product Name: Autoamtic Weighing Filling Machine
Model Type: Full Automatic Oil Bottle Weighing Filling Machine ( Flowmeter Type )
Do you know which filling machinery equipment is the best in China? Our Jinan Dongtai company supply various oil filling machines ,like liquid filling machine, paste lotion filling machine, cooking oil filling machine, piston type massage oil filling machine, plunger type filling machine, electric and pneumatic type oil filler, big barrels oil filling machinery equipment, ect.
Introduction and Application
Autoamtic Weighing Filling Machine is a kind of full automatic oil filling machine, it is main part of oil filling production line. This series of 20 liter bottle filling machine are widely used in filling a variety of oils and viscous liquids, such as peanut oil, blend oil, rapeseed oil and other edible oil filling.The 20 liter bottle filling machine can be produced with different filling heads corresponding with different filling speeds.
Technical Parameters of Autoamtic Weighing Filling Machine
Name Autoamtic Weighing Filling Machine
Type Flowmeter type filling and Full automatic filling equipment
Filling speed (Adjustable) SYFM-2: 400~600 (barrels / hour)
SYFM-6: 700~1000 (barrels / hour)
SYFM-8: 1200~1700 (barrels / hour)
SYFM-10: 1400~1800 (barrels / hour)
SYFM-12: 1500~2000 (barrels / hour)
Different heads numbers, this filling speed is different. filling speed can be adjustable
Filling capacity 1-6L/ 0.1-1L/ >6L
Filling accuracy ± ≤ 0.3% FS
Power Supply 220/380V 3 phase +Earth Wire, 50 Hz
Pressure 0.5-0.8Mpa
Humidity <98 %
Filling Volume it can be adjustable and set by control panel
Ambient temperature 0~40°C
Principle Features Of Autoamtic Weighing Filling Machine
1.the advantage of flowmeter way: The adjustment in dosage is convenient and quick, the volume only need to be set on the touchscreen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
2.the accuracy of filling: instead of the tranditional computing type of flowmeter -- through pulse generator, now Autoamtic Weighing Filling Machine promoted by our company, adopting rotary encoder is more accurate.
3.the speed of filling: instead of the traditional power delivery -- pressure artesian flow, our oil bottle filling machine adopting frequency converter to adjust the speed of filling,the efficiency highly raised. The speed of oil bottle filling machine can be arbitrarily adjusted on panel.
4.the adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touchscreen.
Autoamtic Weighing Filling Machine carries on automatic conpensation system when error occurs.
5.each filling head’s speed of 20 liter bottle filling machine can be set on touchscreen.
nveyor belt of 20 liter bottle filling machine be adjusted by frequency conversion
Device Configuration of Autoamtic Weighing Filling Machine
The main engine of Autoamtic Weighing Filling Machine is made of stainless steel.
The parts contact with material is made of 304 stainless steel
Janpan Keyen Ce sensor
France Schnaid relay element
Taiwan Airtac pneumatic element
Mitsubishi PLC and frequency converter
Standard Export Packing FOR Autoamtic Weighing Filling Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
We as a manufacturer are specialized in all kinds of packaging machinery equipment.
Good experience of many years and to be devoted to the packaging industry for food, medicine, daily chemical, washing, beverage and other industries packaging, etc. No damage to human factors, all products one year warranty, life-long maintenance. If you have any problems, don't hesitate to contact us, please.
We can in a timely manner to provide customers with comprehensive after-sale service.
Dongtai has a highly sophisticated technical talent, has a high- quality team
Sincere service for your dedicated
Welcome to JINAN DONGTAI
Jinan Dongtai Machinery Manufacturing Co., Ltd.
our factory is a professional packaging machinery manufacturer over seventeen years and one of Chinease Gold Suppliers in china.Brief Introduction
Our business involves various markets all over the world and in many fields is with our excellent product. Now we have been one of the biggest manufacturer of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holand, AE, Canada, Brazil, Russia, Austrilia, India and so on.On the basis of excellent quality and competitive price, you will be surely get a big success in your industry.

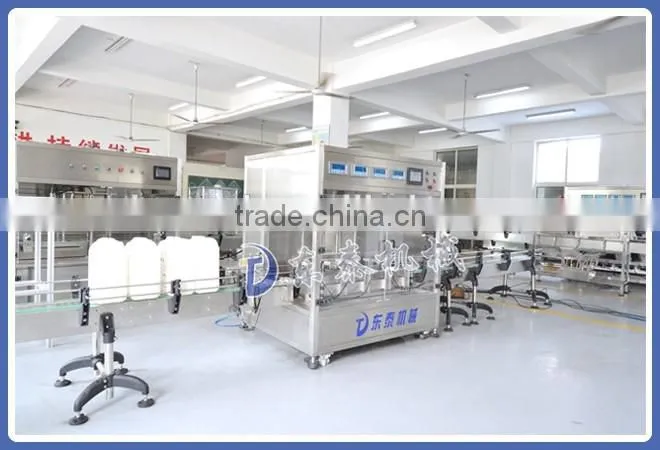

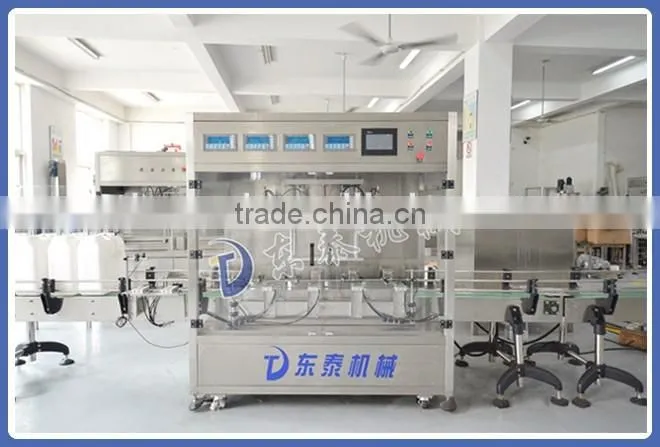

Our Jinan Dongtai Workshop
For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Other Products
Our equipment is all adopted the advanced technology and Impoted famous brand raw materials at home and aborad.
At present, widely application various fields, such as various sachet packaging machines, packaging machine for liquid, sauce packing machines, beverage packing machines, vertical type packaging machines, granule packing machines, powder packing and filling machines, vacuum packaging machine, filling capping machines, bottle filling machines, semi-auto filling machine, automatic liquid filling machine, antifreeze filler, magnetic pump manual liquid filling machine, paste lotion filler, coding machine, sealing machine, electromagnetic induction sealing machine, labeling machine, shrinking machine, filling line, etc.
Automatic Packaging Machinery Equipment Show
Glass Bottle Automatic Piston Filling Machine Show
Automatic Bottle Filling Machine
Various Patents Technology
Capping Quickly
Filling production line included: Filling Machine + Capping Machine + Labeling Machine + Coding Machine + Shrinking Machine + .......
