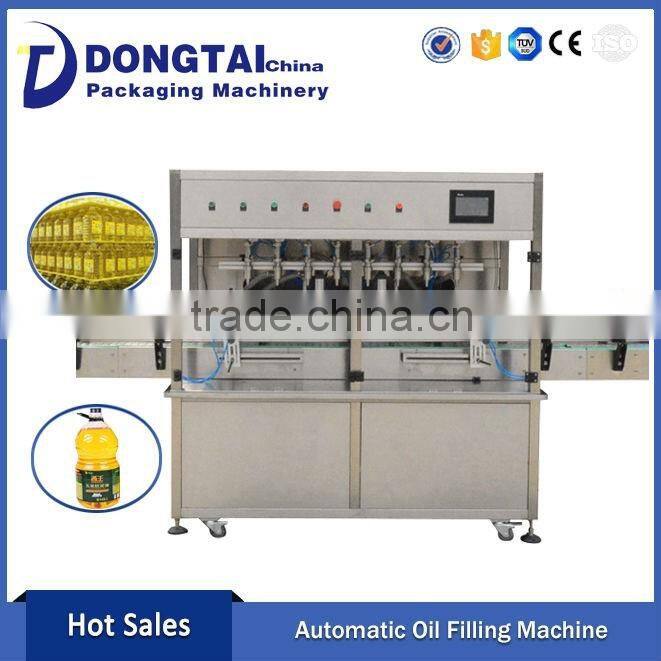

Product Name: Automatic Safflower Oil Filling Machine
Technical Requirements |
Automatic filling: 1-5L oil barrel, bottle |
|
Principle features |
1.Flowmeter way: 1)one flowmeters equipped with one pumps to avoid the traditional type (one pump for many flowmeters) uneven pressure, low accuracy and splash problem of the last finished filling nozzle; 2)Adjustment in dosage is more convenient and quick: volume can be set on touchscreen directly, considered that the lube oil is different in density in various temperature resulting that the volume setting is also different, so we have added an automatic temperature-compensated system. 2.Filling accuracy: Instead of the tranditional computing type of flowmeter through pulse generator, now promoted by our company, adopting Rotary Encoder, more accuracy. Plus 1(1) 3.Filling speed: Instead of traditional power delivery--pressure artesian flow, our machine adopts Frequency Converter to adjust the speed, one pumps equipped with one frequency converters, the efficiency highly raised. The speed can be arbitrarily adjusted on panel.
4.Adjustment: Promoted by our company, the weight of filling can be set on the touchscreen.The equipment adopts automatic compensation system when error occurs. 5.each filling head’s speed of machine can be set on touchscreen. nveyor belt be adjusted by frequency conversion |
|
Device Configuration |

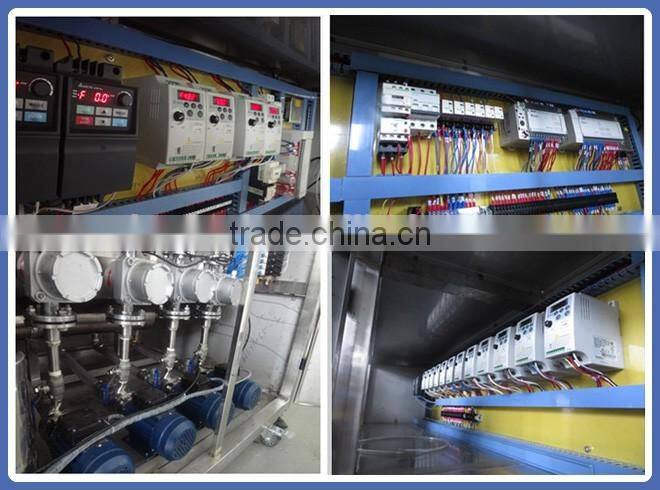

The main engine is made of stainless steel. The parts contact with material is made of 304 stainless steel. Janpan Keyen Ce sensor France Schnaid relay element Taiwan Airtac pneumatic element Mitsubishi PLC and frequency converter
|
|
Acceptance Parameters |
Filling Volume 1-5L 5-30L Filling Heads 2/4/6/8/10/12 heads Filling Capacity 400-2800 b/h Filling Accuracy ±0.2%g Noise Level lower than 80 db Filling TypeFlowmeter Qualification Rate ≤ 98 % |
|
Technical Parameters |
Voltage: 380/220V±15%, 3 phase +Earth Wire, 50 Hz Compressed Air: Dry&Clean Air Pressure 0.5~1.0MPa Humidity: <98 % Ambient temperature: 0~40℃ |
DETAILS:
Samples:
Standard Export Packing
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high-quality team, can in a timely manner to provide cusotmers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO. LTD is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturer of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holand, AE, Canada, Brazil, Russia, Austrilia, India and so on.On the basis of excellent quality and competitive price, you will be surely get a big success in your industry.
Jinan Dongtai Workshop and Main Team

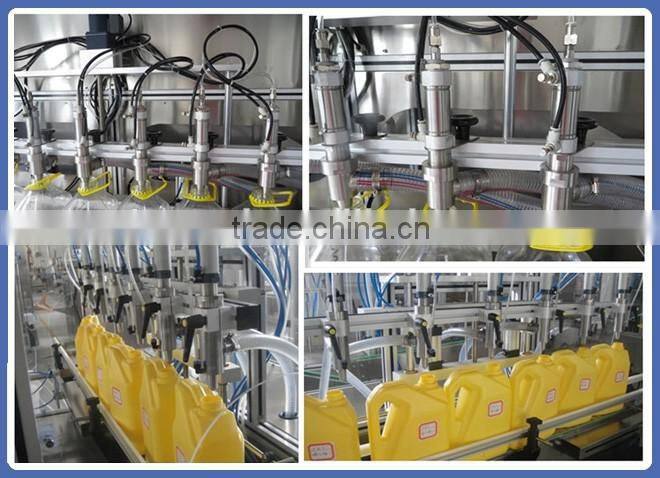

Filling Line:
Export scope:
Various CE and ISO Certification
A. Is it the factory?
Yes, of course, so don't be worried this after-sale service. all products one year warranty, life-long maintenance.
B. How about this filling capacity ?
About 1L-20L, you could choose according your production. And we can customize it for you according to your bottle size, bag sizes, filling volume and filling materials, etc.
Customized services, targeted, more applicable.
C. What time is delivery time?
Automatic Equipment: within fifiteen working days to twenty working days after order confirmed
Semi-automatic Equipment: with seven working days after order confirmed
Special circumstances please firstly contact us.
D. How about this equipment quality?
It's very nice, because this equipment is belong to export type products, is a famous brand and meet various certifications, like CE& ISO certification, etc. Raw materials, electrical components, technology is to use well-known brands at home and abroad.
A high degree of automation, strong maneuverability, back to the vacuum drip tight, reduce resource waste, easy to clean, high efficiency.
Stable performance, durable in use. Life span: Usually more than ten years or even more.
Fast in running,high accurate filling.
When inquiry, please provide detail packaging product name, volume range & packaging speed requirement. It will be convenient for us to recommend the most suitable machine to you. Any special, our company can be professional design to meet your requirements.
Your satisfaction is our greatest Pursuit. Believe Your Choice- Jinan Dongtai.
So What are you waiting for? Contact us, dear customers !
