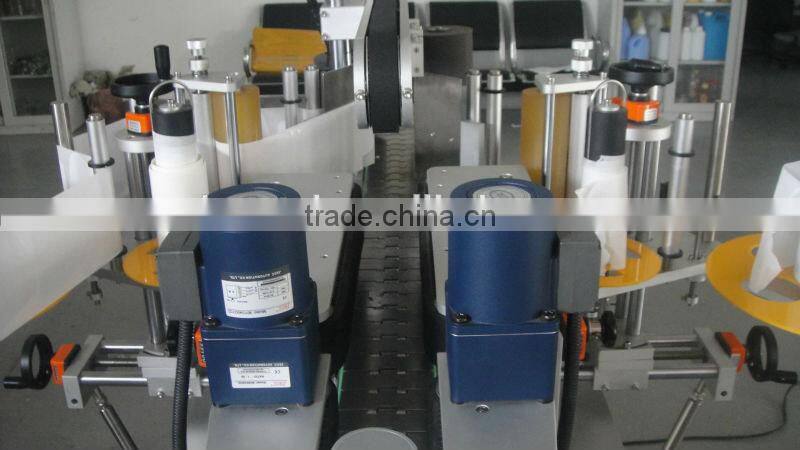

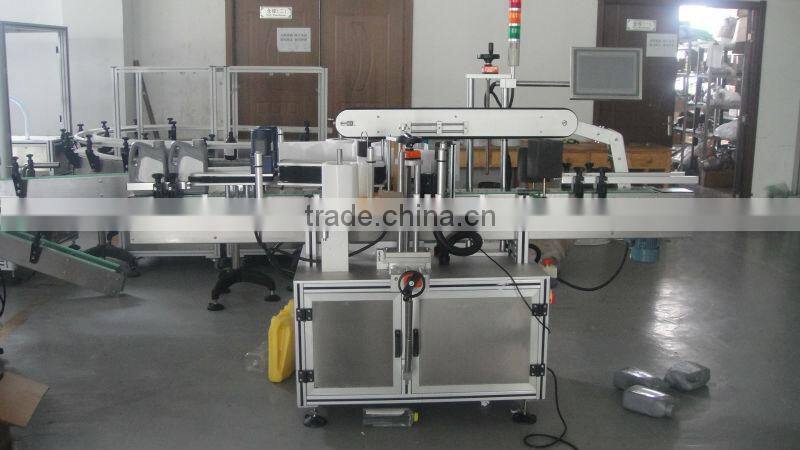

Product Name: Lube Oil Flat Bottle Labeling Machine
Mode: DTB-82CS
Introduction of lube oil flat bottle labeling machine:
This automatic bottle labeling machine is widely used in food, toys, daily chemical, electronics, medicine, metal, plastic, printing and other industries; such as flat shampoo bottles, flat medicine bottles and so on. It adopts standard PLC, touch screen, standard sensor electronic control system, human computer interface in Chinese and English notes and improve the function of fault tips, operational guidance functions,
troubleshooting instructions; easy to use and easy maintenance; no product non-labeling, non-sticker auto-correction and automatic detection function. The automatic bottle labeling machine can be also matched with
batch coder or printer coder function.
Features of alube oil flat bottle labeling machine
1. The automatic lubricating oil bottle labeller is applicable to square bottles or flat bottles in double mark or single mark.
2. This shape belt is able to be inclined.
3. The pressure between the active axle and the press roller can be adjusted, so the running direction of the
label can be adjusted freely. In common the label is only pressed flexibly, so it acts without a certain orientation.
4. The labeling head adopts the structure of the double press rollers. It guarantees that the label is pulled tightly but is not broken because of the underneath paper die-cutting. The separated clutch makes the strain more balanced.
5. The Chinese human interface and the online helping system make it easy to operate the machine for the
workers. The press belt gear into the main transporting line, so it makes the transporting lines work synchronous absolutely.
6. The automatic lubricating oil bottle labeller applies the famous server motor, so it realizes real closed loop controlling and it avoids the phenomenon of “the blind man walks” when the machine apply the stepper motor.
The high accurately subdividing and the inside encoder guarantee that it is very accurate to label. The acceleration and the clutch raise are set by the computer.
Technical parameter of lube oil flat bottle labeling machine
Labeling speed |
0~20m/min |
Labeling precision |
±1mm |
Product range |
Flat bottle: thickness 20-90mm length 50-200mm Height 100-250mm Round bottle: diameter 35-90mm |
Label range |
Height is 20-80mm, length is 20-200mm |
Capacity |
Flat bottle is 50-120bottles/min, Round bottle is 15-30bottles/min. |
Label error |
±1mm |
Air pressure |
0.5-0.8MPa |
Operating voltage |
220V/50Hz |
Standard Export Packing for lube oil flat bottle labeling machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO. LTD is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
