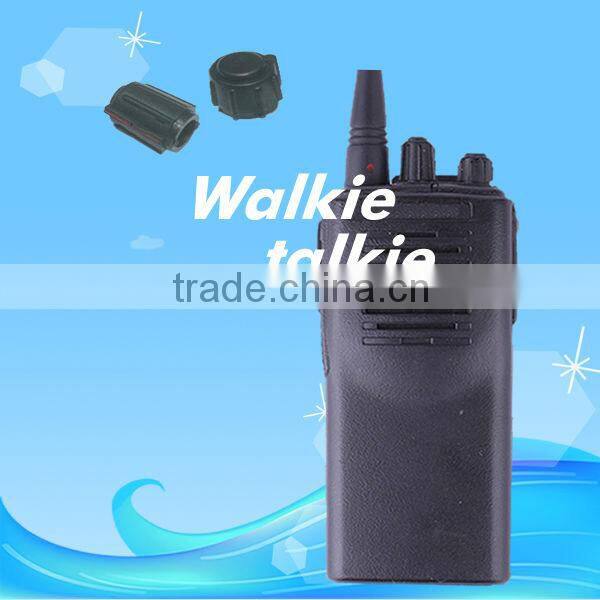

TK-3107 16 Channels UHF Walkie Talkie

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

ZRK

Model Number:

TK3107

Shenzhen Inrico Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name ZRK

Model Number TK3107

Type Handheld

Dimensions 58 x 125.5 x 35 mm with battery

Frequency Range 400-470MHz

Storage Channel 16

Talk Range 5-8

Specifications

TK-3107 UHF Walkie Talkie
1.Freq.:400-440/440-480MHz
2.CTCSS/DCS
3..Channel :16

TK-3107 16 Channels UHF Walkie Talkie

Description:

1. Frequency range: 400-440/440-480MHz

2. Channels:16
3. Output power: 4W/1W
4. Built in CTCSS/DCS

5. Wide-narrow channel bandwidth

6. Time-Out Timer (TOT)

7. Busy Channel Lockout (BCLO)

8. Two colore LED indicator

9. Low battery alert

10. Battery save

11. MIL-STD 810 C/D/E

Technology Specification:

	TK-2107	TK-3107
GENERAL
Frequency Range Type 1 Type 2 Type 4	136 ~ 174 MHz	440 ~ 480 MHz 400 ~ 440 MHz
Channels	16 channels
Channel spacing Wide/Narrow	25 kHz or 12.5 kHz
PLL step	5 kHz, 6.25 kHz
Battery voltage	7.5 V DC ± 20 %
Battery life KNB-15A (1100 mAh)	More than 8 hours on 5-5-90 duty cycle
Operating temperature range	30º C ~ +60º C
Frequency stability (-30º C ~ +60º C)	±0.0005%	±0.00025%
Antenna impedance	50 Ω
Channel frequency spread Type 1 Type 2 Type 4	24 MHz 14 MHz	20 MHz 20 MHz
Dimensions (W x H x D) [projections not included]	58 x 125.5 x 35 mm with KNB-15A battery
Weight (net)	380 g with KNB-15A battery, antenna and belt hook
RECEIVER
Sensitivity (12 dB SINAD) Wide/Narrow	0.25 μV/0.28 μV
Selectivity Wide/Narrow	70 dB/60 dB
Intermodulation distortion Wide/Narrow	65 dB/60 dB
Spurious response	65 dB	60 dB
Audio output	500 mW with less than 10% distortion
TRANSMITTER (Measurements made per EIA-152C)
RF power output	5 W	4 W
Spurious response	65 dB
Modulation Wide/Narrow	16KØF3E/11KØF3E
FM noise Wide/Narrow	45 dB/40 dB
Audio distortion Wide/Narrow	Less than 5%
