New Products First Grade Locking System dc Gear Motor

New Products First Grade Locking System dc Gear Motor thumbnail-1
New Products First Grade Locking System dc Gear Motor thumbnail-2
New Products First Grade Locking System dc Gear Motor photo-1
New Products First Grade Locking System dc Gear Motor photo-2
US$ 1 - 5 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Connmotor
Model Number:
LS01-F13
Contact Supplier Request Quote Chat Now
Connaught Motor (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Connmotor
Model Number LS01-F13
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Sex Toys, Sex Machine
Certification ROHS, Other, ROHS, Reach
Type Gear Motor
Torque 1386g.cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Totally Enclosed
Speed(RPM) 58
Continuous Current(A) 284mA
Output Power 0.62w
Voltage(V) 1.5V-13V
Efficiency IE 1
New products First Grade locking system dc gear motor

micro gear motor

1, Operating Voltage: .1.5V-13V
2  Reduction Ratio:  213

3, Typical application: Electric lock, Electric switch, The robot



We can send samples first, then you can check our quality.



Specifications of locking system dc gear motor:



Model         Reduction Ratio
Voltage No Load At Maximun Efficiency Stall
Using Range The Rated
Speed Current Speed Current Torque Power Torque Current
r/min mA r/min mA g.cm W g.cm A
LS01-F13-213 1.5~4.5V 3.0V 58 284 44 894 1386 0.62 5750 2.81 213
1.5~6.0V 6.0V 62 280 47 881 1614 0.78 6690 2.77 213
4.5~13.0V 12.0V 60 281 45 863 1884 0.87 7668 2.65 213

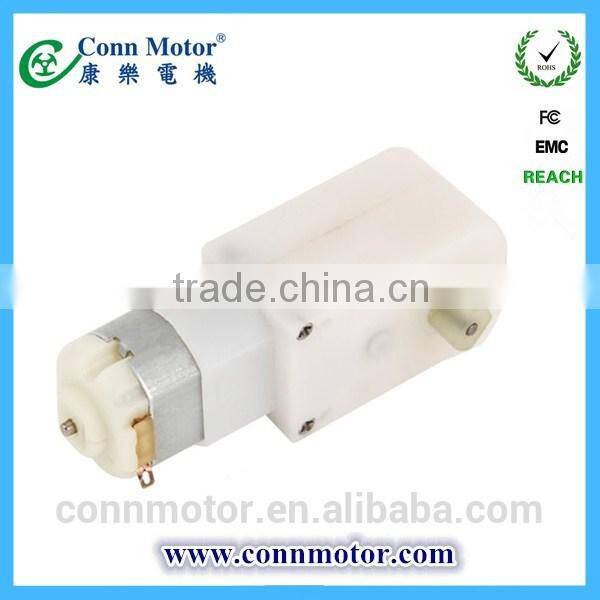

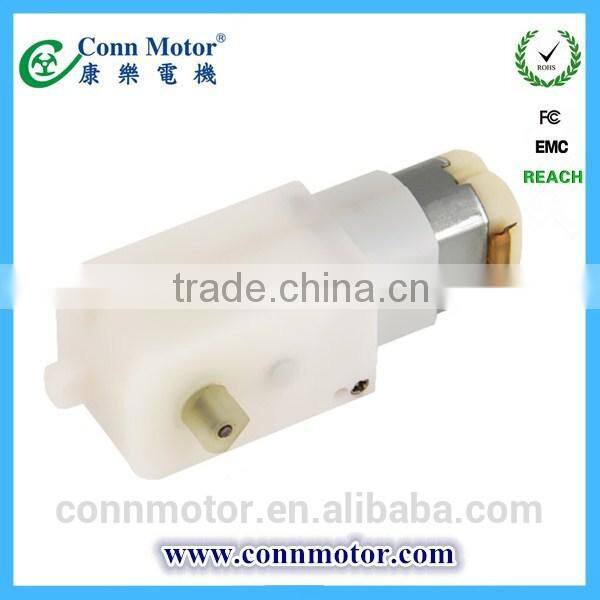

Pictures of locking system dc gear motor:

New products First Grade locking system dc gear motor

New products First Grade locking system dc gear motor



  Working principle of Gearxbox

Gearbox is used to transfer rotation and torque from motor to working machine,the function is

to decrease speed by gears and increase torque.

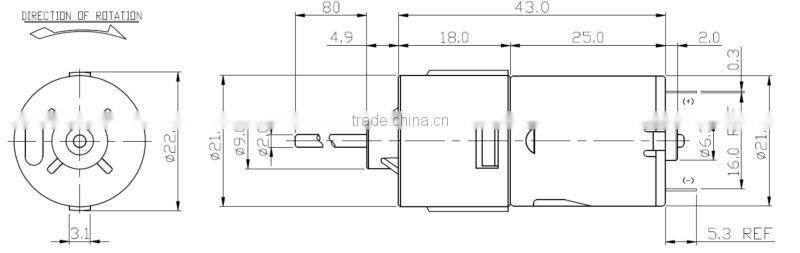

  Outline Drawing

 New products First Grade locking system dc gear motor

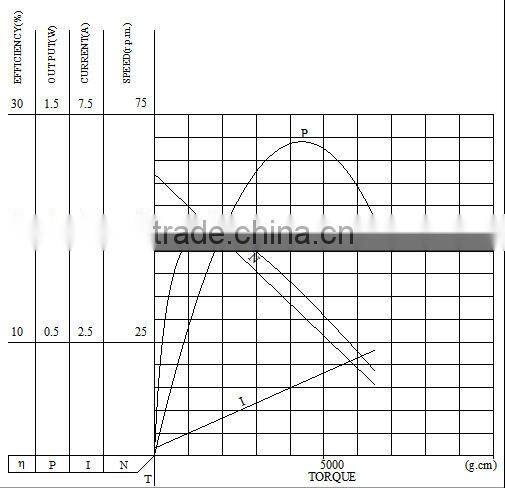

  Performance Curve

LS01-F13-213 3.0V

New products First Grade locking system dc gear motor

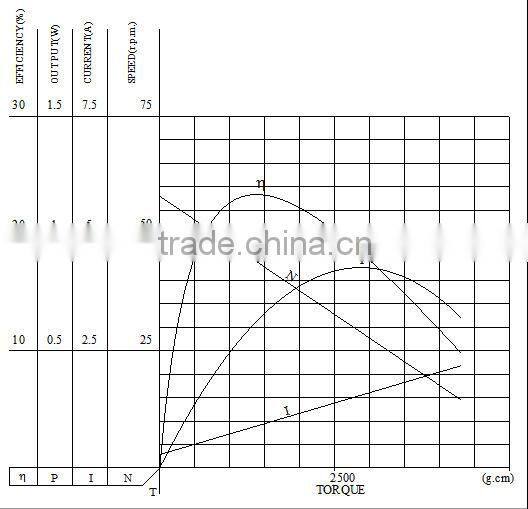

LS01-F13-213 6.0V

 New products First Grade locking system dc gear motor



  Typical Application



Our range of products are usually utilized by the purposes below:

Sports/Fitness equipment: treadmills, magnetic drive bikes, and products with related purposes.

Health care equipment: massaging machines, massaging chairs, vibrated massaging machines,

                                            hospital beds, adjustable spine lumbar supporting equipment, and

                                            rehabilitation treatment machines.

Home Appliance: air fresheners, automatic floor cleaner, and electric cradles.

 Various machines: automatic vending machines, food processors, wrapping machines, stage

                                     revolving machines, electric pumping machines, rewinding machines,

                                     and coffee machines.

Furniture: computer tables, electric mahjong tables, electric grid iron supports, motorized curtain,

                    and automatic blinds.

Security equipment: warning lights, anti-theft electronic locks, safety equipment, and sirens/alarms.

Arcade machines: arcade game machines.

Vehicle: electric scooters, and electric bicycles

Constructions: roller shutter doors.

Robots: robotic arms, and robots.

Tools: power tools.

Factory use: conveyors.

Others: instruments, satellite antennas, card readers, automatic flock feeders, teaching equipment,

               automatic valves, paper shredders, parking equipment, ball dispensers,

               cosmetics & cleaning products, and motorized displays.



   About us



Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality of

products provided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates

are granted to our products (depending on each product). We also have many intellectual copyrights.

We seek for value co-creation with our customers.

Welcome to have a cooperation with us.

New products First Grade locking system dc gear motor



   Work flow



 New products First Grade locking system dc gear motorNew products First Grade locking system dc gear motor





  Customized Capability



If your requirements are not on our lists provided below, we are able to design, adjust,

and manufacture the motors according to your requirements.



Motor Voltage Range : 1 to 220V DC as needed

Motor Speed Range: as customer's needed

Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.

Motor rotation can be CW or CCW



Any question, we would response quickly!
