3V Door Open Motor High Torque Flat Motor 3V DC Low RPM Gear Motor

FOB Price

US$ 3 - 5 / Piece

500 Pieces(Min. Order)

Port Shenzhen HK
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Connmotor
Model Number	12GB-N20	Usage	Home Appliance, Other, Home Appliance, Electronic door locks, Electronic switch, Robot etc.
Certification	ROHS, Other, ROHS, Reach	Type	Gear Motor
Torque	0.1-11kgcm	Construction	Other, Permanet magnet gear motor
Commutation	Brush	Protect Feature	Totally Enclosed
Speed(RPM)	adjustable	Continuous Current(A)	adjustable
Output Power	adjustable	Voltage(V)	3V-24V
Efficiency	IE 1

Product Description

Specifications

permanent magnetic door open gear Motor
1.5V-24VDC geared motor
1-1600rpm,ratio10-1000
torque 0.1-11kgcm

Production Descriptio

3V Door Open Motor High Torque Flat Motor 3V DC Low RPM Gear Motor

Reduction ratio: 1:17-1:800

Voltage: DC1.5V-24V
LOAD SPEED :1-60RPM
TORQUE:0.1-1.2N.m

Model	Voltage		No Load		At Maximun Efficiency				Stall		Reduction Ratio
			Speed	Current	Speed	Current	Torque	Power	Torque	Current
			r/min	mA	r/min	mA	g.cm	W	g.cm	A
12GB-N20-50	1.5~6.0V	3.0V	242	56	211	120	56.3	0.1	444.2	0.595	50
12GB-N20-100	3.0~9.0V	6.0V	121	40	106	105	105.0	0.1	829.2	0.580	100
12GB-N20-250	3.0~10.0V	9.0V	48	32	42	97	262.5	0.1	2072.9	0.545	250

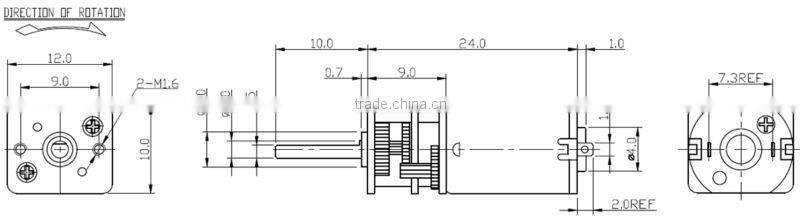

Outline Drawing

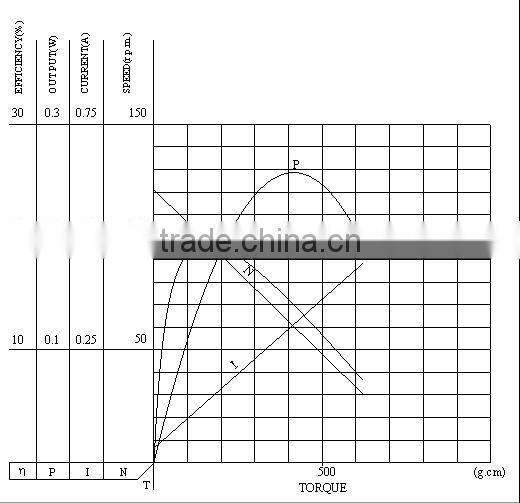

Performance Curve

Typical Application

Our range of metal gear motor are usually utilized by the purposes below:

Labal printers,auto shutter,automatic stabilized voltage supply,grill,oven,cleaning machine,garbage disposers,household appliances,slot machines,money detector, automatic actuator,coffee machine,towel disposal,lighting,coin refund devices,peristalticpump.

About us

Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality of

products provided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates

are granted to our products (depending on each product). We also have many intellectual copyrights.

We seek for value co-creation with our customers.

Welcome to have a cooperation with us.

Our Team

Some equipments

Work flow

Customized Capability

If your requirements are not on our lists provided below, we are able to design, adjust,

and manufacture the motors according to your requirements.

Motor Voltage Range : 1 to 220V DC as needed

Motor Speed Range: as customer's needed

Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.

Motor rotation can be CW or CCW

Any question, pls contact us freely!
