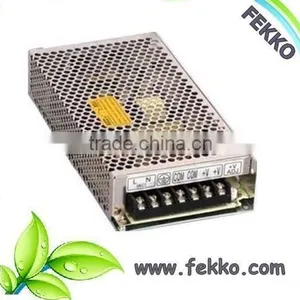

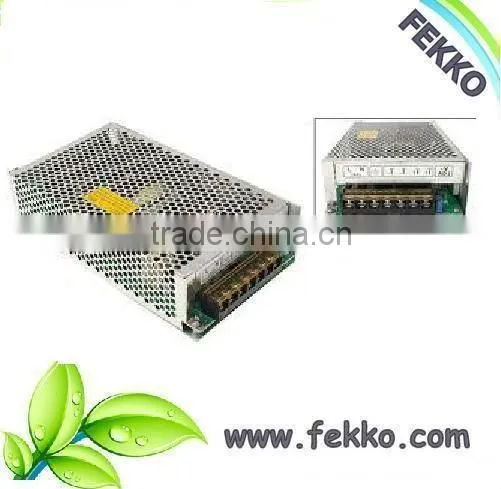

Help CenterMetal Cover 60W 12V 5A Switching Power Supply
Related Products
-
360W 12V 30A High Quality Switching Power Supply/AdapterUS$ 10 - 20MOQ: 100 Pieces -
300W High Quality Switching Power SupplyUS$ 16.5 - 16.6MOQ: 100 Pieces
-
240W High Quality Switching Power SupplyUS$ 8 - 16MOQ: 100 Pieces
-
Metal Cover 180W 12V 15A Switching Power SupplyUS$ 6 - 12MOQ: 100 Pieces
-
150W 12V 12.5A Switching Power SupplyUS$ 6 - 12MOQ: 100 Pieces

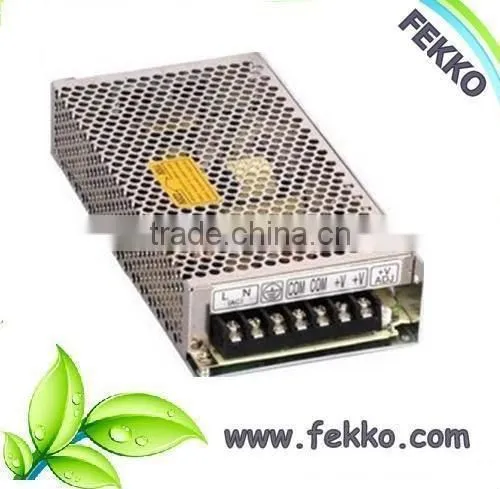

60W Metal cover Switching power supply
Features: | ||
Protections: Short circuit/Overload/Over Voltage/Over Temperature | ||
100% full load burn-in test | ||
Certificate: CE,UL,FCC, ROHS | ||
One year warranty | ||
Cooling: By Convection | ||
MTBF: Min250Khrs | ||
Efficiency: 80% | ||
Specifications: | ||
Input Voltage |
90-250VAC |
|
Input current |
0.47A |
|
Input Frequency |
47 to 63 Hz |
|
Output Voltage |
12VDC |
|
The sum output current |
5A |
|
Max output Power |
60W |
|
Storage temperature: |
-40-80 degree |
|
Operating temperature: |
-25-45 degree |
|
Humidity operating: |
20%-95% |
|
Humidity storage: |
10%-95% |
|
Protections |
Short Circuit |
Auto recovery |
Over-load |
20% exceed is allowed |
|
Over-voltage |
≤255V |
|
Thermal Protection |
≤85 degree |
|
CE |
CE Safety Standard |
Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation |
Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 |
|
Harmonic Current |
Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
|
Others |
Dimension/Weight |
175*67*50MM/850g |
Housing Material |
METAL |
|
Our factory:
5,000 square meters
150 well-trained staffs
18 R&D engineers
18 QC auditors
4 SMD workshops, equipments imported from Japan
2 semi-automated production lines
500K/M current monthly capacity
ISO9002 quality assurance
UL/CUL , CE, FCC, CCC, KC, GS, TUV , C-TICK , SAA,CB, ROHS approvals , 6 level efficiency .
Our principle: Lowest price and GOOD quality.
