PP Biaxial Geogrid for Road Soil Reinforcement
- T/T
You May Like
-
PP Biaxial Geogrid / ROAD GRIDS
-
PP Biaxial Geogrid for Road Soil Reinforcement China Manufacturer
-
PP Biaxial Geogrid /ISO CE Certified Geogrid Manufacturer in China
-
PP Biaxial Geogrid Plastic Geogrid High Quality With Competitive Price
-
Plastic Biaxial Geogrid With CE Certificate
-
PP Biaxial Geogrid With CE Certificate
Product Details
| Place of Origin | Shandong, China | Brand Name | jh | |
| Model Number | 20KN/M--50KN/M | Material | Plastic |
Product Description

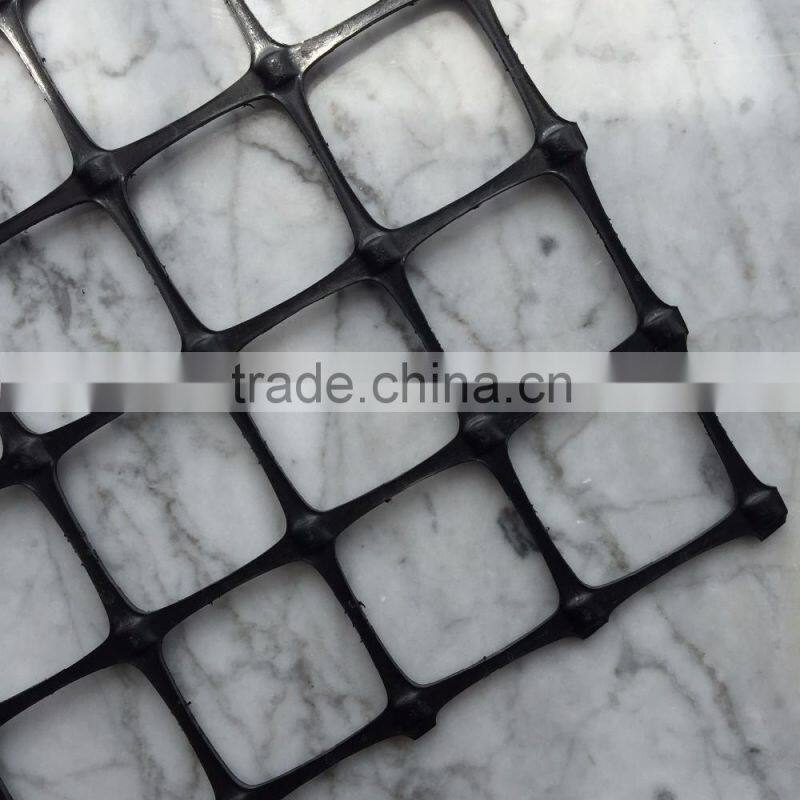

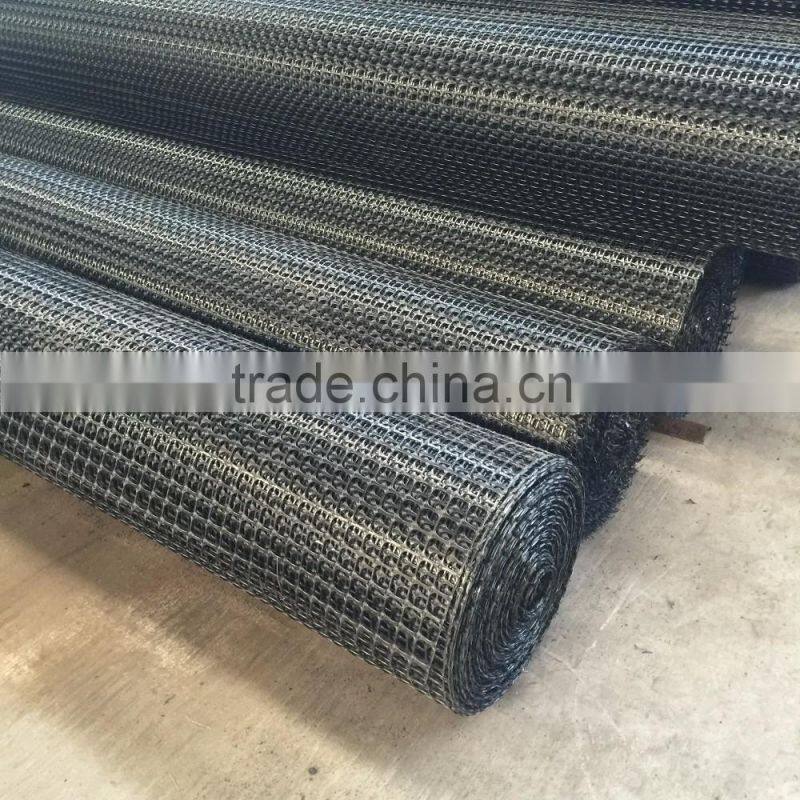

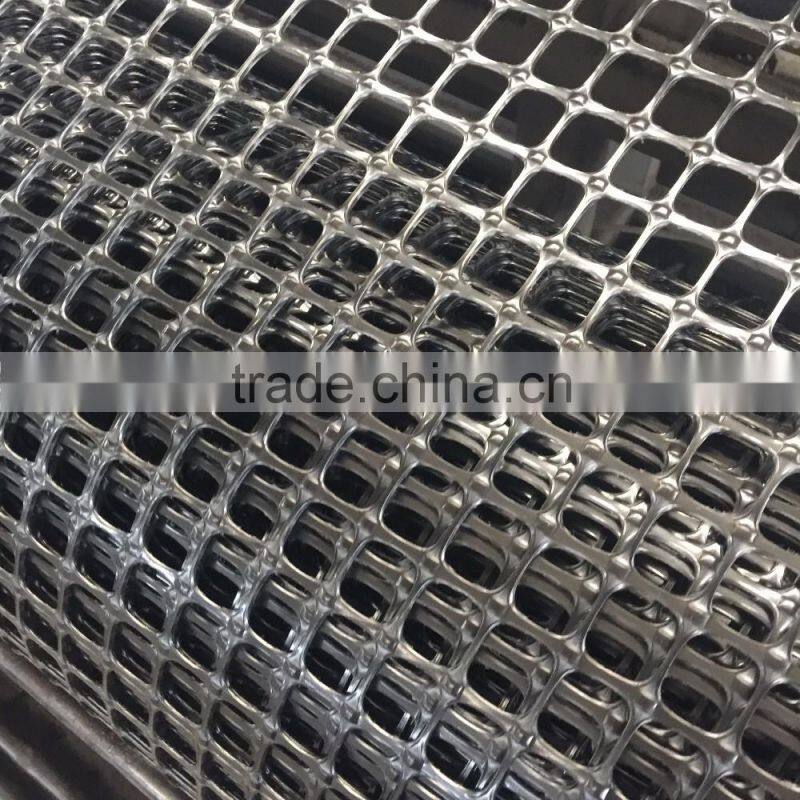

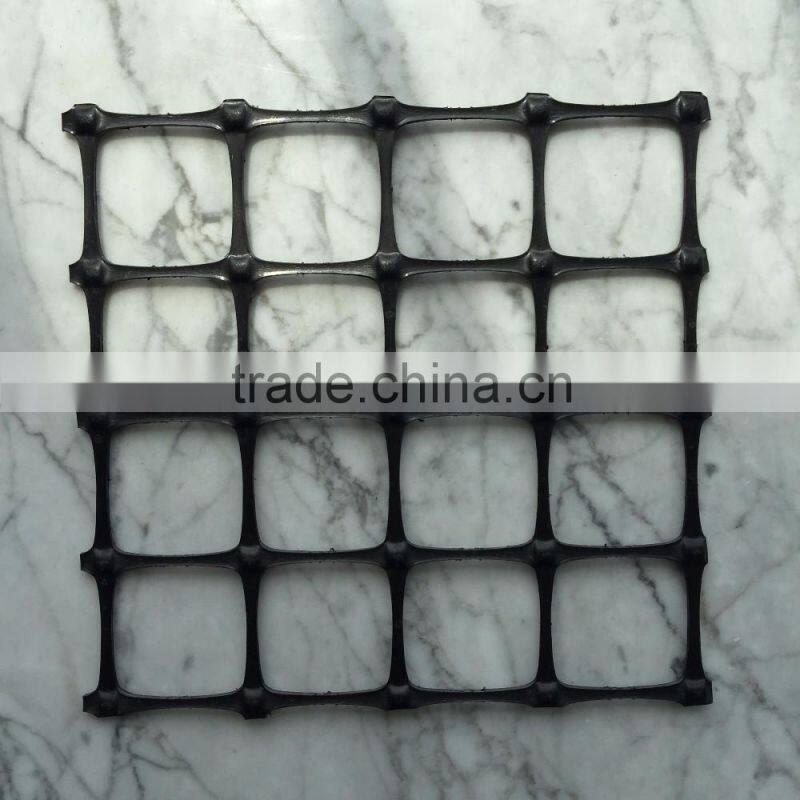

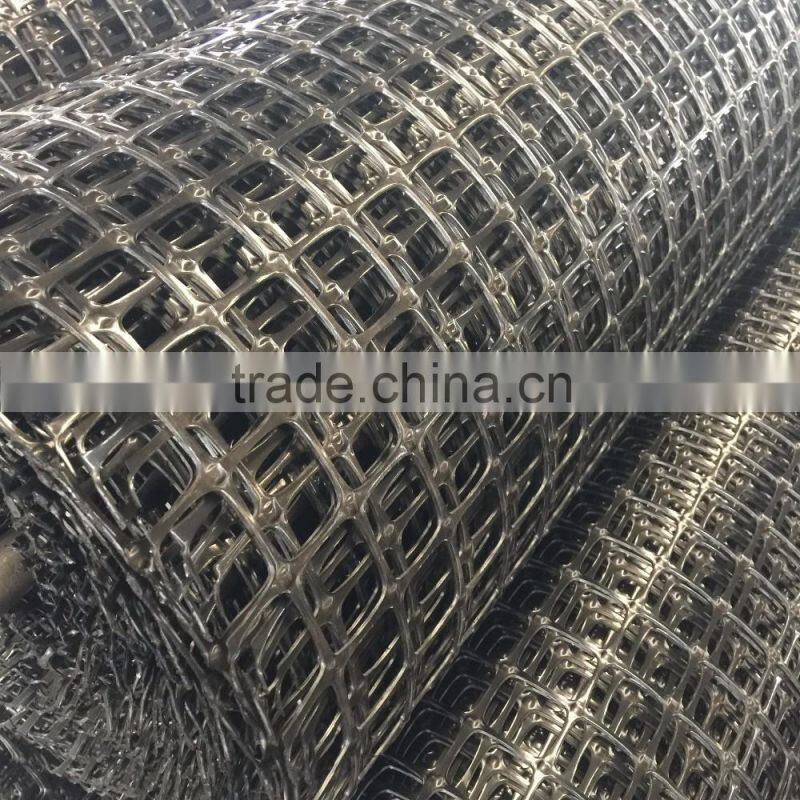

PP Biaxial Geogrid
width:1-6m
tensile strength:15x15kn-50x50kn/m
Applications:
Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine. It is easy to wash coal.
Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in the coal mine.
Index Properties | Test Method | Unit | GG1515 | GG2020 | GG3030 | GG4040 |
MD TD | MD TD | MD TD | MD TD | |||
Polymer | -- | -- | PP | PP | PP | PP |
Minimum Carbon Black | ASTM D 4218 | % | 2 | 2 | 2 | 2 |
Tensile Strength@ 2% Strain | ASTM D 6637 | Kn/m | 5 5 | 7 7 | 10.5 10.5 | 14 14 |
Tensile Strength@ 5% Strain | ASTM D 6637 | Kn/m | 7 7 | 14 14 | 21 21 | 28 28 |
Ultimate Tensile Strength | ASTM D 6637 | Kn/m | 15 15 | 20 20 | 30 30 | 40 40 |
Strain @ Ultimate Strength | ASTM D 6637 | % | 13 10 | 13 10 | 13 10 | 13 10 |
Structural Integrity | ||||||
Junction Efficiency | GRI GG2 | % | 93 | 93 | 93 | 93 |
Flexural Rigidity | ASTM D 1388 | Mg-cm | 700000 | 1000000 | 3500000 | 10000000 |
Aperture Stability | COE Method | mm-N/deg | 646 | 707 | 1432 | 2104 |
Dimensions | ||||||
Roll Width | -- | M | 3.95 | 3.95 | 3.95 | 3.95 |
Roll Length | -- | M | 50 | 50 | 50 | 50 |
Roll Weight | -- | Kg | 39 | 50 | 72 | 105 |
MD denotes Machine direction. TD denotes transverse direction. | ||||||
If you want further inforation,pls contact me directly.
