different dimensions W1 tungsten plate/sheet for sale
1. Grade:W1 W2
2. Purity :W1 > =99.95% W2 > =99.92%
3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/cm3

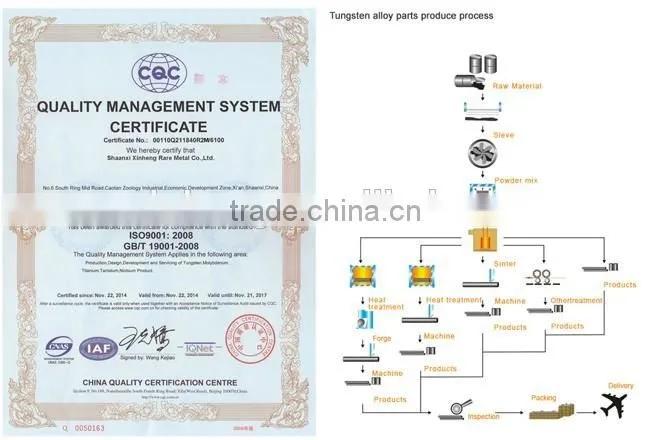

4. Certificate: ISO9002
5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.
6. Dimensions and tolerance(According to clients’ requirements):
Tungsten Plate [mm] | |||||||
thickness |
tol |
width |
tol |
length |
tol |
quality |
flatness in % |
1.000 |
+/- 0.200 |
500.0 |
+/- 1.20 |
1000 |
+5/-0 |
hot rolled, pickled |
20 |
1.500 |
+/- 0.250 |
500.0 |
+/- 1.70 |
1000 |
+5/-0 |
hot rolled, pickled |
20 |
2.000 |
+/- 0.250 |
500.0 |
+/- 1.70 |
1000 |
+5/-0 |
hot rolled, pickled |
25 |
3.000 |
+/- 0.300 |
300.0 |
+/- 1.70 |
800 |
+5/-0 |
hot rolled, pickled |
25 |
4.000 |
+/- 0.200 |
200.0 |
+/- 1.70 |
600 |
+5/-0 |
hot rolled, pickled |
25 |
5.000 |
+/- 0.200 |
200.0 |
+/- 1.70 |
550 |
+5/-0 |
hot rolled, pickled |
25 |
7. Application:
1).for producing tungsten targets
2).for producing ion implantation parts
3).for rolling tungsten foil and punching tungsten discs
4).for producing electric light source parts and electric vacuum components
5).for producing heating elements and refractors in high temperature furnaces
6).for producing W-boats, and heating units in high temperature furnaces
Packaging details:
1. Packing with moisture-proof paper;
2. Packing with Kraft paper;
3. Packing with foam plastics in all sides;
4. Packing products in standard wooden cases.
Shipping terms :
We could offer shipping by sea, by air and express such as Fedex, UPS, TNT, DHL etc.
We have cooperated with these express companies for many years with a big discount.
We will compare the offer and choose the best one for you .
