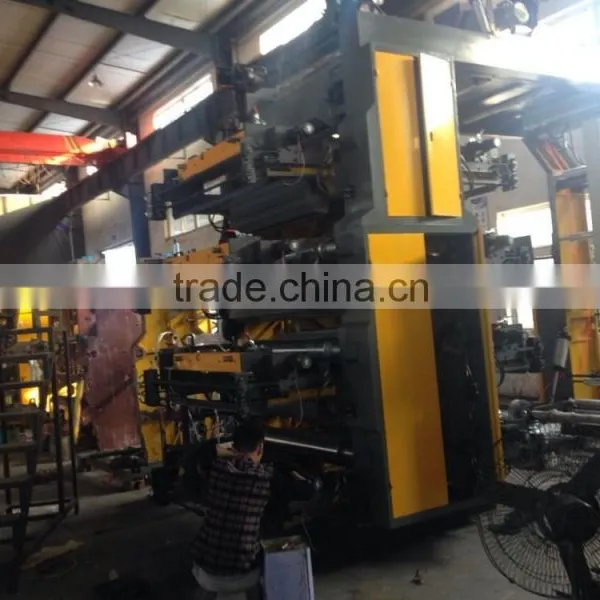

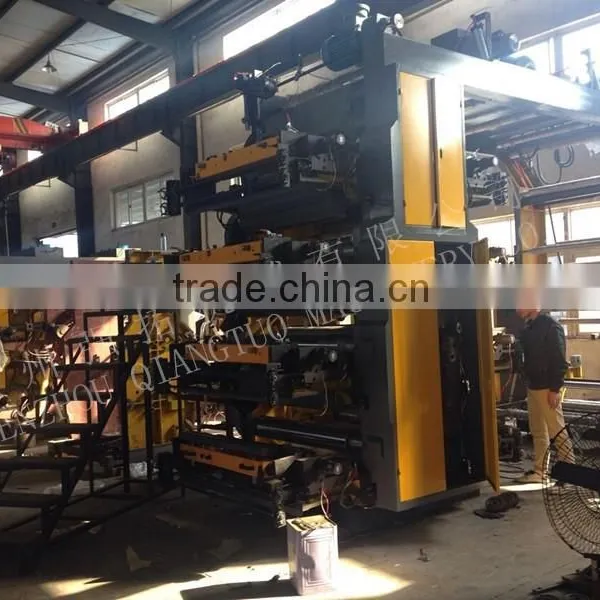

Stack Type 8 Color High Speed Flexo Printing Machine

Name: Stack Type 8 Color High Speed Flexo Printing Machine
Brand: guoxin, guoxin
SKU: 127452007
Availability: InStock

US$ 60,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other

Place of Origin:

Zhejiang, China

Wenzhou Qiangtuo Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other

Place of Origin Zhejiang, China

Brand Name guoxin, guoxin

Usage Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer

Automatic Grade Other, Semi-Automatic, Automatic

Voltage 380V, 380/220V

Gross Power 30KW, 30 KW

Dimensions(L*W*H) 5000mm*2300mm*3000mm

Weight 7500kg

Certification CE, CE, ISO9001

After-sales Service Provided Engineers available to service machinery overseas

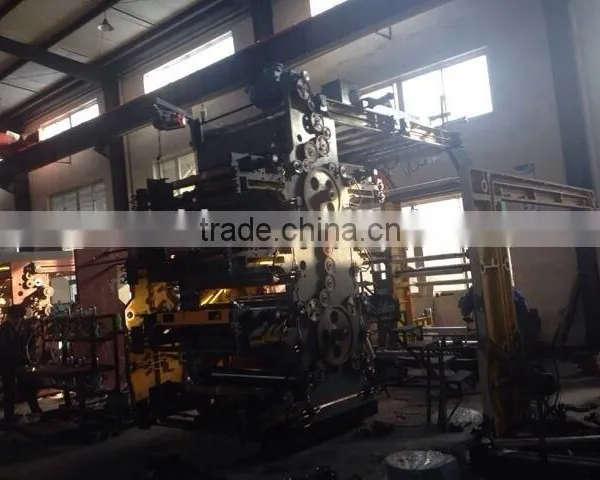

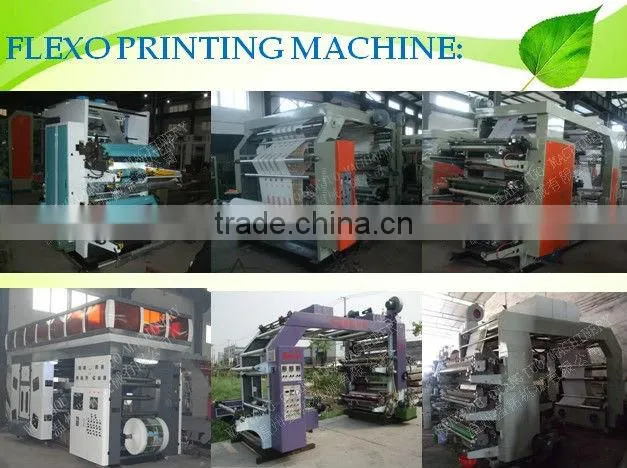

Stack type 8 color high speed flexo printing machine

Performance and Features

1. Take it easy, accurate color, long life.

2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.

3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.

4. Use special diagonal-tooth gear, accurate printing size.

5. Two sets of heating devices, including central heating and constant temperature control system for group control.

6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.

7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.

8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing

9. Print produce are clear and good arrangement quality.

10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll

Main Technical Variables:

Model	QTH Series
Machine Colors	8 Colors
Max. printing material width	1050mm (max. can be 2250mm)
Max. printing width	960mm (max. can be 2160mm)
Printing material	plastic film,
Printing length(repeat)	7.5"~40"(190mm~1000mm)/7.5"~50"(190mm~1270mm)
Max. Mechanical speed	150m/min
Max. Printing speed	30-120m/min
Register precision	±0.15mm
Press power	Mechanic control
Master motor power	3.7kw,Taiwan
Machine power	55kw
Outline size	5.4m×2.4m×3.8m
Power:	440V/380V/220V,50/60Hz
Rewind/Unwind DIA	Φ1000mm
Unwind way	single unwind, By air shaft , with 10kg magnetic 1 pcs
EPC system:	Edge Position Controller for unwind 1 Pcs
Tension system	Automatic tension control 2PCS
Unwinding loading way	By air shaft , 1 pcs
Unwind web cylinder	Φ76mm (inner diameter)
Printing plate lifting system	Automatic Hydraulic cylinder control printing roll up and down
Anilox roll amd Inking way	High speed machine:ceramic anilox roller (100-1000lpi), Chamber doctor blade for 30-120m/min
Inking motor	deceleration motor,60w
Drying model	Electric heating
Drying power	35 kw
Air blower (large)	4kw / 1pcs
Air blower (small)	75w / 15 pcs
Rewind way	single rewind, By air shaft , 1 pcs
Rewinding unloading way	By air shaft , 1 pcs
Rewind web cylinder	Φ76mm (inner diameter)
