8 inch aluminum flexible ducting for mini portable air conditioners, air condition parts

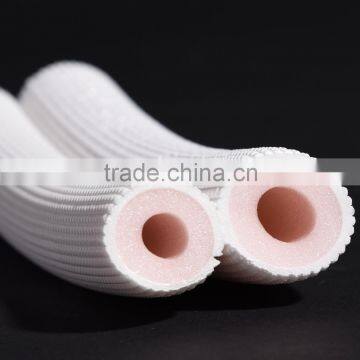

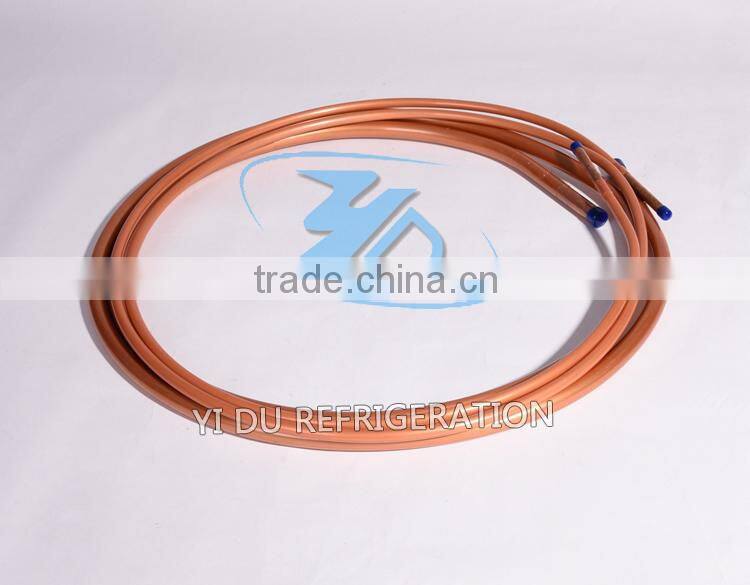

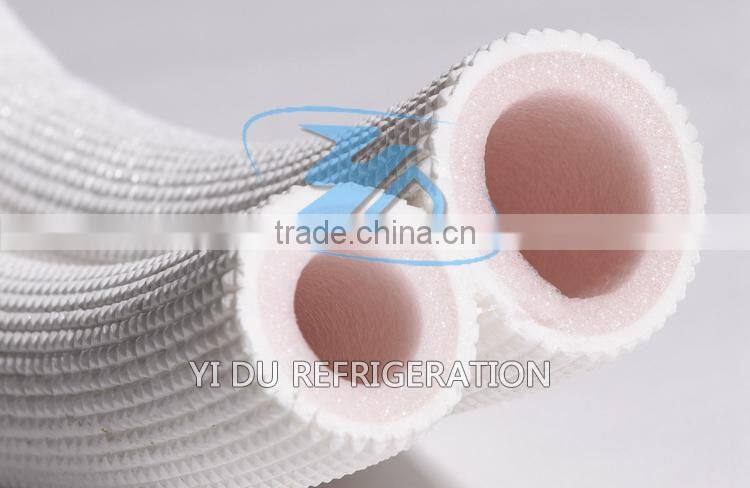

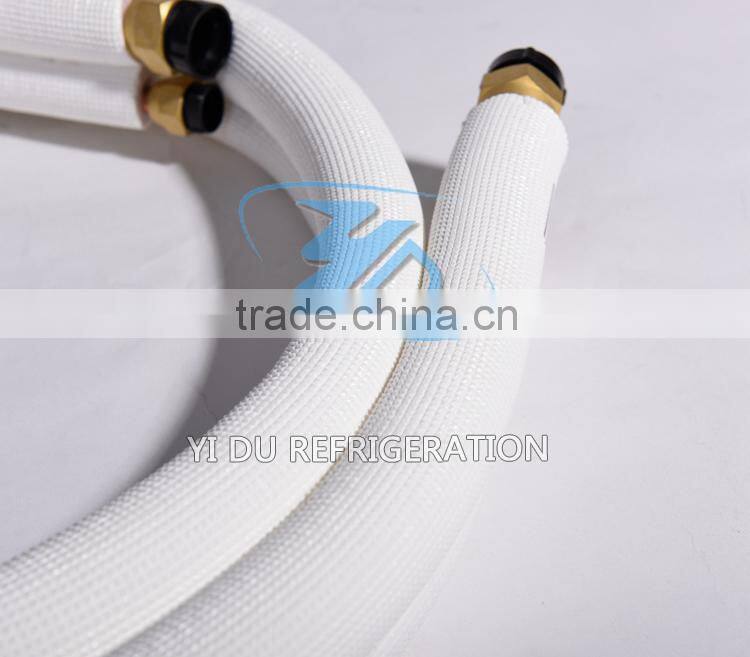

410 air conditioning pipe insulation is with 15cm long copper cap and PE heat shrinkable tube
- The length and wall thickness of pipe, copper nut and insulation can be customized.
- Advance cutting machine promote precision.
- Powerful hydraulic expanding machine makes surface of inner or outer wall smooth.
- Short delivery time, 3-7 working days.
- Small order is also welcomed.
Mechanical Properties of 410 air conditioning pipe
- Anticorrosion treatment on the surface using polytene material, proventing vapor in case of corroding, ensure 8 year lifespan.
- The length of welding area reaches 5-10mm, advance welding machine promote efficiency by 80%.

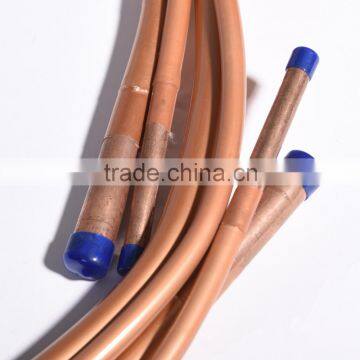

- The length of copper end is 150mm, no burr, crack, voids problems.
- Inside Interor surface maximum permissible residue 0.038g/m ² .
- No defects on the surface of air conditioner copper pipe during production, avoiding hidden trouble.
- Dimension and mechanical properties complied with ASTM B280, EN12735-1, AS1571, JIS H3300.
- Copper thickness compatible any gases: R22 - R407C- R410A -R404A - R507C etc
| Spec.(inch) |
Metal tube outer dia.*wall thickness(mm) |
Insilating thickness (mm) |
Length(m) |
Quantity per carton |
|---|---|---|---|---|
| 1/4"+ 5/8" | 6*0.7+15.88*0.9 | 8/10/13 optional | 2-15, or customized | 5 |
| Spec.(inch) |
Metal tube outer dia.*wall thickness(mm) |
Insilating thickness (mm) |
Length(m) |
Quantity per carton |
|---|---|---|---|---|
| 1/4"+ 3/8" | 6*0.7+9.52*0.7 | 8/10/13 optional | 2-15, or customized | 5 |
| 1/4"+ 1/2" | 6*0.7+12*0.8 | 8/10/13 optional | 2-15, or customized | 5 |
| 3/8" + 5/8" | 9.52*0.7+15.88*0.9 | 8/10/13 optional | 2-15, or customized | 5 |
| 3/8" + 3/4" | 9.52*0.7+19.05*1.2 | 8/10/13 optional | 2-15, or customized | 5 |
| 1/2" + 3/4" | 12*0.8+19.05*1.2 | 8/10/13 optional | 2-15, or customized | 5 |
| Items | Test method | Result |
| Airtightness property | 4.0MP A, 5 min | No leak |
| Presure resistance | 12MP A, 1 min | No crackle |
| Bendability | Diameter 180 deg | No pleat and crackle |
Nylon bage or hard paper carton. Or as customer's request.
1 The length of pipe, copper cap and wall thickness of 410 air conditioning pipe can be customized.
2 Short delivery time, 3-7 working days.
3 Free sample of 410 air conditioning pipe can be available.
4 Professional engineer with six year experience to solve your problem regarding 410 air conditioning pipe.
5 Excellent afer sale severce, 100% compensation if any quality problem.
6 Small order about 410 air conditioning pipe is also welcomed.
Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 mian advantages compared with other competitors. A First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop. B Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size. C 100% no aluminum slag. D OEM service, the length and wall thickness of airconditioning pipe or insulation pipe can be customized. For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation.
