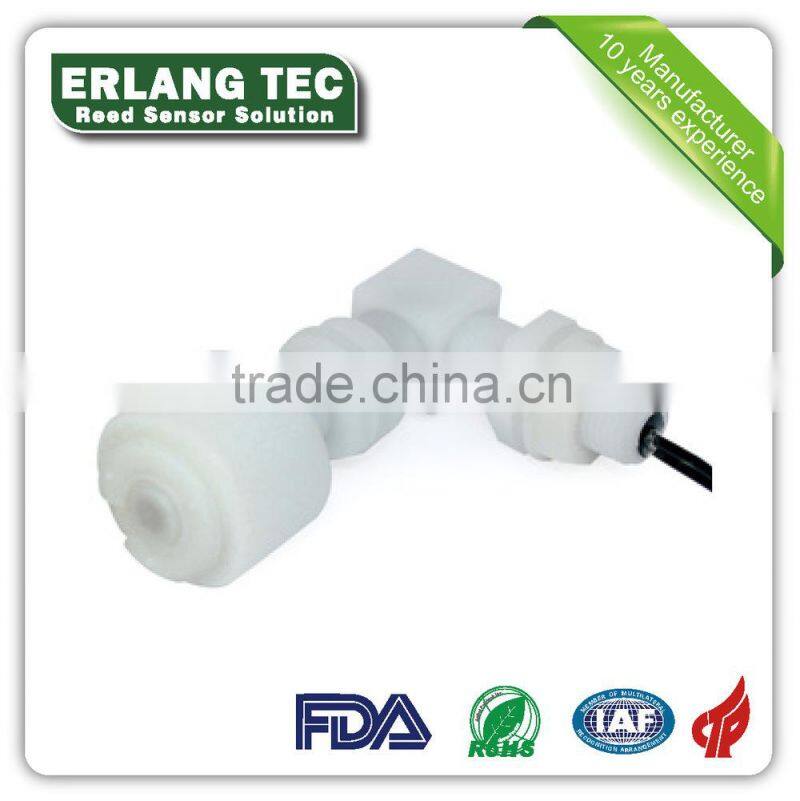

PP Material Side Mounted Water Level Control Switch

Name: PP Material Side Mounted Water Level Control Switch
Brand: ERLANG
Availability: InStock

FOB Price

US$ 1.5 - 5.5 / Piece

100 Pieces(Min. Order)

Port HONGKONG

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ERLANG
Model Number	FS-2A-83T	Usage	Magnetic Sensor
Theory	Other, REED SWITCH	Output	Switching Transducer

Product Description

Magnetic Float Switch

Movement Explaination:

A float switch is a device used to sense the level of liquid in a tank.

When the float ball moves along the stem with the water level, the magnet inside the ball will cause the action of the reed switch inside the stem. And the action of the reed switch will energized or cut off the circuit, this will send to the control board a signal that the liquid level is at the predetermined position, then we will know the condition in the tank.

there are usually two way to use the float switch, to prevent overflow or to prevent dry-fire.

Application:

water heater, water dispenser, air-condition, air-cooler, BSD-P, humidifier, dehumidifier,fluid control,a pump,an

indicator,an alarm,or other device.

If there is no product suitable for your desire,you can also send some data and pattern of your

product that you desired ,our company will design it for you particularly!

Our products has been authenticated by ISO9001.

Data Scan	FS
Max Contact Rating	10W
Max Switching Voltage	100VDC
Max Switching Current	0.5A
Min Breakdown Voltage	250VDC
Max Carry Current	1.0A
Max Contact Resistance	100mΩ
Temperature Rating	-20~85°C
Float Ball Material	PP
Float Body Material	PP
Hexagon Nut Material	PP

FORM A: when the float ball go down the switch is TURN ON

FORM B: when the float ball go down the switch is TURN OFF
