Specifications
1) Maximum production speed: up to 900 holes/minute2) The maximum filament length: 240 mm
3) two heads
Technical characteristics:
Bored with three drilling head and two tufting head, high-speed processing, high-volume, cost-effective
This machine can produce many different kinds of brushes or brooms which have different filling angles, by changing specific platform
Bored with three high speed drilling head: hole diameter from 3.0mm up to 6.0mm,and tufting tools from min. 3.0mm up to 6.0mm
Hair by: round nails or flat nails.
Three kinds of the optional platform type:
1, platform for radial, parallel and radial/parallel tufted brushes.
2, platform for bowl brushes and semi-spherical brushes (such as toilet brushes and “Swedish style” dish-washing brushes)
3, platform or rollers and hair brushes
PLC and touch panel control system of man-machine, Chinese and English display, simple to understand.
Allow to save as 1000 procedure and easy for the creation of new models
Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.
Ore machine can produce either one color or two color brush, and also drill or tuft separately.
Technical parameters
Maximum production speed: up to 900 holes/minute
The maximum filament length: 240mm
Dia. Of tufting holes: 3.0mm-6.0mm
Machine size: 2.32m*1.92m*2.22m (length * width * height)
Power consumption: 4KW
Driving motor: AC Servo motor
Power Supply: three-phase 380V
Weight (KG):2800KGS

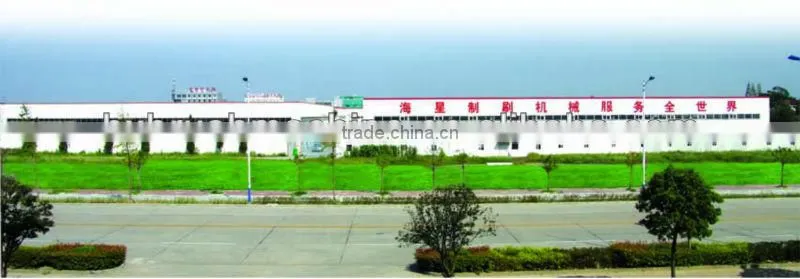

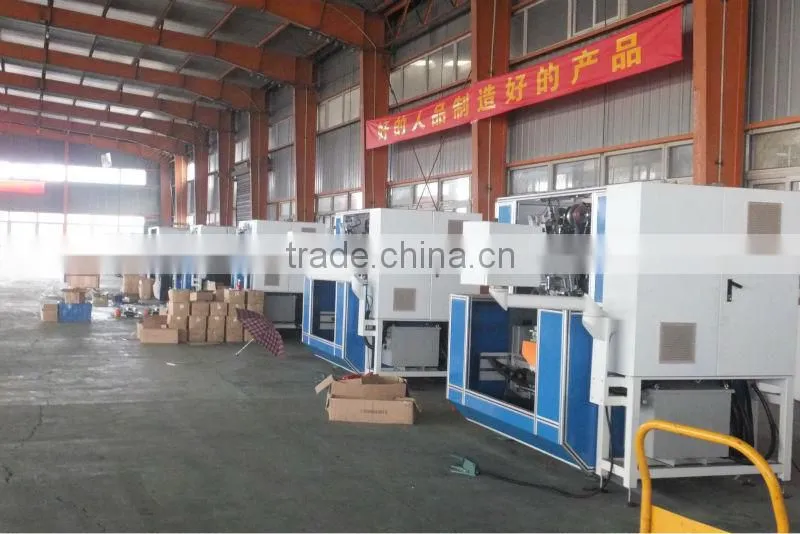

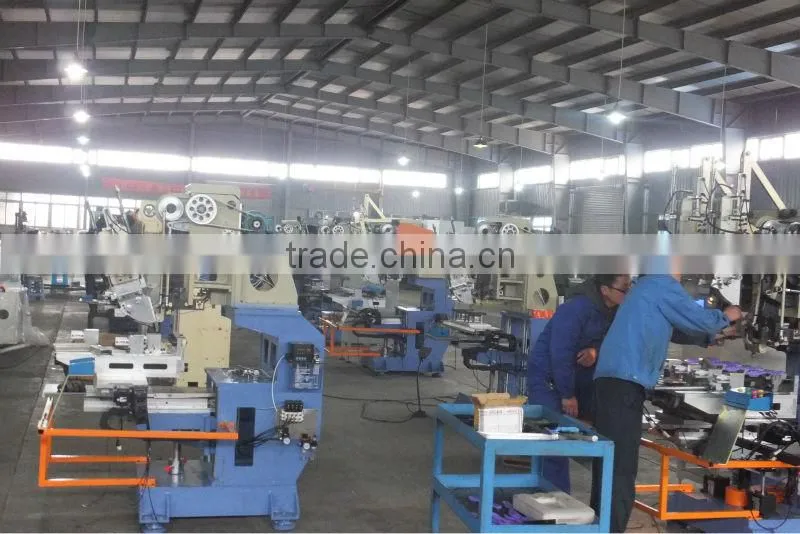

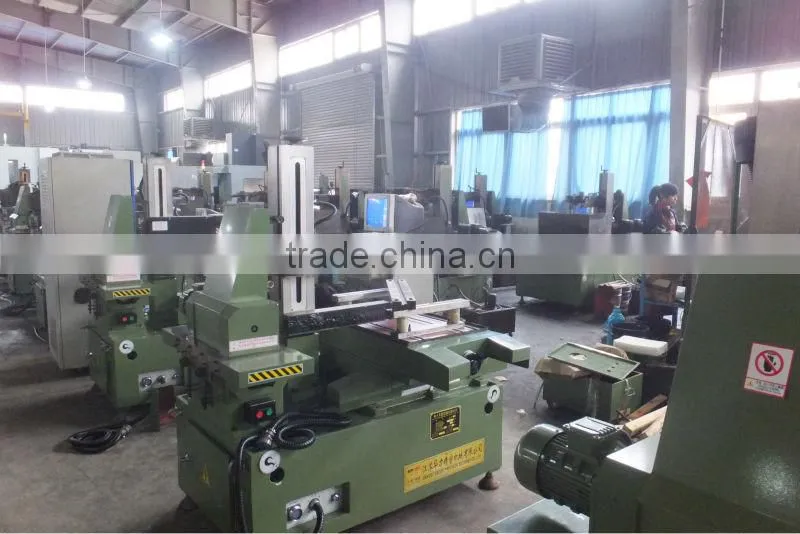

We are factory, below is our facory picture, please feel free to contact us and let us know what you need.
Q: Are you factory? Where are your factory?
A: yes, our factory is about 2 hours from shanghai by train. Welcome to visit our factory.
Q: Can you teach us how to use this machine?
A: yes, sure.
Q: How can we know if our brush sample can be made by your machine?
A: You can send us brush sample, then we can use our machine to make samples for you.
Any query, please feel free to contact us.
