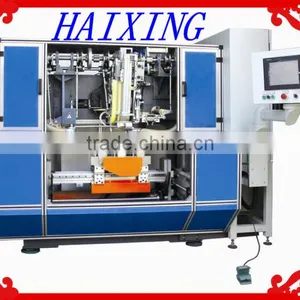

Help CenterHigh Speed CNC Drilling and Tufting Bowl Brush Machine/ Bowl Brush Making Machine (2 Drilling and 1 Tufting)
Related Products
-
High Speed 5 Axis 3 Heads CNC Drilling and Tufting Brush Making Machine/Water Flow Car Brush Machine (2 Drilling and 1 Tufting)US$ 1 - 70,000MOQ: 1 Set -
High Speed 5 Axis 3 Heads CNC Drilling and Tufting Brush Making Machine/Water Flow Car Brush Making MachineUS$ 1 - 70,000MOQ: 1 Set
-
5 Axis Drilling and Tufting Combination Car Brush MachineNegotiableMOQ: 1 Set
-
High Speed CNC Drilling and Filling Brush Machine/ Car Brush Making Machine (2 Drilling and 1 Tufting)NegotiableMOQ: 1 Set
-
High Speed CNC Drilling and Tufting Car Brush Machine/ Car Brush Making Machine (2 Drilling and 1 Tufting)NegotiableMOQ: 1 Set
Specifications
1. machine can make brush and broom2.CNC drilling and tufting machine
3. make many kinds of bowl brushes

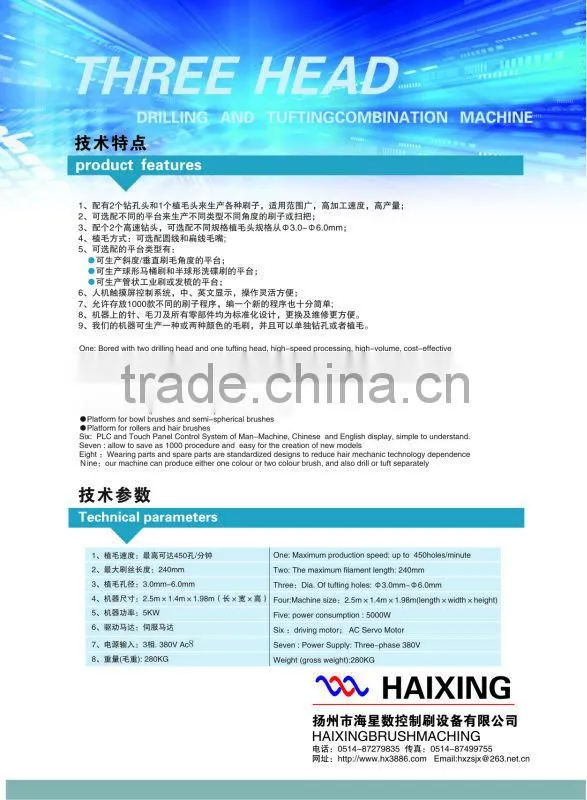

Technical characteristics:
1.Bored with two drilling head and one tufting head, high-speed processing, high-volume, cost-effective
2.This machine can produce many different kinds of brushes or brooms which have different filling angles, by changing specific platform
3.Bored with three high speed drilling head: hole diameter from 3.0mm up to 6.0mm,and tufting tools from min. 3.0mm up to 6.0mm
4.Hair by: round nails or flat nails.
5.Three kinds of the optional platform type:
1), platform for radial, parallel and radial/parallel tufted brushes.
2), platform for bowl brushes and semi-spherical brushes (such as toilet brushes and “Swedish style” dish-washing brushes)
3), platform or rollers and hair brushes
6.PLC and touch panel control system of man-machine, Chinese and English display, simple to understand.
7.Allow to save as 1000 procedure and easy for the creation of new models
8.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.
9.Ore machine can produce either one color or two color brush, and also drill or tuft separately.
Technical parameters
Maximum production speed: up to 450 holes/minute
The maximum filament length: 240mm
Dia. Of tufting holes: 3.0mm-6.0mm
Machine size: 2.5m*1.4m*1.98m (length * width * height)
Power consumption: 3KW
Driving motor: AC Servo motor
Power Supply: three-phase 380
Weight (KG): 2800KGS

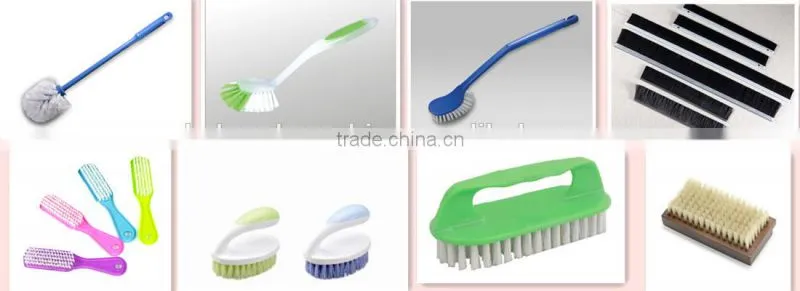

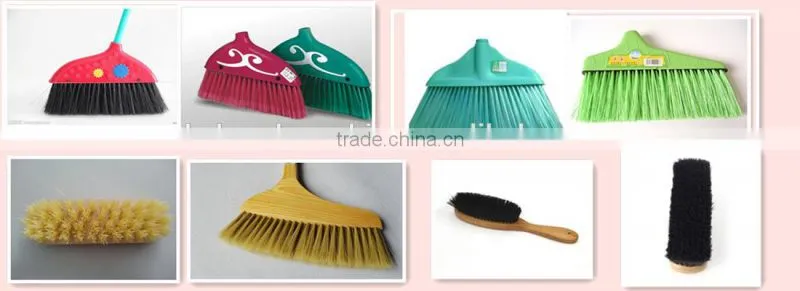

This machine can make many kinds of brushes and brooms, like below:
We have professional engineers and equipments.
Q: Whats the difference from other companies?
A: First,our machine are bored with the high speed processing,low noise ,cost effective.
second, our machine is suitable for different shape and style of brush and broom handles usage.
Third, we have been in this line for about 10 years and have a professional and experienced
technical development group.They are willing to design and manufacture products with
both standard and customized specifications .
Why choose us?
1.we are honest and reliable,we won't hope we only have one cooperation chance.
2.We are professional,there are a good team of engineers and designers in our factory.
3.We always stick to provide our customers best quality,best price,best service to all our customers.
4.We follow up every one customer that how is our machine working and engineer available to offer service overseas.
Skype:jennypang, QQ:986224583
