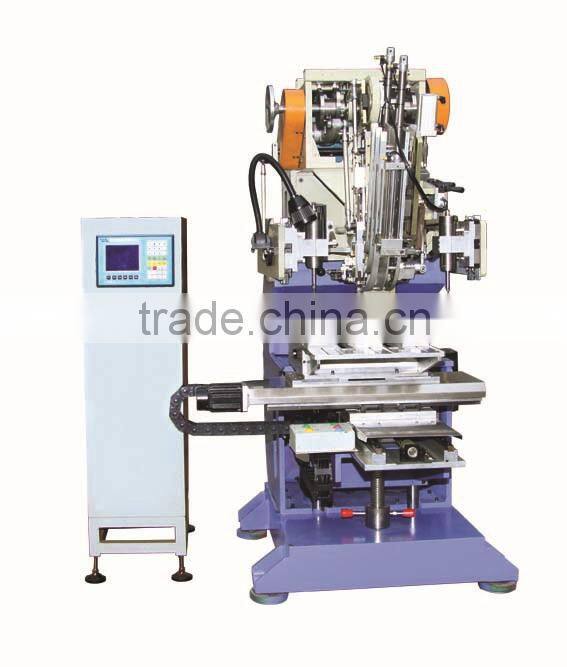

Help CenterHigh Speed Flat Wire Drilling and Tufting Machine for Roller Brush/ Wood Roller Hair Brush Machine
Related Products
-
High Speed Flat Wire Roller Brush Machine/ Roller Brush Making MachineNegotiableMOQ: 1 Set -
High Speed CNC Roller Brush Drilling and Tufting Machine/ Roller Brush Making MachineNegotiableMOQ: 1 Set
-
High Speed CNC Roller Brush Drilling and Filling Machine/ Roller Brush Making MachineNegotiableMOQ: 1 Set
-
2 Axis Double Heads Round Brush Making MachineNegotiableMOQ: 1 Set
-
High Speed Flat Wire Roller Brush Drilling and Tufting MachineNegotiableMOQ: 1 Set
Specifications
Flat wire drilling and tufting machine for brush1)Drilling and Tufting Machine
2)for flat wire brushes
3) High speed
Product Features
1.This machine is suitable for all kinds brush of the diameter from 2.2mm to 4mm and within the height of bristle is 40mm for drilling and tufting.
2.Bored with two drilling head and one planting head, high-speed processing, high-volume, cost-effective.
3.Panel Control Syestem of man-machine, Chinese and English display, simple to understand.
4.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence;
5.Hair by:oblate style
6.laegesr wool length:40mm
7.Models can be stored:20(expandable)
8.Input methods:handheld encoder or keyboard input
Technical parameters:
Description | Parameter |
Max Speed | ≤600 holes/min |
Hole diameter | Φ2.2-Φ4mm |
Spindle quantity | 2-4piece |
Journey X axis | 500mm |
Journey Y axis | 400mm |
Maximum program quantity | 100 |
Air pressure | 6 mpa |
Power voltage, frequency | 380V, 50Hz |
Machine power | 2kw |
Contour size | 1100×1150×1830mm |
Weight | 950kgs |
| Control system | CNC Conroller |
| Disturbance Display | Emglish edition |
| Safety Protection | Overload, short circuit protection |
| Lubrication | Auto Lubrication System |
| Main speed control | Frequency Inverter |
| Fiber Box | Frequency Inverter |

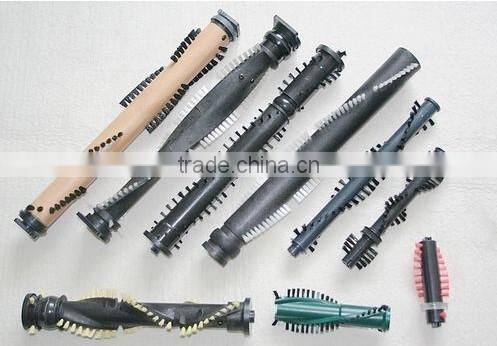

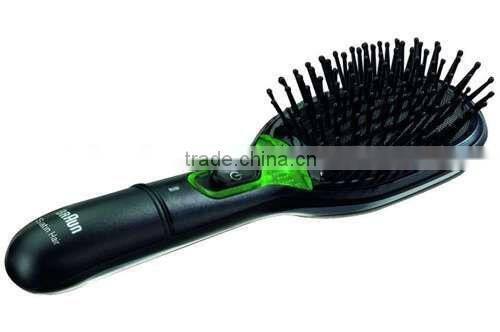

This machine can make shoe brushes, roller brushes, hair brushes.
