ZS Terracotta Panels Description
Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and dry hanging system which it is widely used in curtain wall and interior wall
1. Terracotta sunscreen products advantages
*Natural clay material -100% green material and hollow structure
*Heat preservation and sound insulation
*No-static and no-radiation product
*Rich color and surface available
*Easy dry hanging system
*Non of the light pollution
*Self-cleaning system
*Never color fading
*Light weight
2. Terracotta usage
Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, it normally called Terracotta panel for exterior wll, terracotta wall panel, Terracotta louver, Terracotta tube, terracotta panel for curtain wall. etc
3. Normal colors
Red: Bright red, coral red, burgundy red, coffee
Yellow: Ivory, wheat yellow, maize yellow, orange yellow
Gray: Light gray, great wall gray, deep gray, dark gray
White, Green ,Blue
4. Normal size
*Available thickness 18mm, 30mm
*Available width: 300mm, 400mm 450mm 500mm 550mm 600mm 650mm
*Available length: 300mm 600mm 900mm 1200mm 1500mm
*OEM and ODM are available
5. Normal surface
Natural /Stripy/Groove/Glazed/Wood Grain
6. Technical Data
A)Net weight: 31kgs/sqm for x18mm(thickness), 44kgs/sqm for x30mm(thickness)
B)Size error: within +-1%, max is within +-2mm
C)Thickness error: within +-4.5%-8%
D)Center curvature: within +-1%
E)Side straight and right angle: within +-1%
F)Anti-pollution: Grade 3
G)Anti-corrasion: Grade UA
H)Wind pressure test 10 Kpa
I)Water absorption: 1%-7%
J)Frost resistence: No
K)Breaking strength: minium 3244N(300x600x18mm)
L)Fire-proofing Grade A1
M)Anti-impact:0.51-0.78
N)Anti-pollution: Grade 3
O)Noise-isolated 7-10DB
P) Rupture modulus are 16.2mpa
7. ZS panels advantage
| Advantages of ZS Terracotta Panel , comparing with Stone and Glass | ||||
| NO. | Contents | Terracotta Panel | Nature Stone | Glass |
| 1 | Material | Natural Clay, 100% green material | granite,marble, sandstone | quartz alkaline colloid |
| 2 | Dry Weight | hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone | 2.4-2.7kg/m³ | 2.5kg/m³ |
| 3 | Dry-hanging System | with its own groove for dry-hanging, standard, safe and easy handle. | on-site processing, fragile,security risk | on-site fixing |
| 4 | Color | Never fading, color inherent,stable color for each production. | natural color, but it is greatly affected by mine or location | heavy-metal oxide |
| 5 | Durability | not new in ten years, not old in one hundred years. | easy to be second weathering | easy to be errosion |
| 6 | Acid and alkaline resistance | high | middle | low |
| 7 | Radiactivity | none | with radiactive elements | With radiactive elements for bright color glass |
| 8 | Low-carbon ability | hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling. | low heat and noise insulation, heavy, needing to be reinforced. | high light-transimission, no heat-insulation |
| 9 | environmental protection of the processing | using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste | much wasting water, stone material is limited, causing great damage to environment. | limited good silicon |
| 10 | Light pollution | no, matte surface | no | high,dazzling |

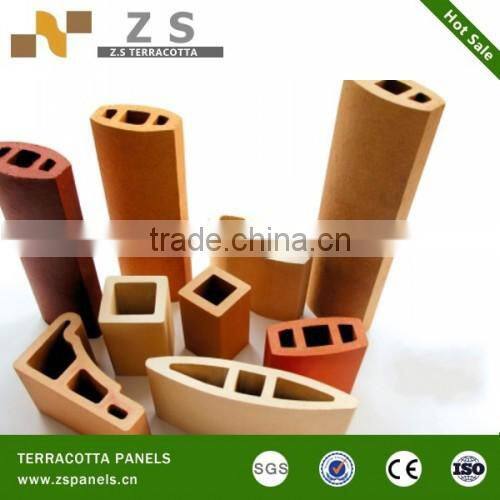

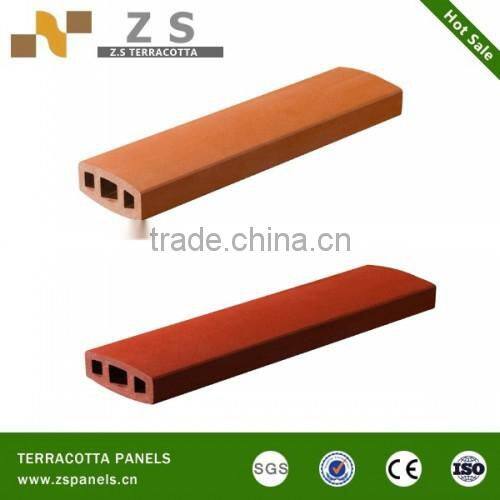

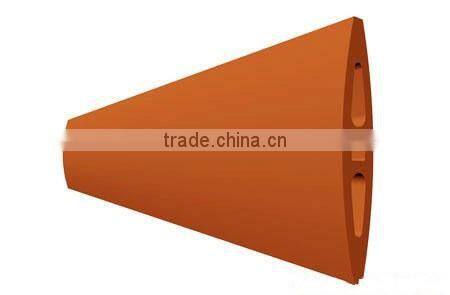

Product Images :
1.We have a professional foreign trade team, and we can provide better before & after sale service.
2.All of our goods will pass the 3rd party testing and quality inspections before shipment.
3.More than 10 years experience in exporting to make your order ship more smoothly.
4.Quickly action , On time delivery.
