External wall Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature, with the advanced hollow structure and dry hanging system which is widely used in curtain wall and interior wall.
1. Terracotta Advantages:
*Natural clay material-100% green material and hollow structure
*Heat preservation and sound insulation
*No-static and no–radiation product
*Rich color and surface available
*Easy dry hanging system
*Non of the light pollution
*Self-cleaning system
*Never color fading
*Light weight
2. Normal Size
Available thickness: 18mm, 30mm.
Available width: 300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm.
Available length: 300mm, 600mm, 900mm, 1200mm, 1500mm.
*OEM and ODM are welcome.
3. Normal colors
Red: Bright Red, Coral Red, Burgundy Red, Coffee
Yellow: Ivory , Wheat yellow, Maize Yellow , Orange Yellow
Grey:Light Gray, Great Wall Gray, Deep Gray , Dark Gray.
White, Green, blue.
4. Normal Surface

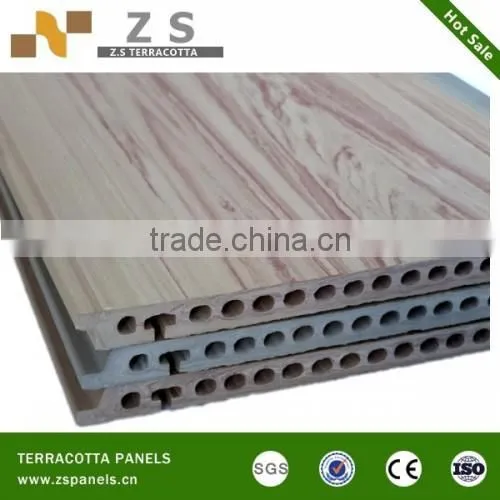

Natural/ stripy/ groove/ glazed/ wood grain/ napping

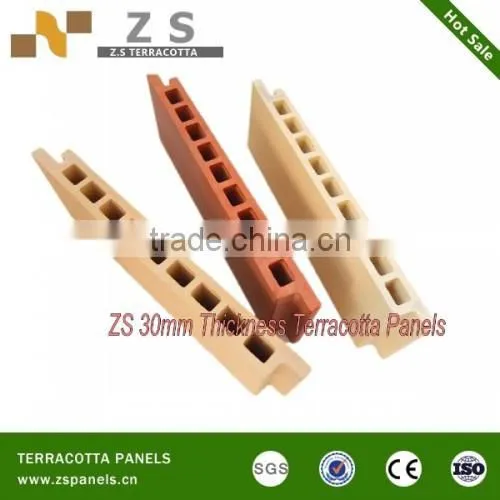

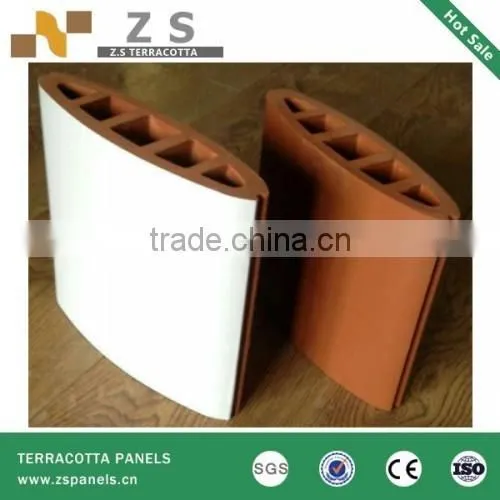

ZS Several kinds of Products
Certificates

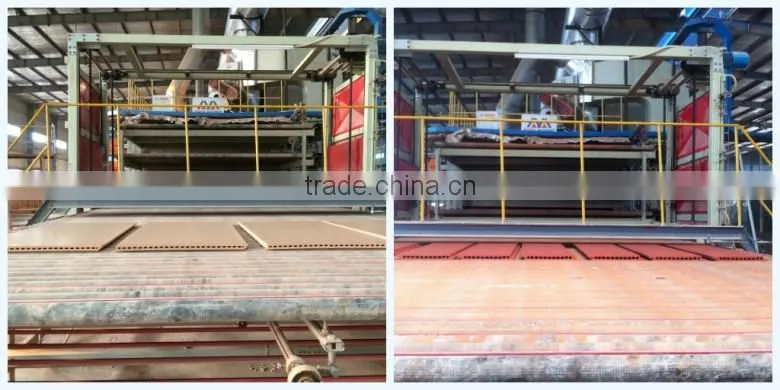

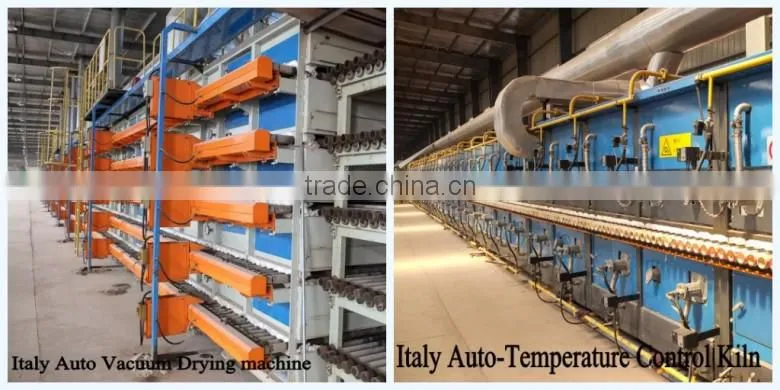

Advanced Italy and Germany Production Line

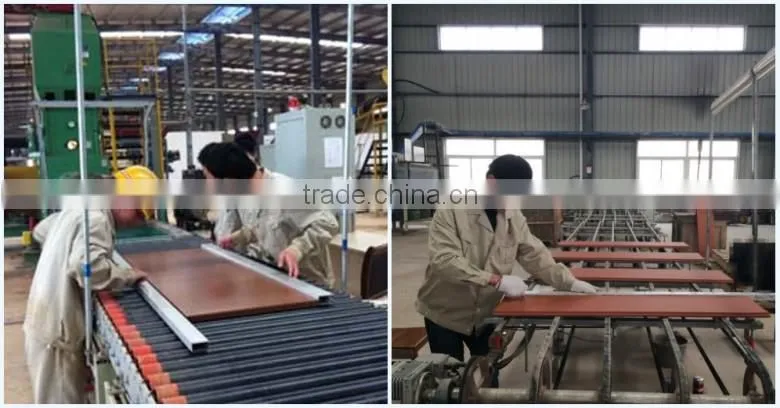

Professional Quality Checking
Safety Packing

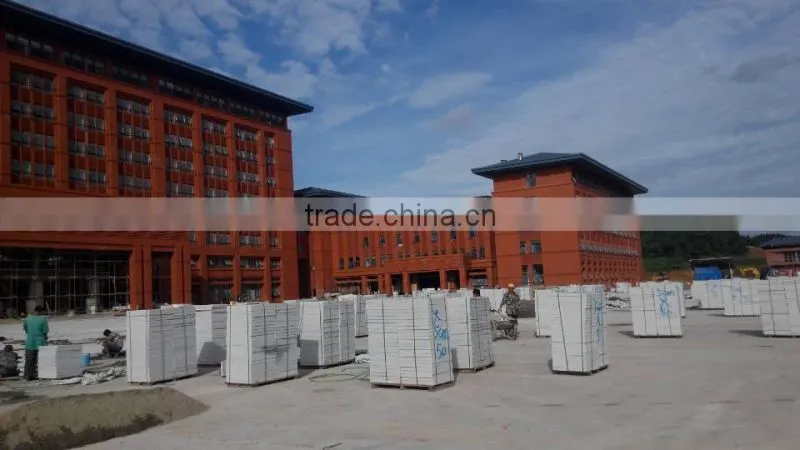

Many ZS Projects
5. Technical Data.
A) Net weight: 31kgs/sqm for X18, 44kgs/sqm for X30
B) Size error: with in ±1% , max is within ±2mm,
C) Thickness error: within ±4.5%-8%
D) Center Curvature: within ±1%
E) Side straight and right angle: within ±1%
F) Anti-pollution: Grade 3
G) Anti-corrasion: Grade UA
H) Wind pressure test: 10kPa
I) Water absorption: 1%-7%
J) Frost resistence: No crack in -100 Centigrade
K) Breaking strength: Minium 3244N.(300X600X18MM)
L) Fire-proofing: Grade A1
M) Anti-impact: 0.51-0.78
N) Anti-pollution: Grade-3
O) Noise-isolated: 7-10Db
P) Rupture modulus:Ave.16.2Mpa
More information, pls feel free to contact with us! Thanks!
