Specifications
fast flat tufting machine for brushIt is suitable for all kinds brush of the diameter from aa1.8mm-aa4.0mm

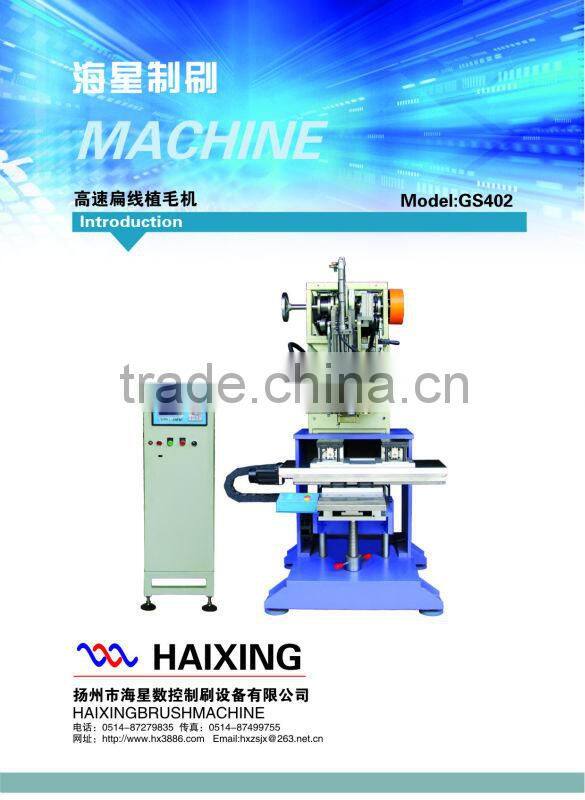

Fat flat tufting machine for Brushes
Machine introduction
This machine is suitable for all kinds brush of the diameter from 1.8mm-4.0mm and within the height of bristle is 40mm for tufting.
Bored with one tufting head, high-speed processing, high-volume, cost-effective.
Panel control system of man-machine, Chinese or English display, simple to understand
Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence;
Hair by: flat style.
Largest wool length: 40mm
Models can be stored: 100(expandable)
Input methods: Chinese or English display, menu-driven operation, handheld encoder or key board input.

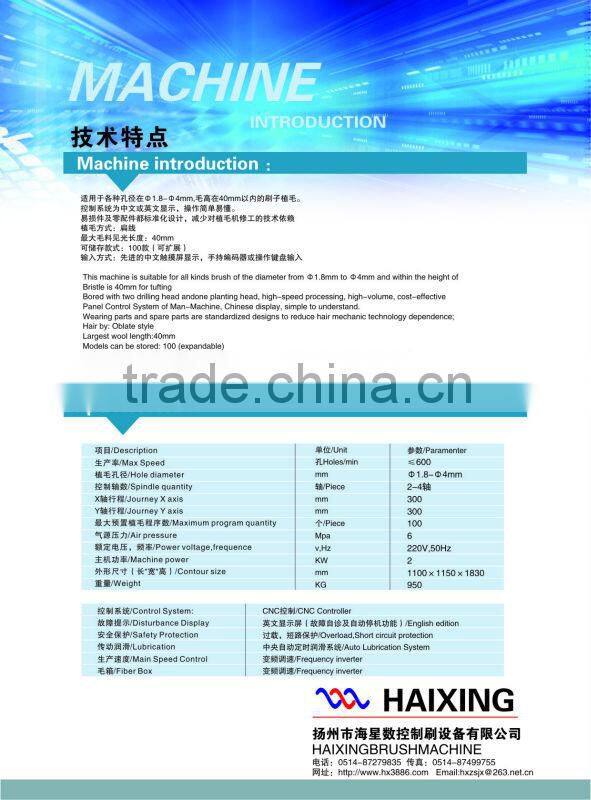

Technical parameters
description | unit | parameters |
Max speed | Holes/min | ≤600 |
Hole diameter | mm | 1.8-4.0 |
Axis quantity | axis | 2-4 |
Journey X axis | mm | 300 |
Journey Y axis | mm | 300 |
Maximum program quantity | piece | 100 |
Air pressure | Mpa | 6 |
Power voltage, frequency | V,Hz | 220V,50Hz |
Machine power | KW | 2 KW |
Contour size | mm | 1100*1150*1830 |
weight | KG | 950 |
Control system | CNC controller |
Disturbance display | English edition |
Safety protection | Overload, short circuit protection |
Lubrication | Auto lubrication system |
Main speed control | Frequency inverter |
Fiber box | Frequency inverter |
