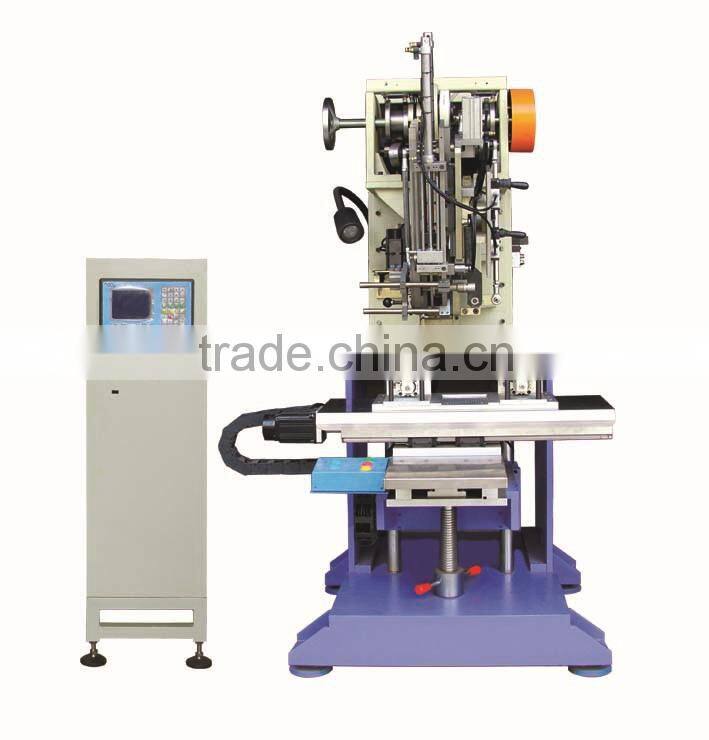

2 Axis Single Head CNC High Speed Brush Filling Machine

2 Axis Single Head CNC High Speed Brush Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
for tufting brush and making brushes
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application for tufting brush and making brushes
Automatic Grade Automatic
Production Capacity up to 600 holes/min
Place of Origin Jiangsu, China
Brand Name HAIXING
Model Number GS402
Voltage 220V
Power(W) 2KW
Dimension(L*W*H) 1.1*1.15*1.83M
Weight 950KGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

High speed brush filling machine, flat brushes, cnc,
cheap price,single head.

2 Axis single head high speed brush filling machine.

Machine Feature:
1. This machine is a brush tufting machine with high speed, suitable for all kinds’of flat brushes, the diameter of the hole from 1.8-4.0mm and the max fiber height is 40mm 2. Bored with single head, high speed processing, high volume, cost effective
3. Used CNC controller with finger touch screen, Chinese and English display, easy to understand and operate
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up

Technical Paremeters for 2 Axis Single Head Brush Anchor Tufting Machine:

ItemModelGS402
1Tufting StyleAnchor tufting
1NO. of Axis2 Axis
3Max Length of The Fiber (Outside The Hole)40mm
4Max Speed:600 Hole/Min
5Diameter of The Hole1.8-4.0mm
6Journey of X Axis300mm
7Journey of Y Axis300mm
9Max Program Quantity100 Pcs
10Air Pressure:6 Mpa
11Power Voltage:3 Phase 380V, 50HZ
12Machine Power:2 KW
14Size:1100*1150*1830mm
16Weight:950KG

2 Axis Single Head CNC High Speed Brush Filling Machine

2 Axis Single Head CNC High Speed Brush Filling Machine

2 Axis Single Head CNC High Speed Brush Filling Machine

2 Axis Single Head CNC High Speed Brush Filling Machine
