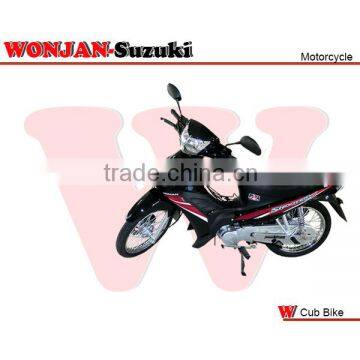

Help CenterCub Bike (110cc) Wonjan-Suzuki Engine, Motorcycle, , Motorbike, Chopper Bike, Autocycle,Gas or Diesel Motorcycle
Related Products
-
Cub Bike (110cc) Wonjan-Suzuki Engine, Motorcycle, , Motorbike, Chopper Bike, Autocycle,Gas or Diesel MotorcycleUS$ 390 - 450MOQ: 5 Pieces -
NEW CONDITION 4-Stroke Engine Type and Gas / Diesel Fuel Gas Cub Bike / MotorcycleUS$ 380 - 460MOQ: 32 Sets
-
WONJAN 110cc Super Cub Bikes With CCC EEC OEM Certificates for NigeriaUS$ 335 - 390MOQ: 126 Sets
-
110cc Super Cub Bikes With EEC OEM for Cheap SaleUS$ 345 - 410MOQ: 105 Sets
-
4-Stroke Engine Type and Gas / Diesel Fuel Gas Cub Bike / MotorcycleUS$ 380 - 460MOQ: 105 Sets
Specifications

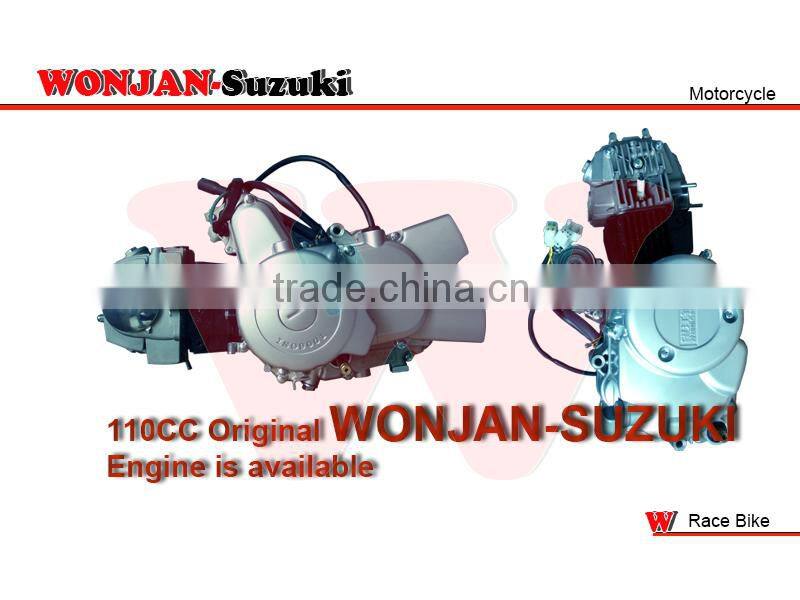

Engine: 110cc original wonjan-suzuki engine is avaiable, classic and durable.
ENGINE DETAIL | |||
MODEL: |
1P52FMH |
MAX POWER: |
5.3kw / 8000r/min |
CYLINDER: |
SINGLE |
MAX TORQUE: |
7.2n / 6000r/min |
CYLINDER ARRANGE TYPE: |
HORIZONTAL |
EXCEED ACCELARATION: |
13sec. |
COOLING TYPE: |
AIR |
GRADEABILITY: |
30° |
STROKE: |
4 STROKE |
BRAKE TYPE: |
MANUAL |
START UP: |
ELECTRONIC AND KICK |
START ACCELARATION: |
12.5sec. |
BORE STROKE: |
52*49.5mm |
IDLING SPEED: |
1500r/min |
DISPLACEMENT: |
110cc |
ACCELARATION NOISE: |
76db |
COMPRESSION RATION: |
9.0:1 |
ENVIRONMENTAL STANDARDS: |
GBIII |
CONSUMPTION: |
1.9L/100km |
GEAR RANGE: |
INTERNATIONAL 4 |
PRODUCT DETAIL | |||
NAME: |
ASIA LION IV |
WHEEL RIM TYPE: |
SPOKE |
MODEL: |
WJ110-V(4) |
WHEEL RIM DIMENSION: |
FRONT:1.4-17 / REAR:1.6-17 |

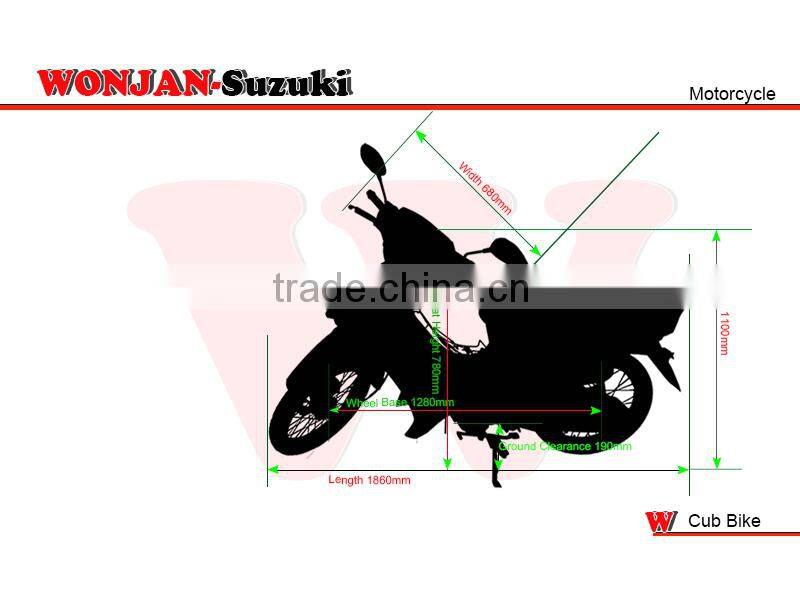

DIMENSION: |
1860*680*1100mm |
TIRE SIZE: |
FRONT:2.50-17 / REAR:2.75-17 |
WHEEL BASE |
1280mm |
BATTERY: |
12V5Ah MAINTENANCE WATER |
SEAT HEIGHT: |
780mm |
SHOCK ABSORBER: |
WITH OIL |
MAX SPEED: |
80km/h |
CASTOR ANGLE: |
15° |
MIN GROUND CLEARANCE: |
190mm |
HANDING BAR ROTATE ANGLE: |
35° |
MAX LOADING |
150kgs |
COLOR: |
RED |
FUEL TANK CAPACITY: |
4L |
BRAKING SYSTEM: |
FRONT:DISC / REAR:DRUM |
METER: |
COMMON |
N.W.: |
85kgs |
TRANSMISSION MODE: |
CHAIN |
G.W.: |
93kgs |
LIGHTS DETAILS | |||
HIGH BEAN LIGHT: |
12V 35W |
||
LOW BEAN LIGHT: |
12V 35W |
||
TAILLIGHT: |
12V 21W |
||
WINKER: |
12V 5W |
||
LISENCE LIGHT: |
12V 5W |
||

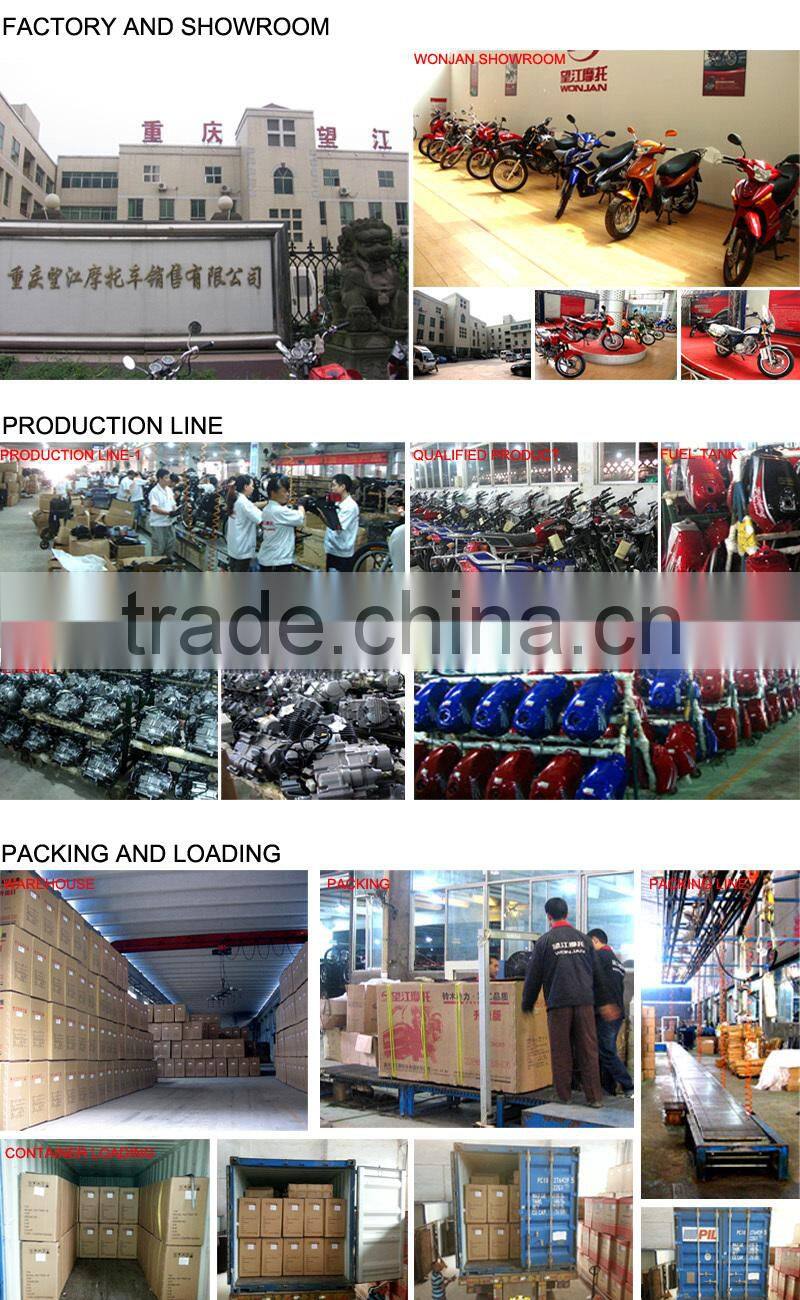

Initially established in 1984, Chongqing Wonjan Motorcycle Mfg Co., Ltd. is a large sized enterprise. Suzuki invested in Wonjan with its technology and capital in 1993, which makes Wonjan stand in the leading position in the motorcycle industry in China.
The product line of Wonjan covers motorcycles and engines with displacement ranging from 50cc to 300cc. Having been engaged in this field for more than 20 years, our company has passed the evaluations of ISO9001 and CCC certifications. Up to present, Wonjan motorcycles have been exported to Southeast Asia, America, Africa and Europe.With market as our orientation, Wonjan always put service at the top place, endeavoring to provide our customers with the best before and after sales services.
Today, all staff members of our company are making a great effort with the spirit of enterprise to improve the production technology and management in order to create a bright future.
1, Provide good product to you
2, Develope more new style and model, making you have multiple choice
2, Transport motorcycle quickly and safty to your side, send the best transportion way to you to save your money
3, Collecte and solve your problem after services
