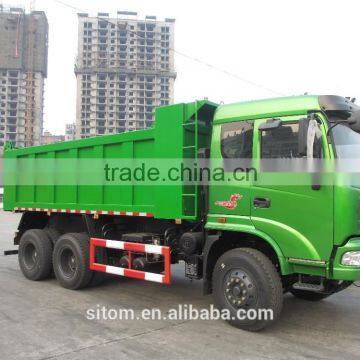

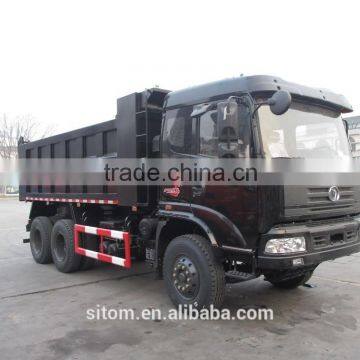

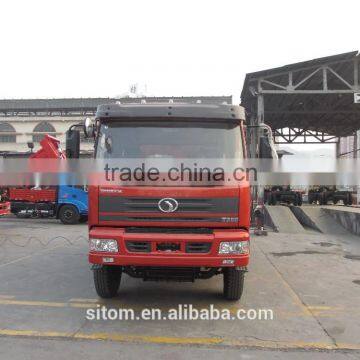

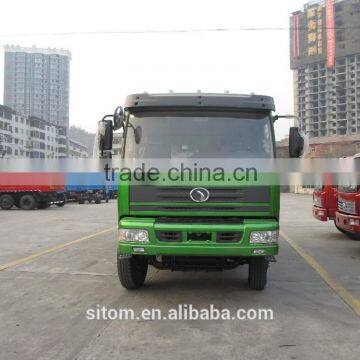

Help Center25 Tons 6x4 Dump Truck of T260 Cabin Series
US$ 18,000 - 24,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
251 - 350hp
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8x4 Dump Truck for MiningUS$ 40,000 - 50,000MOQ: 1 Unit -
10 Tons 4x2 Dump Truck With Cummins EngineUS$ 13,000 - 14,000MOQ: 2 Units
-
8 Tons 4x2 Dump Truck With Cummins EngineUS$ 13,000 - 14,000MOQ: 2 Units
-
6 Tons 4x2 Dump Truck With Yuchai EngineUS$ 12,000 - 13,000MOQ: 2 Units
-
16 Tons 4x2 Dump Truck With Cummins EngineUS$ 14,000 - 15,000MOQ: 1 Unit
Drive Wheel
6x4
Capacity (Load)
21 - 30t
Horsepower
251 - 350hp
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Engine Capacity
6 - 8L
Gross Vehicle Weight
40000
Place of Origin
Hubei, China
Brand Name
TRI-RING
Model Number
STQ3252L14Y9S13
Dimensions (L x W x H) (mm)
7740x2490x2990mm
| Overall Parameters |
Truck model | STQ3252L14Y9S13 | Wheel base | 3650+1350mm |
| Design Gross Vehicle Mass | 25000kg | Overall dimension(L×W×H) | 7740mm×2490mm×2990mm | |
| Legal Gross Vehicle Mass | 40000kg | Max economical speed | 80km/h (1700rpm) | |

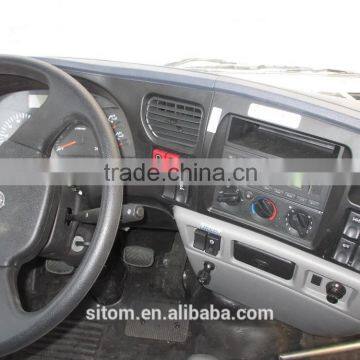

| Cabin | Cabin Model | T260 LHD semi-high roof tipper cabin(1 sleeper) | ||
| Cabin Default Config | 1.Two-point suspension, Mechanical tilting, Manual window, mechanical suspension seat for driver 2.Laminated glass windshield, sunshield, narrow size bumper |
|||
| A/C | Merit brand A/C | |||
| Engine | Brand @ Model | Yuchai @ YC6A260-33 | Intake way | Turbo inter-cooling |
| Rated power & speed | 260HP (191KW) & 2300rpm | Max. torque | 1000N.m | |
| Engine type | in-line,4-stroke,water-cooled | Bore x Stroke | 108mmx132mm | |
| Displacement | 6 cylinders,7.255L,diesel | Green Band | 1200~1700RPM | |
| Emission standard | Euro-III | Fuel injection pump | Mechanical Pump | |
| Gearbox | Brand @ Model | Fast·Fuller @ 9JS119TB | ||
| Type | Manual,9 forward gear,1 reverse gear,rated input torque 1190N.m | |||
| Gearbox ratio | Forward:11.02, 6.55, 4.64, 3.36, 2.71, 1.95, 1.38, 1.00, 0.81 Reverse:11.52 |
|||
| Suspension System |
Chassis frame | frame breadth 300mm, double-deck(8+8mm) | ||
| Front axle | 5T Dongfeng Dana 153 front axle x1 | |||
| Rear axle | 13T Dongfeng Dana 462 single-reduction rear axle x2,default ratio:5.143 | |||
| Front suspension | Number/Thickness of leaf spring: 9/16mm | |||
| Rear suspension | Number/Thickness of leaf spring: 12/22mm | |||
| Bodyworks | Tire & Wheel Rim | 12.00R22.5 aeolus brand tubeless tire x11, guiding pattern for front wheel and driving pattern for rear wheel, 22.5x9.00 silver color rim | ||
| Fuel Tank | 280L alloy steel fuel tank | |||
| Air Filter | Yili brand air filter suitable for desert environment | |||
| Cargo Box & Modification | Cargo Box | 5.2m long, width and height of cargo box can be customized | ||
| Modification | Concrete Mixer,Tanker etc. | |||
| More Details | 1. camel brand maintenance free battery,Yili Brand desirt air filter,Merit Brand A/C | |||
| 2. four alloy steel compressed air tank | ||||
| 3. export standard engine | ||||
| 4. Tri-Ring logo,instruction in English for cabin flip and air filter | ||||
| 5. shot-blasting and anti-rust treatment for chassis frame | ||||
