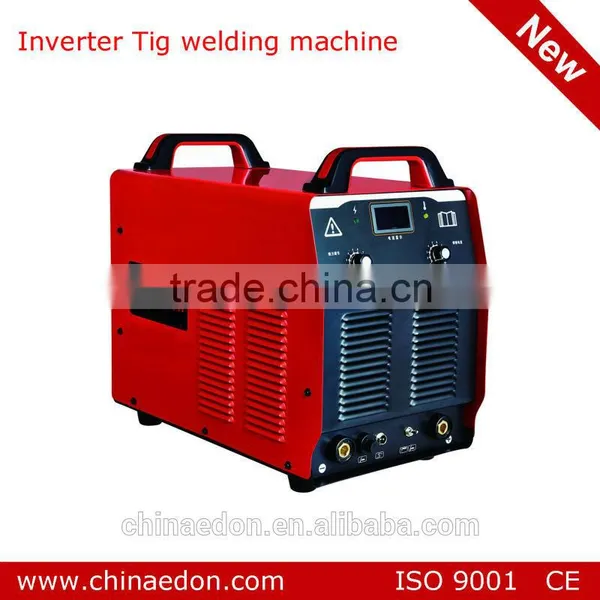

DC TIG INVERTER WELDING MACHINE
US$ 150 - 300
MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
EDON
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC TIG INVERTER WELDING MACHINEUS$ 51 - 135MOQ: 100 Sets -
DC TIG INVERTER WELDING MACHINEUS$ 101 - 180MOQ: 150 Sets
-
EDON Portable DC Inverter TIG-160 140A Welding MachineUS$ 80 - 130MOQ: 50 Sets
-
Portable DC Inverter TIG-200 Welding MachineUS$ 80 - 130MOQ: 50 Sets
-
Plastic Portable DC Inverter Welding Machine ExpertTig-300US$ 150 - 200MOQ: 50 Sets
Condition
New
Place of Origin
Zhejiang, China
Brand Name
EDON
Model Number
TIG-300/400
Arc Current
10-400
Pulse Frequency
50/60HZ
Pilot Arc Current
10
Rated Duty Cycle
35%
Motor Type
DC Motor
Dimensions
580*334*488
Usage
welding metal
Voltage
380V
Power(W)
8.4-13KVA
Certification
CE
1. Light and portable, fan-cooled, thermostatic protection, HF Arc-starting and strong welding permeaility.
2. Quick and easy to use.
3. Even and beautiful welding surface.
4. Suitable for pipe welding, thin sheet fabrication, special materials such as titanium.
ITEM |
TIG-300 |
TIG-400 |
|
Voltage/frequency |
AC380V±10%50Hz/60Hz |
AC380V±10%50Hz/60Hz |
Rate input capacity(KVA) |
8.4 |
13 |
Output current range(A) |
25-300 |
25-400 |
Duty cycle(%) |
60 |
60 |
Output voltage(V) |
22 |
26 |
No-load voltage(V) |
54 |
60 |
Arc starting |
HF |
HF |
Efficiency(%) |
85 |
85 |
Power factor(COS) |
0.93 |
0.93 |
Blowing time(S) |
5 |
5 |
Net weight(kg) |
22 |
28 |
Cross weight(kg) |
26 |
33 |
Protection class |
IP21 |
IP21 |
Insulation class |
B |
B |
Dimension(mm) |
480*205*355 |
580*334*480 |
Company Information
Zhejiang Edon Mechanical & Electrical Co., Ltd., founded in September 2001, is a high-tech enterprise integrating R&D, production, sales and service of electric welders, air compressors and single-phase and three-phase asynchronous motors. The three production bases have a total floor area of 50,000 square meters. There are 200-odd sets of high-precision production and inspection equipment and more than 600 employees including over 20 senior managers, 15 engineers and over 30 technicians. The production capacity of electric welders takes the lead. Our company annually yields more than 400,000 inverter welding machines and DC welders and over 150,000 AC arc welders. There is a complete variety of electric welders including ZX7 manual arc welding machines, TIG argon arc welding machines, CUT plasma cutting machines, WSE AC and DC argon arc welding machines, NBC carbon dioxide gas shielded welding machines and moving-iron and tapped AC arc welding machines. Our products are used by customers in six continents except Antarctica and the independent brand occupies more than 80% market share.
Our company always insists on the policy of “People Foremost, Science and Technology Constitute a Primary Productive Force” and the tenet of “Survival by Quality, Customer by Credit”, and wins favor of customers. The production capacity is doubled year by year. In 2011, our company was awarded Wenling “Key Industrial Enterprise” and “Enterprise with Standard Import and Export Trade”. Through the efforts made in 2011 and the first half of 2012 coupled with the support and cooperation of dealers, our company responds to the national call, and eliminates the backward and high energy-consuming products. The high-efficiency and energy-saving inverter DC welders account for more than 60% of our products. Our company will grasp market trend, keep up with the industry development trend, increase the core competitiveness, carry out the strategies of “standardization”, “systematization” and “internationalization”, promote development and develop into a large modern enterprise with excellent service, the modern enterprise system and harmonious and sustainable development. Guided by the concept of “Concerted Efforts, Success Sharing, Sustainable Operation”, our company serves the welder industry by virtue of superior-quality products and solid technical force. We will become an outstanding enterprise in the industry through the unremitting efforts of all staff. Welcome new and old customers at home and abroad to visit for cooperation and brilliance.
Our company will be your best choice!
Packaging & Shipping
Accessories: electrode holder with cable, earth clamp with cable, mask, brush.
Packaging: carton or plastic.
Delivery time:35days
