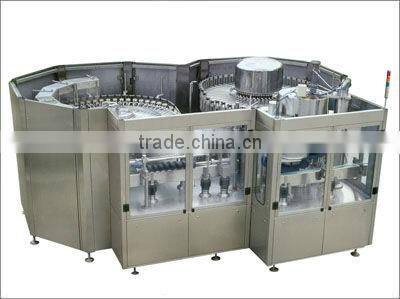

20 Liter Mineral Water Filling Machine

20 liter mineral water filling machine

Competitive Advantage:

Main features

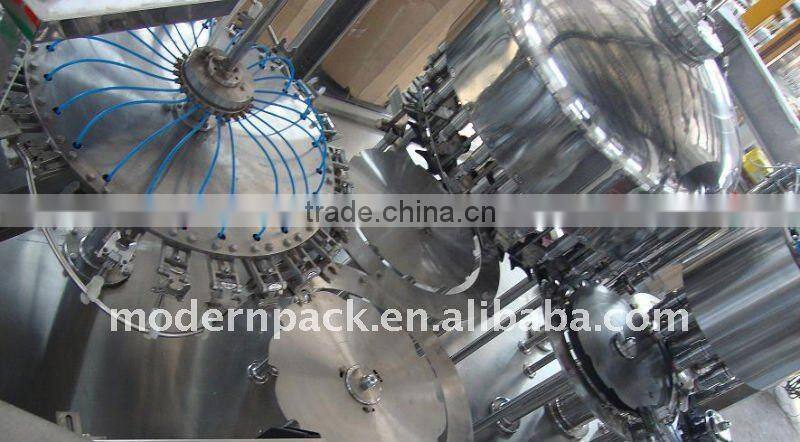

1. Rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

2. Filler

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.

3. Capper

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.

Equipment structure
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control

Main configuration
Touch screen: THINGET
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Autonics
Proximity switch: Autonics
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin

       Zhangjiagang Modern Beverge Packing Machinery Co.,LTD. is a collection development, research, design, production and technical services and marketing into one professional engaged in the manufacture of mechanical equipment packages beverages, food packaging machinery equipment, high-tech enterprises. Companies have excellent development and design system experienced technical team, continually introducing Italy, and Germany abroad latest beverage packaging machine games, focusing on the reliability of the overall performance, development and improvement of their own products. Our company mangaerial concept is "cooperate honestly,base on the credit,be superior in quality".We would like to cooperate with all old and new customers to co-develop,establish long-term stable business relationship,and make a bright future together. Provide long-term mineral water, pure water (bpd) gasoline production lines on a tea, juice beverages hot, cold beverage production lines on a carbonic acid beverages bottled production line on a beverage tastes gasoline production lines on a purely Shengpijiu gasoline production lines on a yellow wine and white spirit, wine beverage production lines and various ancillary equipment, and the turn key contract works.
