Specification of 4T/H Turn key Project Automatic UHT Milk Processing Line
It is widely used for high temperature instant sterilization of the liquid material such as bean milk ,milk and fruit juice
The characteristic of very short heating time which cause little nutrition loss make it an ideal small sterilizer .
This equipment is used in/for instantly sterilizing the fresh milk, fruit drink,
Beverage, ice-cream, sauce, soybean milk, condensed milk, alcohol and other
Liquids of food and drinks; and some other fluids pharmacy.
This machine adopts the present most advanced welding technology, selects the import high quality polish stainless steel pipeline. It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even machine, it also can be used for thick material. Our factory is a manufacturer who produced the first over high temperature sterilizing machine in China. At present, there are several thousand set which have been used in the whole country.
1. The machine can sterilizing liquid substances like Chinese rice wine, condiment, soy etc;
2. The machine adopts heat recovery technology, make the substances tastes good;
3. The entire unit adopts stainless steel material, making sure that the machine meet with the requirement on the drinks hygienic standard;
4. Good heat transfer effect, high heat recovery, less energy consumption;
5. The main control components, valve parts and accessories are imported parts, with long life.
6. Adopting PLC control, equipped with the automatic backflow system, ensuring materials achieving sterilization effect by 100%;
7. Simple structure, easy to clean, convenient operation, low cost of maintenance.
8.Classification of Plate Sterilizer: Automatic configuration and Semi-automatic configuration
Parameters of 4T/H Turn key Project Automatic UHT Milk Processing Line
| Model | GL-UHTP-1000 | GL-UHTP-2000 | GL-UHTP-3000 | GL-UHTP-4000 | GL-UHTP-5000 |
| Capacity | 1000L/H | 2000L/H | 3000L/H | 4000L/H | 5000L/H |
| Heater exchange area | 16M2 | 26M2 | 38M2 | 46M2 | 56M2 |
| materail inlet temperature | 5°C | 5°C | 5°C | 5°C | 5°C |
Material outlet temperature |
5°C | 5°C | 5°C | 5°C | 5°C |
| Sterilizing temperature | 137°C | 137°C | 137°C | 137°C | 137°C |
Heat preservation time |
4Seconds | 4Seconds | 4Seconds | 4Seconds | 4Seconds |
Cool water temperature |
1 °C | 1 °C | 1 °C | 1 °C | 1 °C |
Cool water consumption |
3000L/H | 4000L/H | 6000L/H | 8000L/H | 12000L/H |
| weight | 1000kg | 1100kg | 1250kg | 1400kg | 1550kg |
| power | 3kw | 4kw | 5kw | 6kw | 7kw |

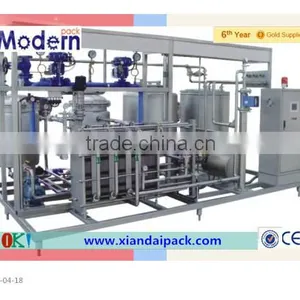

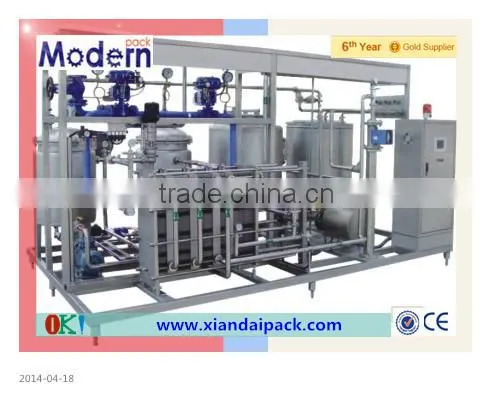

Main pictures of 4T/H Turn key Project Automatic UHT Milk Processing Line
Our packing of 4T/H Turn key Project Automatic UHT Milk Processing Line
What will you get:
1.Your inquiry related to our product & price will be replied within 24hours;
2.Well-trained & experienced staff are to answer all your inquiries in English or Chinese;
3.Working time: 08:00 ~17:00, Monday to Saturday(UTC+8);
4.OEM & ODM projects are both available;
5.Your business relationship with us will be confidential to any third party;
6.Good after-sale service offered, please get back to us if you got any questions;
ject infomation
(1) What is the capacity per day?
(2) What do you want to produce?
(3) How long will the machine work per day? 8 hours or more?
(4) What is the raw material?
(5) What is the filling type or unit filling volume,Pls enclosured the pictures.?
(6) Do you need boiler,chiller etc.?
(7) Where is your factory?
(8) Do you have a budget?and how much is it?
If you tell me the above infomation,i can make a Scheme for you.
2.Payment terms
(1) T/T:30% as deposit,the remaing amount should be paid before shipping.
(2)L/C:30% as deposit should be paid by T/T.
