3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine

3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine photo-1
3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine photo-2
3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine photo-3
3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine photo-4
3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine photo-5
3in1 Bottle Dairy Milk Filling and Aluminum Foil Sealing Machine photo-6
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shanghai 3in1 bottle dairy milk filling and aluminum foil sealing machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food
Packaging Type Case
Packaging Material Wood
Automatic Grade Other, Automatic, Automatic
Driven Type Electric
Voltage 380V
Power 16KW
Place of Origin Jiangsu, China
Brand Name MODEN
Model Number RCGF
Dimension(L*W*H) 3050*2060*2100
Weight 4500kg
Certification CE ISO SGS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

3in1 bottle dairy milk filling and aluminum foil sealing machine

The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as milk, fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.

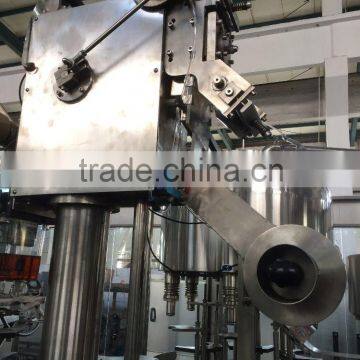

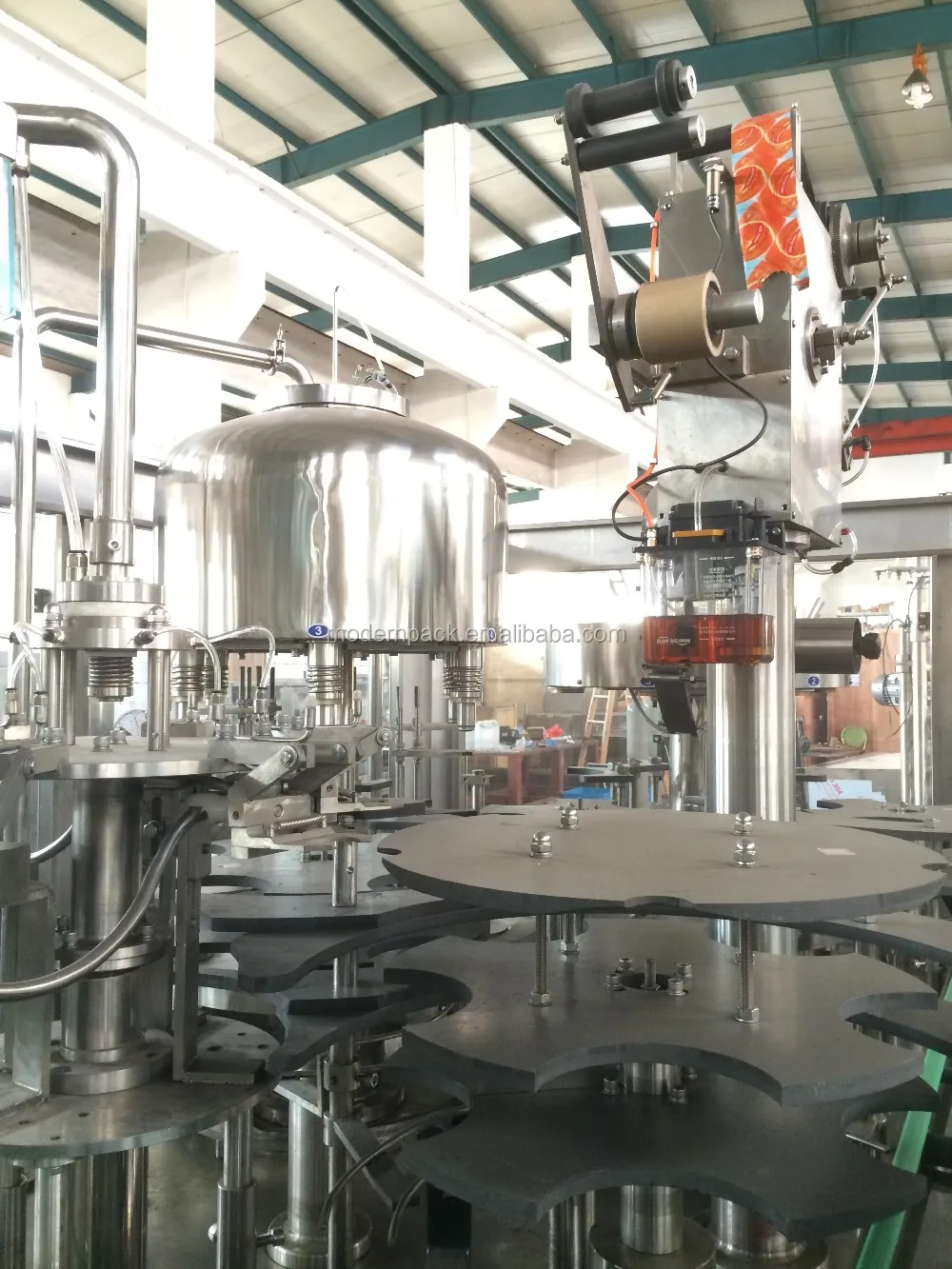

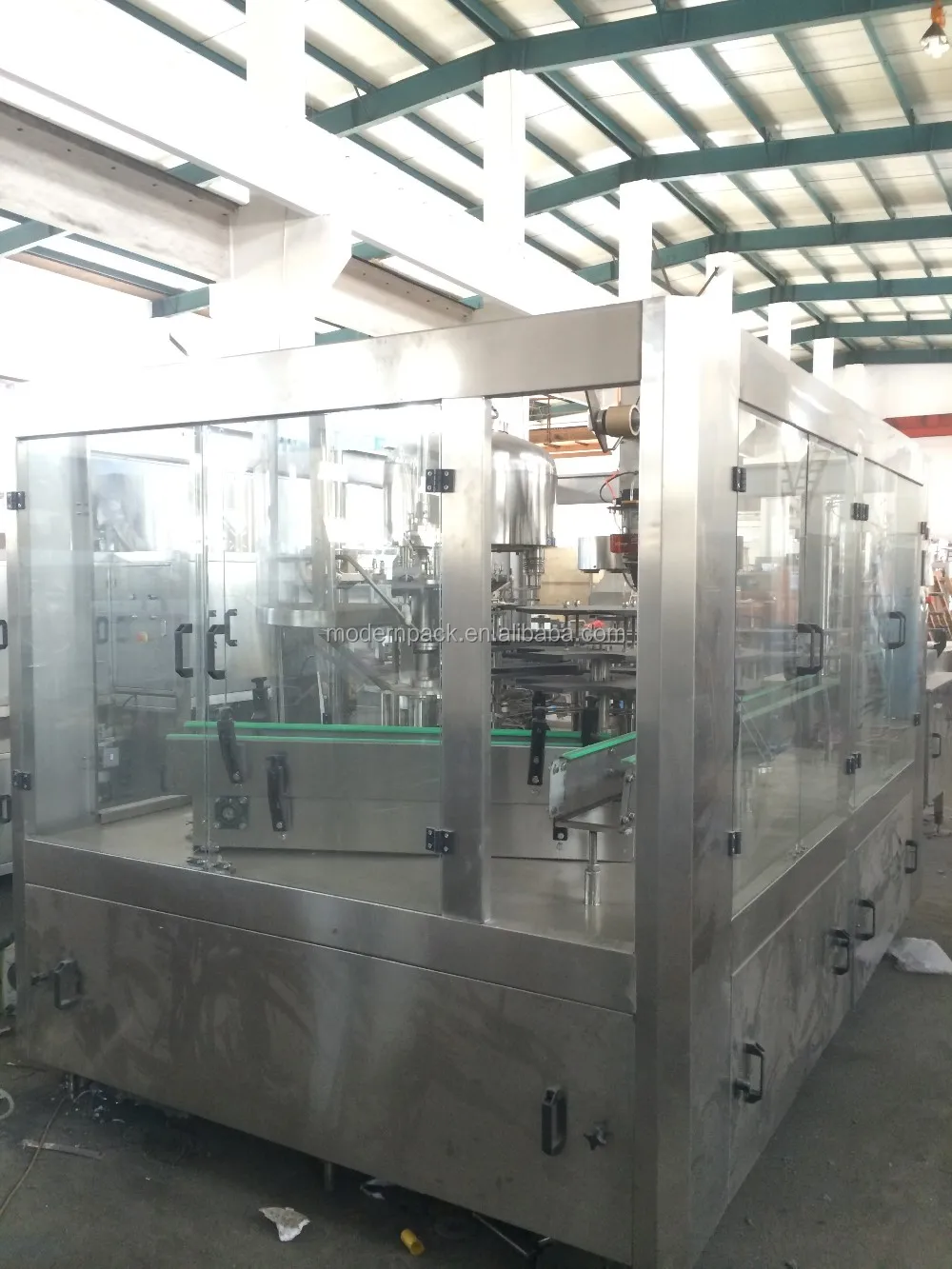

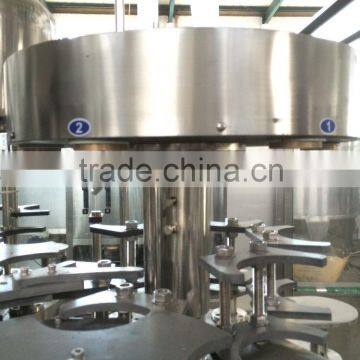

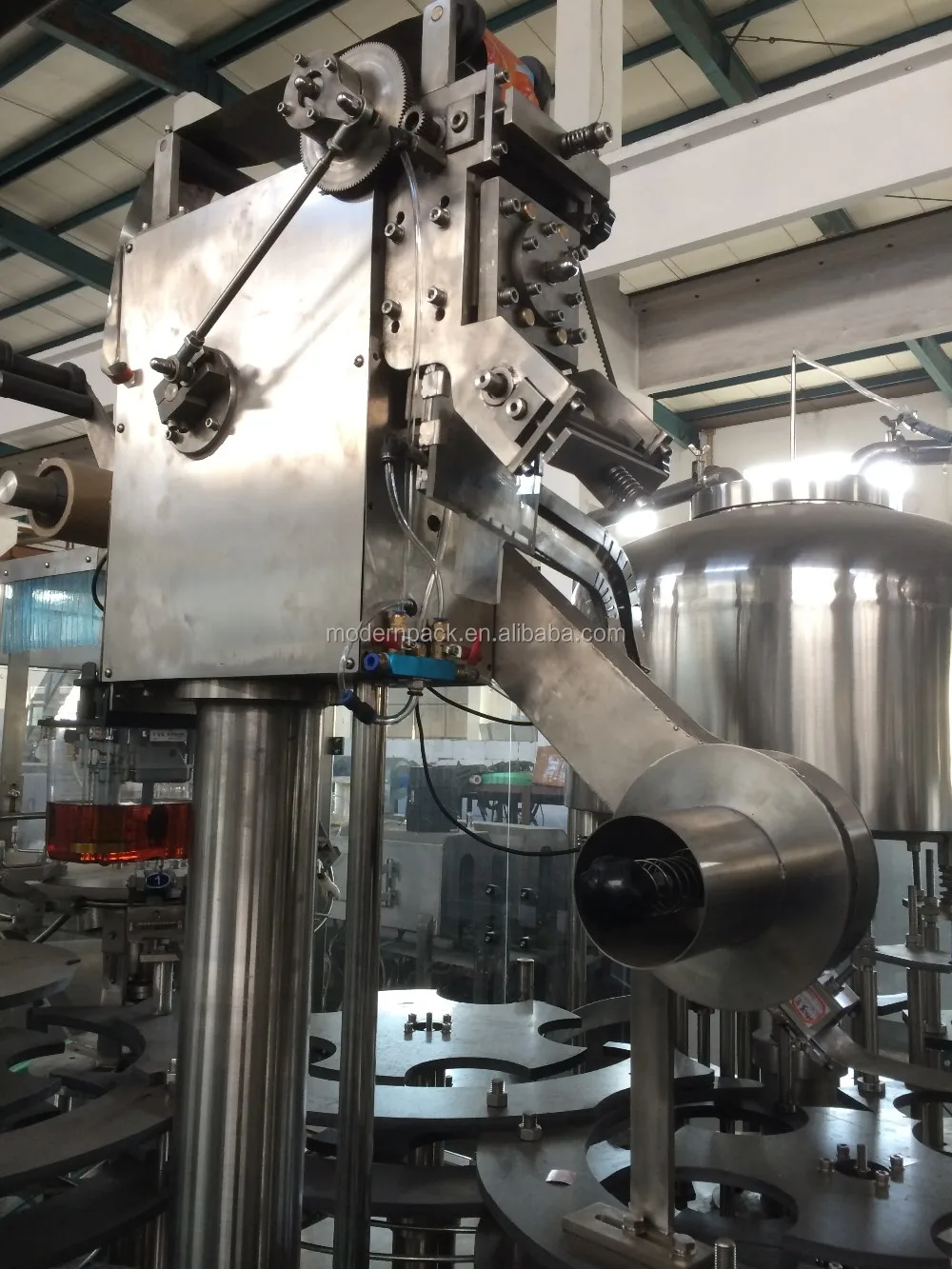

Detailed Images

CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers.


The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.




Product Main Technical Date
3in1 bottle dairy milk filling and aluminum foil sealing machine
Item/model
RCGF24-2-18
Capacity(bph)
8000-12000
Filling heads
24
filming heads
2
sealing heads
18
Filling precision
1%(Liquid level)
Bottle dimension Bottle diameter
ø50-ø100,height150-310
Flushing pressure
0.25MPa
Power(KW)
16
Voltage
380VAC 50/60Hz or according to customer's request
Outline dimension
3050*2060*2100
Total Weight(kg)
4500
Packing & Delivery

Our services



The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.


Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.

After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.
