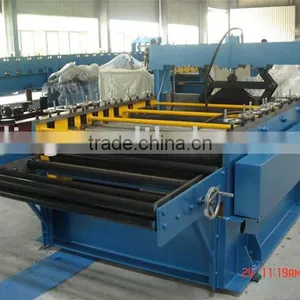

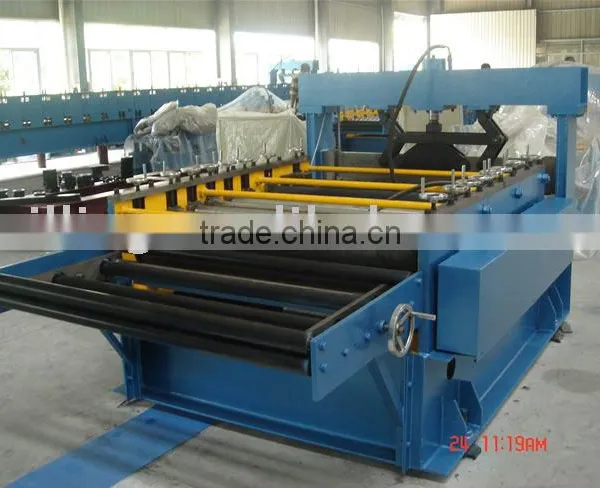

Roll Forming Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WILLING	Model Number	WLFM25-183-1110
Machine Type	Roll Forming Machine	Raw Material	Sheet / Plate Rolling
Power	Hydraulic	Extra Services	Cut To Length
Certification	CE

Product Description

Specifications

We are specialied in making Roll Forming Machine, we can design all kinds of pattern.

Roll Forming Machine Features:
1) Consists of uncoiler and its base, coil sheet guiding equipment, film covered
device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table
2) Material spec: colored and galvanized steel sheet at yield stress 33KSI
3) Thickness of coil sheet: 0.5 - 0.6 mm
4) Coil width: 1000mm5) Working speed: 3.0 - 4.0m/min (step distance at 380mm)
6) Power requirement: a) Main motor power: 7.5kW b) Hydraulic station power: 5.5kW
7) Passive uncoiler max. capacity: 5,000kg
8) Quantity of stands: 15 groups
9) Controlling system: PLC
10) Type of cutting: roll-formed and length-set cutting
11) Machine dimension: about 18,500 x 1,500 x 1,400mm
12) Total weight: about 9,500kg
13) Voltage: 380V 3 phase 60Hz or at buyer's requirement
14) Working flow: decoiling the sheet-sheet guiding-film covering-roll forming-measure length -pressing-cutting the panel-panels to the supporter
