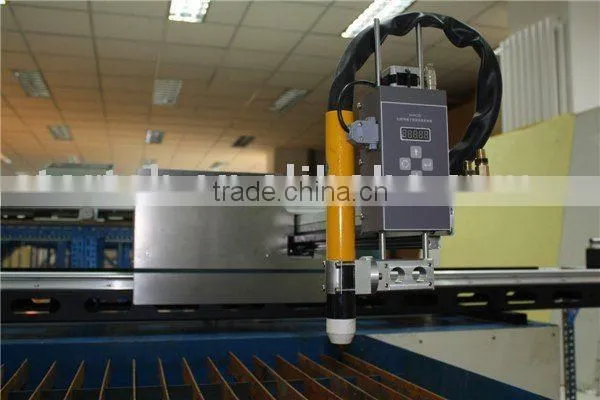

Help CenterTorch Gas Control
Related Products
Specifications
1.torch gas control,precisely2.smart and powerful
3.excellent anti-interference performance
4.best quality with good price
torch gas control Specifications
1. Stepper motor instead of conventional DC motor ,makes it faster and smoother in addition to significantly extended service life.
2. Directly displaying the height of cutting nozzle in capacitance height control mode
3. Integration of mechanical lifting device and height controller
4. Circuit uses SMD technology without any adjustable devices; all digital control technology ensures high product reliability.
5. The feature of "one-keystroke height calibration" guarantees that in any circumstances, the user only needs to press one key to calibrate the absolute height measurement and achieve linear height measurement.
6. The shell uses tamper-proof, waterproof and moisture-proof aluminum box sealed design, particularly applicable to the severe environment
7. The interface is simple and easy to control. It is suitable for any flame cutting and plasma cutting CNC system or using alone.
8. Asynchronous communication function enables connection with CNC system and facilitates parameter setting, automatic/manual control, taper angle transition control and data exchange
Major Technical Specifications
Input Voltage |
DC 24V±2 V |
Rated Current |
3 A |
Applicable motor |
17/23 HS series of stepper motors |
Manual adjustment range |
0-100 mm |
Automatic height control range |
3 -30 mm |
Adjusting speed of automatic height control |
3000 mm/min (30 ° slope) |
Control precision |
±0.5 mm |
Dimensions of box body |
(155 × 87 × 71) mm |
Total weight of capacitance height control |
1.990kg |
Total weight of arc voltage height control |
1.645kg |
Detection system |
capacitance height detector and arc voltage height detector |
