START NEW --28 Segment-start Microstep Step Motor Driver ###!!!!!! MX Series

START NEW --28 Segment-start Microstep Step Motor Driver ###!!!!!! MX Series thumbnail-1
START NEW --28 Segment-start Microstep Step Motor Driver ###!!!!!! MX Series photo-1
US$ 1 - 370 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
START
Model Number:
MX-2H304D
Contact Supplier Request Quote Chat Now
Beijing Flourishing Start Control Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name START
Model Number MX-2H304D
Output Type DC
Connection Other

Specifications

2/3 phase stepper motor driver
28 segment step
Max 60000 step
Signal and doubt pulse mode. Self-test, Phase memory function



 stepper motor driver

START NEW --28 segment-start Microstep step motor driver ###!!!!!! MX SeriesSTART NEW --28 segment-start Microstep step motor driver ###!!!!!! MX SeriesSTART NEW --28 segment-start Microstep step motor driver ###!!!!!! MX SeriesSTART NEW --28 segment-start Microstep step motor driver ###!!!!!! MX SeriesSTART NEW --28 segment-start Microstep step motor driver ###!!!!!! MX Series

Model

Phase

Segment Step

Output Current

Supply Power

& TYPICAL VALUE

Dimensions

(mm)

Weight(kg)

Size

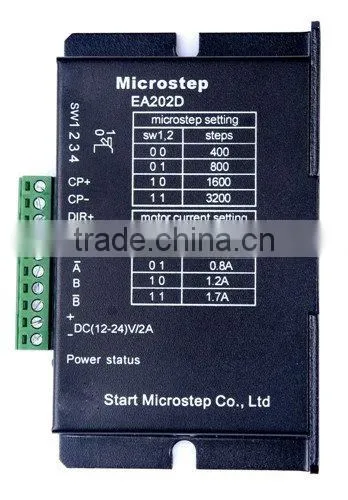

EA202D

2 phase

2/4/8/16

0.4-1.7A (Max)

4 ranks, accuracy 0.4A

POWER: DC24V

POWER OVER 50W

100×60×19

0.17 kg

Micro

MU-2H202D

2/5/10/20/40

1.7A

customization, non-adjust



MX-2H304D

2 phase

22 ranks

Max micostep 200

Max step 40000

0.2A-3.0A (Max)

16 ranks, accuracy 0.2A

DC(24-40)V, Typical value DC24,32V

POWER OVER 100W

123×76×31

0.27 kg

Min

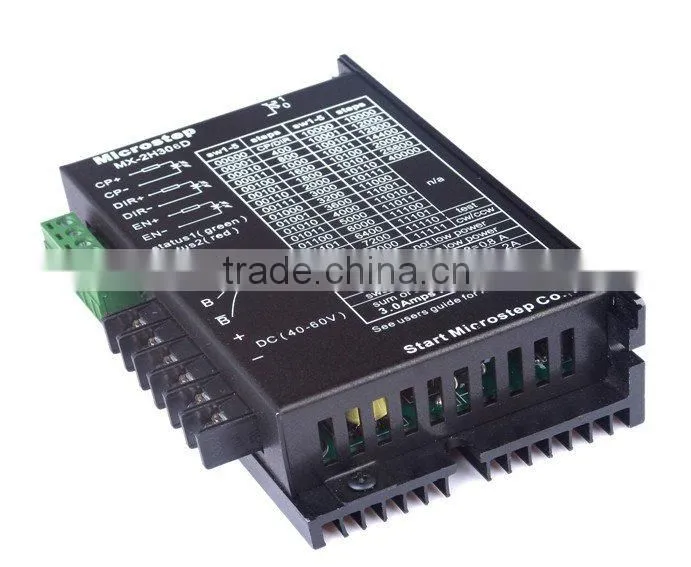

MX-2H306D

DC(40-60)V, Typical value DC50V

POWER OVER 150W

123×76×38

0.35 kg

Min Thicken

TX-2H504D

28 ranks

Max step 60000

0.4A-5.0A (Max)

16 ranks, accuracy 0.4A

DC(24-40)V, Typical value DC24/ DC 32V

POWER OVER 150W

123×76×31

0.27 kg

Min

TX-3H504D

3 phase

28 ranks

Max step 60000

0.3A-5.2A(effective value)

16 ranks, accuracy 0.3A

DC(24-36)V, Typical value DC24 / DC 32V

POWER OVER 150W



MZ-2H504A

2 phase

22 ranks

Max step 40000

0.4A-5.0A (Max)

16 ranks, accuracy 0.4A

AC(24-45)V, Typical value AC40V

DC(40-60)V, Typical value DC50V

POWER OVER 200W

157×99×56

0.7kg

Medium

MZ-2H506A

AC(40-60)V, Typical value AC50V

DC(60-80)V, Typical value DC70V

POWER OVER 250W

TZ-2H704A

28 ranks

Max step 60000

0.5A-7.5A (Max)

16 ranks, accuracy 0.5A

AC(24-45)V, Typical value AC40V

DC(40-60)V, Typical value DC50V

POWER OVER 250W

TZ-3H504A

3

phase

28 ranks

Max step 60000

0.3A-5.2A (effective value)

16 ranks, accuracy 0.3A

AC(24-45)V, Typical valuAC40V

DC(40-60)V, Typical value DC50V

POWER OVER 200W

TZ-3H506A

AC(40-60)V, Typical value AC50V

DC(60-80)V, Typical value DC70V

POWER OVER 250W



TD-2H611A

2

phase

28 ranks

Max step 60000

0.4A-6.0A (Max)

16 ranks, accuracy 0.4A

AC(70-140)V, Typical value AC80V & AC110V.

POWER OVER 500W

177×122×75

1.1kg

large

TD-3H511A

3

phase

28 ranks

Max step 60000

0.3A-5.2A (effective value)

16 ranks, accuracy 0.3A

AC(70-140)V, Typical value AC80V & AC110V.

POWER OVER 500W

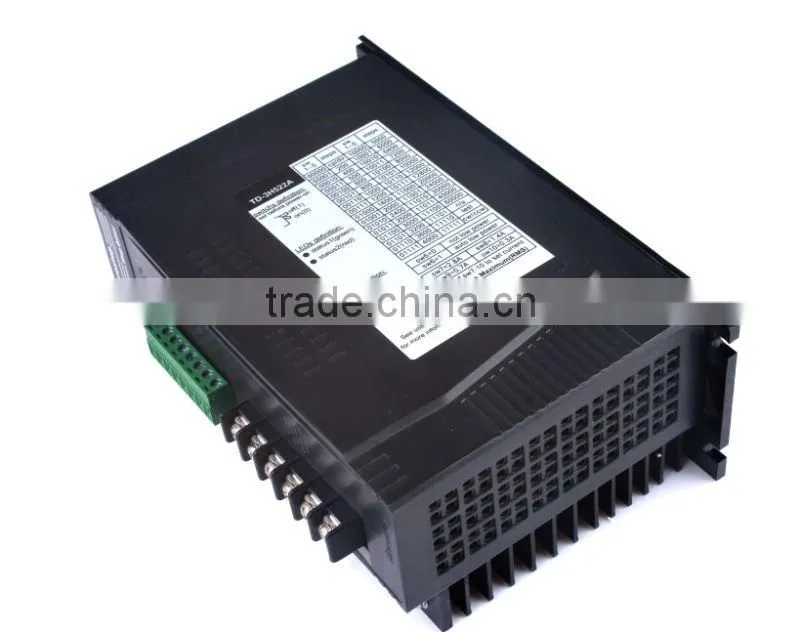

TD-3H522A

AC(180-240)V, Typical value AC220V.

POWER OVER 600W
