Home > Products > Stepper Driver > Driver TZ-3H504A

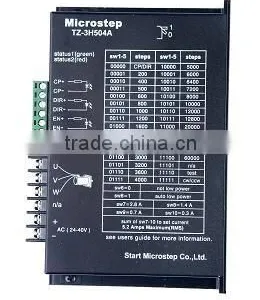

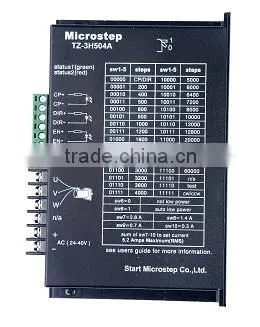

Driver TZ-3H504A
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | microstep/start | |
| Model Number | drive TZ-3H504A |
Product Description
Specifications
Beijing Flourishing Start Digital Technology Co., LtdTZ-3H504ADriver
It is up to 28 segments and Max 60000 steps
TZ-3H504A step drives are mainly used to drive 86 type 3-phase hybrid stepper motor. It is up to 28 segments and Max 60000 steps. Step could be set by 1 to 5 bit of DIP switch. Signal and doubt pulse mode. Self-test function, Phase memory function, auto half current function. Output max current is 5.2A (effective value). Current could be set bye 7 to 10 bit of the DIP switch (it could set 16 speeds current, setting resolution is 0.3A). TZ-3H504A step drives can drive by DC or AC power. AC input is 24V to 45V. Typical value is AC 40V. DC power is also available, positive and negative can access. DC input is 40V to 60V. Typical value is DC 50V. Supply power is over 200W. Relation setting and operation is as shown below.
