Specifications
1.table type plasma cutting machine2.different thickness material and heterotypic sheet cutting.
3. 7" LCD

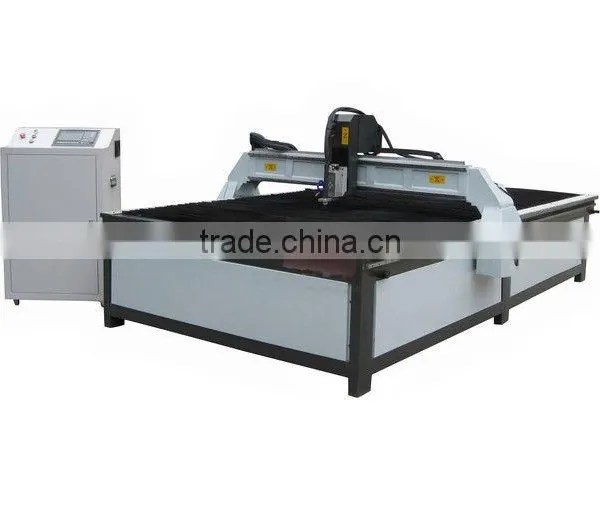

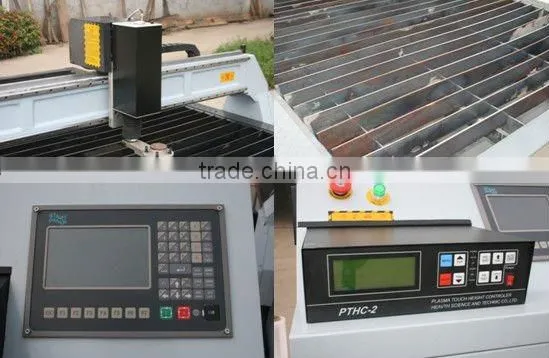

Cnc plasma /Flame cutting machine -1500mmx2500mm
Specifications
1. Welded lathe bed of thick-wall profiled steel, more solid and stable.
2. Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.
3. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4. High accuracy rack transmission. Lower noise, stable and accurate coordinate movement.
5. SH2012AH-QG system and Germany design Software IBE or FASTCAM with auto material saving function.
6. American Cut-Master power supply(Power: 40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
7. Best choice for all kinds of different thickness material and heterotypic sheet cutting.
Major Parameters:
Working voltage |
3-Phase 380V |
Power |
8.5-10.5kw |
Power frequency |
50HZ |
Working Area |
1300x2500mm |
Cutting thickness |
(40A)0.5-10mm (120A)3-16mm (200A)3-25mm |
Cutting Speed |
0-8000mm/min |
CNC control system |
SH2012AH-QG |
Document Transmission Form |
USB Interface |
Working Form |
Untouched Arc Striking |
