Plasma Metal Cutting Controller

Name: Plasma Metal Cutting Controller
Brand: start shaphon
SKU: 127400337
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

start shaphon

Model Number:

SH-2200H

Beijing Flourishing Start Control Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name start shaphon

Model Number SH-2200H

Specifications

plasma metal cutting controller
1.ARM chip
2.10.4"color display screen
3.integrated keyboard panel
4.20-year cutting experie

plasma metal cutting controller

1. Industrial ARM process core, large-scale gate array hardware interpolator

2. 10.4" true color LCD display

3. Internal caching preprocessing technology ensures processing continuity

4. Freely shift cutting technology between plasma and flame by one key

5. Embeded features of cutting industry. Automatic ignition

6. New algorithm and small line smoothing functions

7. Stable and continuous process. No pause between program segments

8. Help's menu with full function prompt. Direct and easy to learn

9. Set acceleration or deceleration at will

10. Newly added arc voltage torch height controller function

11. Dynamic graphic display, scaling, mirroring and rotating of cutting image

12. Electronic gear regulator enables a controller to different machines

13. Perfectly compatible with CAD/CAM and various nesting softwares, such as IBE

14. Deferment, pre-heat, piece, flame radius compensation, continuous regression and power failure recovery.

Model	SH2200H-QG
Processor	Industrial ARM7 CPU
Display	10.4”Color LCD
System offers	Input 16 ports, output 14 ports
Synchronization	2 axes, can extend to 4 axes
Max. speed	When the Pulse Equivalence is 1μ, max speed is 6m/minute
Pulse Equivalency	Electronic gear, numerator and denominator can reach to 1-65535
User’s program space	64M-128M

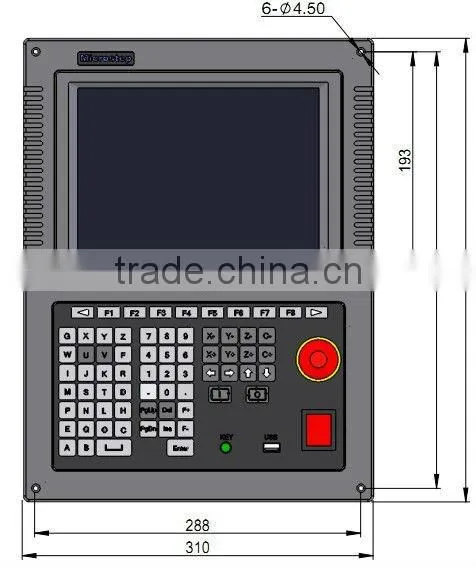

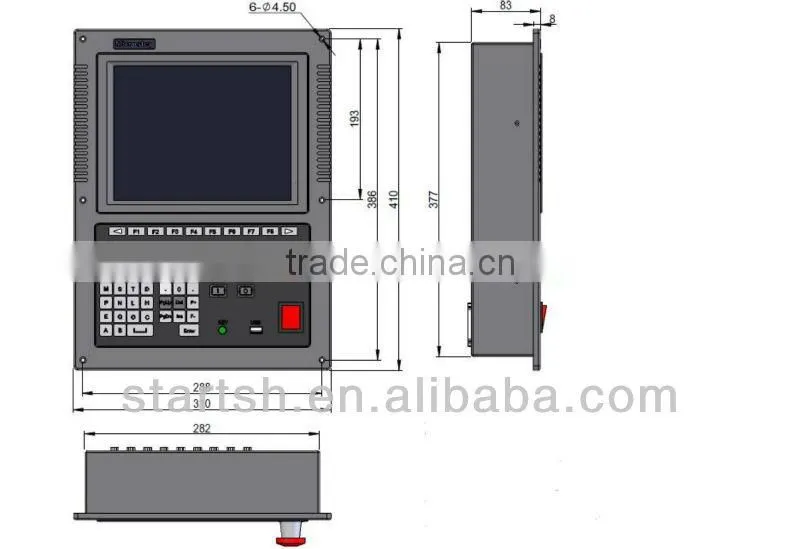

Machine case size	410310119(mm)
