Hydraulic Bending (Folding) Machine

Specifications

 High Quality Bending Folding Machine, Hydraulic Bender, Press Brake

Please tell us below information about press brake, then we can quote,

1. thickness range of steel, which you want to process,

2. length of work table (means the length of steel panel),

3. pressure of machine, unit is KN (Newton) or ton.

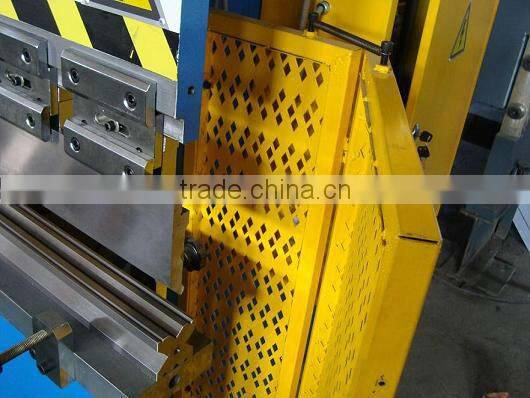

Safety Cover

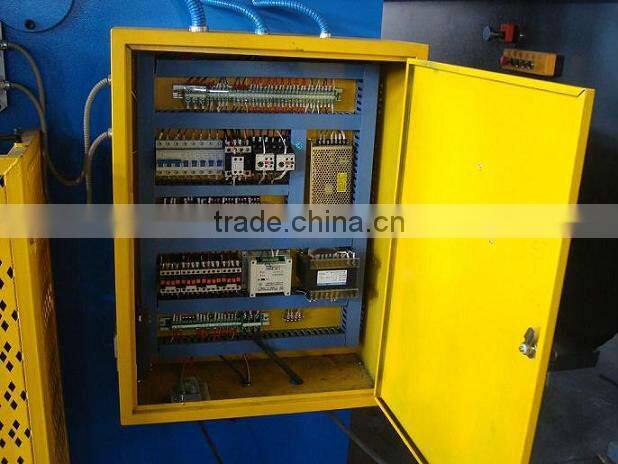

Electrical Box

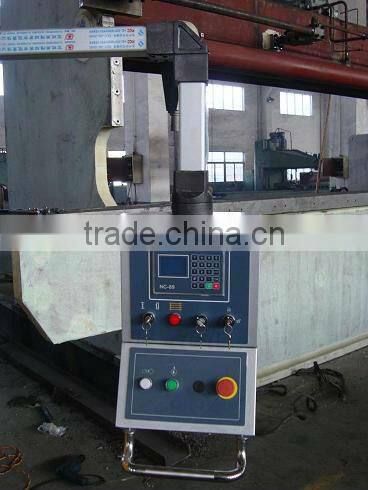

Controlling Panel

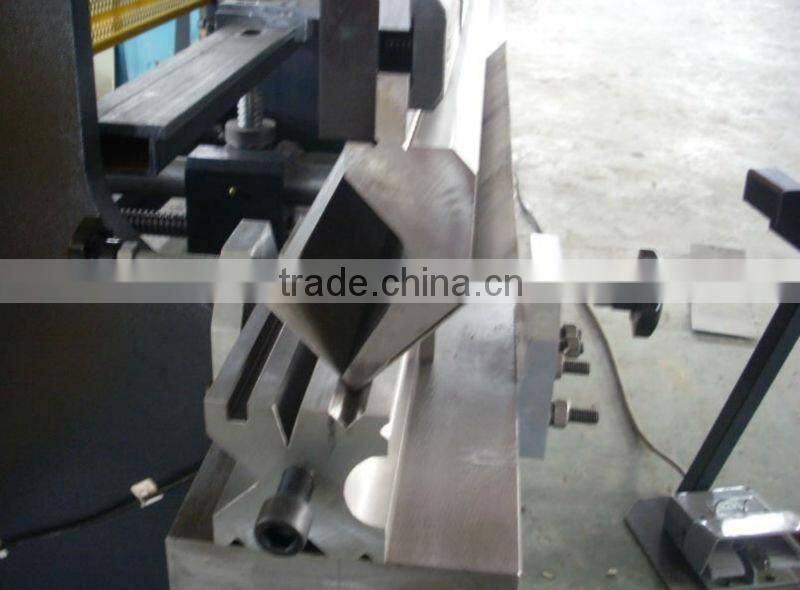

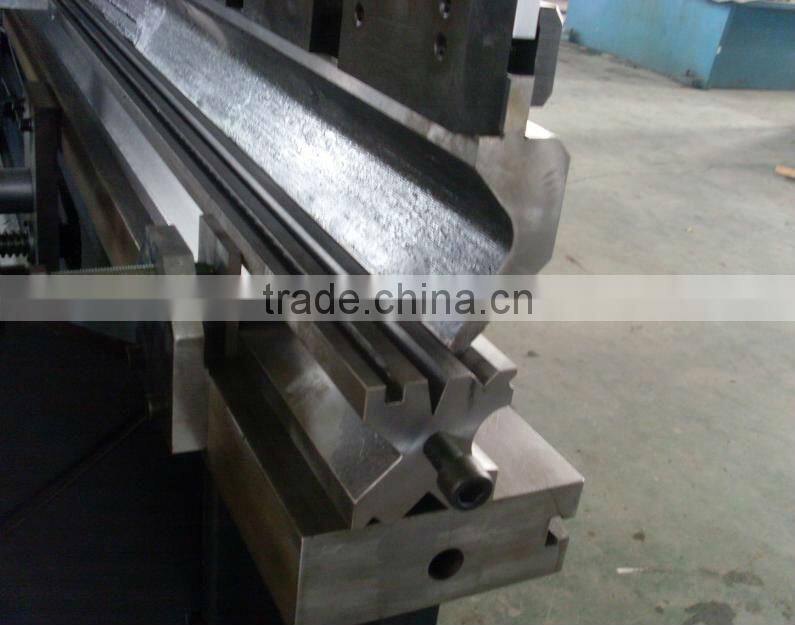

Bending Die

ABOUT MACHINE

1. Standard Features

Ram sync during the stroke is controlled via its mechanical torque synchro system, which is steady and reliable. The stroke of the ram is adjusted within the inner cylinders.

The ram stroke and back guage can be adjusted by motor or manual adjustment with data output through the digital counters.

A hydraulic system is used for the machine. A feeding valve is used to speed up the ram travel to conserve energy. The operations of the machine are realised by the hydraulic valves.

A gear pump is used to reduce the noise of the machine, which can achieve the environmental standard.

The dies are made of carbon steel, which have excellent rigidity and durable. They are equipped with adjusting wedges of high precision.

World-Class elements are used for the electronic system of the machine, which is safe and reliable. There are multi catenation and interlock in the electric system, which can avoid mistakes.

The machine is equipped with full safety guard and emergency stop which can ensure the safety of the operators.

The position of the back gauge and the stroke of the ram are displayed by digital displays.

The bending angle can be adjusted according to the displays.

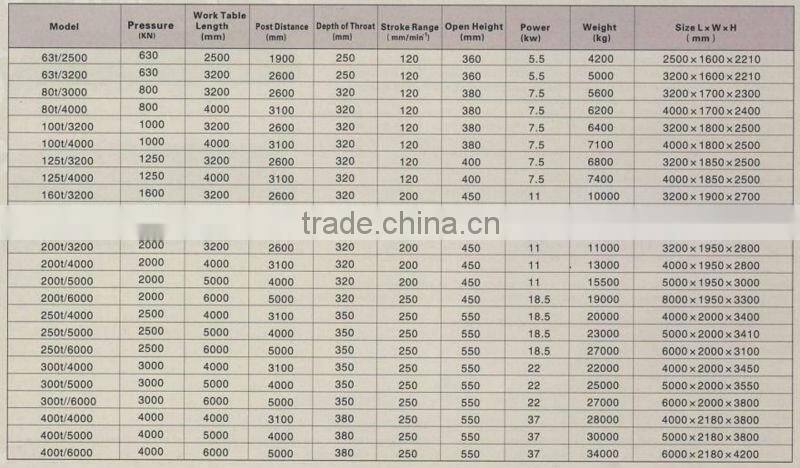

2. Technical Specifications
