High capacity of Bottle Unscramble Machine

Detailed Product Description

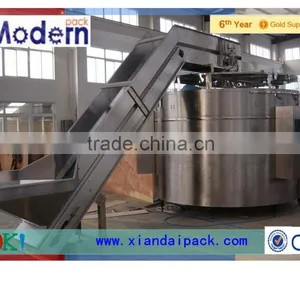

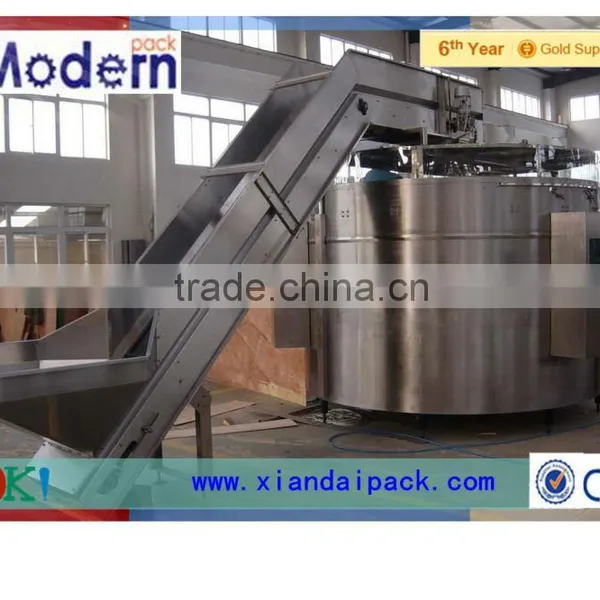

Bottle Unscrambling Machine
1. Capacity:6000-24000bph
2. Suitable for many sizes of bottles
3. More efficient and save time

4.Working lacation: 16-24

5.Air supply pressure: 0.7MPa

6.Air consumption: 1.5-1.8M³/ min

7.Applicable bottle: dia.50-96, height 165-310

8.Motor power: 3KW

9.Auto empty bottle lifter power: 0.75KW

10.External dimension: Φ2200×2340mm

11.Weight: 3200kg

This bottle unscrambling machine can unscrabling the bottles and then transport it to the conveyor orderly, and sent it to the other equipment(such as rinsing filling machine, etc.). This device can reduce the labor intensity, improve production efficiency, it can also prevent water from secondary pollution.

Bottle Unscrambler

1, Main motor is the frequency speed changing method.

2, Applying two-time pushing and unscrambling device will reduce amount of empty working position and improve efficiency of output bottle.

3, Special designed dropping bottle slot can suit bottles with different length. It needn’t change bottle slot and just adjust slot properly.

4, The middle of cylinder has a door for mould exchange, this makes it convenient disassemble and assemble bottle slot and treat clog.

5, The bottom of cylinder has a door for maintenance, this makes it convenient for workers entering bottom of machine.

6, This machine is equipped with manual operator for easy maintenance.

7, It has complete safety measure. When maintenance door and mould exchange door are open, machine can’t start, then you can use manual operator to control machine.

8, The output bottle poking wheel of unscrambler is equipped with block bottle detector that can protect machine effectively.

9, On the umbrella shape tower at the center of unscrambler, there is a bottle detector to control stop and start of lifting machine that supplies bottle.

10,The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.

11,The outer cylinder has oil nozzle that can easily add lubricant to gears, bearing and cam.

12,The air pipeline system has pressure switch and gate valve, if compressed air can’t be put through, the machine can’t start too. The gate valve and the machine are interlocked and save air consumption.

13,The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.

14,At air convey way’s input bottle end, there is block bottle treatment device that is driven by cylinder. When bottle is blocked, the device removes it automatically to prevent damage of unscrambler because of bottle’s squeezing.

15,Stainless steel made electric cabinet controls unscrambler, lifting machine and air convey way’s works through PLC.

16,Key electric components (frequency converter, PLC, photoelectric switch, relay) apply MITSUBISHI, OMRON, SIEMENS brands.

17,Air pipeline system applies SMC products.

Diameter of bottle:Φ50-Φ90mm

Height of bottle: 120-320mm

Capacity:12000 -15000bottles/hour

Dimension of main machine: 3200x2650x2500mm (LXWXH)

Power of main machine: 4kw

Bottle elevator: p=0.75kw  step less speed variation

Dimension of bottle elevator: 3000x4300x800 (LXWXH)

The dimension of conveyor system depends on customers requirements and realistic condition of your plant.

Number of position 18heads
