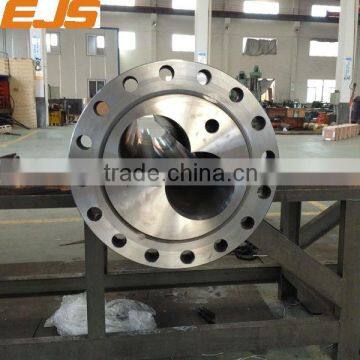

Help CenterBarrel Maplan 130 With Nitrided Treatment
Related Products
-
135mm x 28D Parallel Twin Screws for a Cincinnati Argos Twin Screw ExtruderUS$ 900 - 10,000MOQ: 1 Piece -
High Anti-corrosion and Anti-wear Bimetallic Parallel Twin Screw and BarrelUS$ 500 - 10,000MOQ: 1 Piece
-
81mm x 17D Bimetallic Reifenhauser Extruder Barrels and ScrewsUS$ 900 - 10,000MOQ: 1 Piece
-
100mm Nitriding Battenfeld Extruder BarrelsUS$ 900 - 10,000MOQ: 1 Piece
-
90mm Battenfeld Extrusion Parallel Twin Screws and BarrelsUS$ 900 - 10,000MOQ: 1 Piece
Specifications
1. Base materail 38CrMoAlA, 40Cr2. Nitrided or bimetallic treatment;
3. 1 year guarantee for pure plastics
Parallel Twin Screw

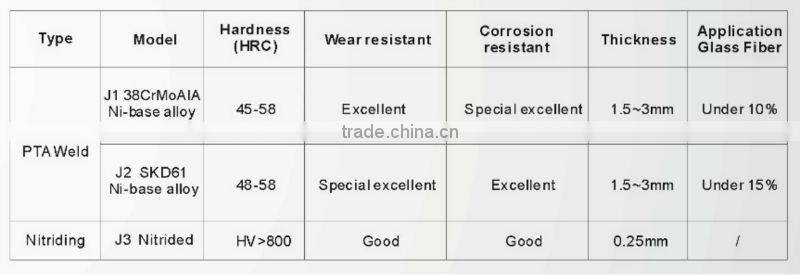

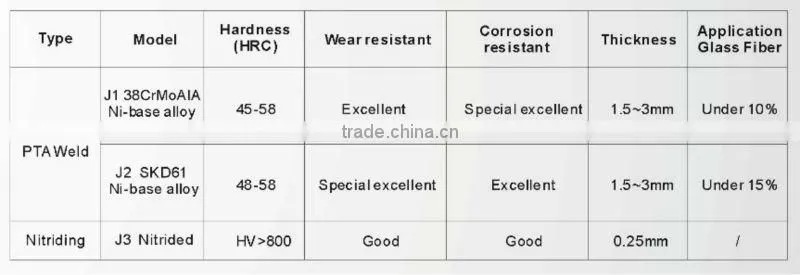

Both nitrided and bimetallic version are available. Nickel 60 alloy powder made by Stellite compnay will be used for bimetallic conical twin screw. Below is a table of technical data for these two versions:
Parallel Twin Barrel
Bimetallic spray coating on the inner wall of conical twin barrel. Below are four types of alloys to select the optimum protection of your barrels:
Alloy Type |
EJS01 Alloy |
EJS02 Alloy |
EJS03 Alloy |
EJS04 Alloy |
|
Wear resistance |
Very good |
Good |
Very good |
Excellent |
|
Corrosion resistance |
Good |
Very good |
Very good |
Very good |
|
Alloy components |
Fe+Ni+Cr+B |
Ni+Cr+Co+B |
Ni+Cr+Co+V+B |
Ni+Cr+Wc+Co+B |
|
Hardness (HRC) |
58~64 |
50~58 |
55~60 |
56~62 |
|
Temperature area (°C) |
less than 400 |
less 450 |
less than 450 |
less than 600 |
|
Coefficient thermal |
RT-250°C |
11.0 x 10-6 |
11.0 x 10-6 |
11.5 x 10-6 |
11 x 10-6 |
Expansion (/°C) |
RT-400°C |
11.4 x 10-6 |
11.4 x 10-6 |
12.4 x 10-6 |
12 x 10-6 |
E.J.S Workshop
Quality Inspection
We take only first-class steel and check every production procedure to ensure every dimension is produced precisely. A final complete inspection will be executed before dispatch.
Packaging
We use strong plywood or wooden case for all our products
