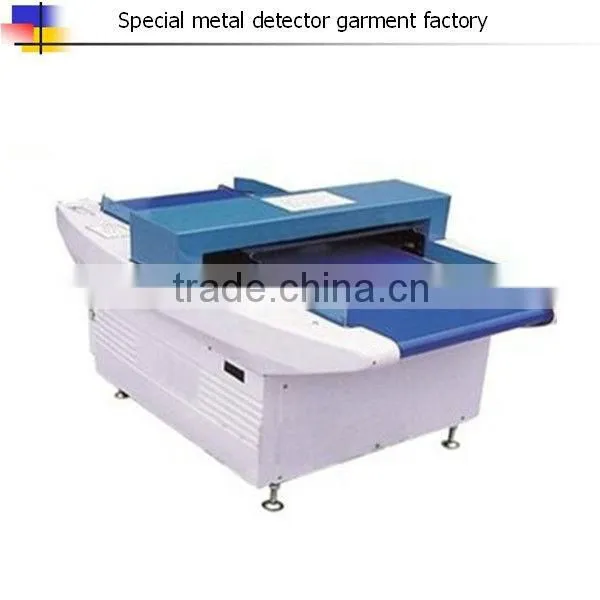

metal needle detector for spining

Model: WTA-600

Detection method: Magnetic induction

Detection sensitivity: 0.8mm steel to samll scissors

Detection adjustment:10step

Detection width: 600mm

Alarm method:Buzzer,Lamp

Belt speed:32m/min(50HZ) 40m/min(60HZ)

Rated output: Appr140W

Belt speed:32m/min(50HZ),40m/min(60HZ)

Weight: Appr220Kg

Dimension: 1650mm(L)*1050mm(W)*900mm(H)

window height

80mm

100mm

120mm

150mm

200mm

250mm

window width: 600mm

FE:0.8mm

FE:0.8mm

FE:1.0mm

FE:1.5mm

FE:2.0mm

FE:2.5MM

window width: 700mm

FE:0.8mm

FE:0.8mm

FE:1.0mm

FE:1.5mm

FE:2.0mm

FE:2.5MM

window width: 800mm

FE:0.8mm

FE:0.8mm

FE:1.0mm

FE:1.5mm

FE:2.0mm

FE:2.5MM

window width: 900mm

FE:0.8mm

FE:0.8mm

FE:1.0mm

FE:1.5mm

FE:2.0mm

FE:2.5MM

window width 1000mm

FE:0.8mm

FE:0.8mm

FE:1.0mm

FE:1.5mm

FE:2.0mm

FE:2.5MM

window width 1200mm

FE:0.8mm

FE:0.8mm

FE:1.0mm

FE:1.5mm

FE:2.0mm

FE:2.5MM

1. Cycled,9 pairs of scnsor,excellentanti-disturbance performance.

2.Based on LED bar displayed control panel.

3.Hi accuracy detection locating technology,LED indication.

4.Lovel setup indication and real-time scnsitivity display.

5.Optional conveying mode after alarm.

6.Optional automatical restart.

7.Reliability mechanical frame design,Hi stable during detection.

8.Designed for universal AC power supply,switch power supply.
