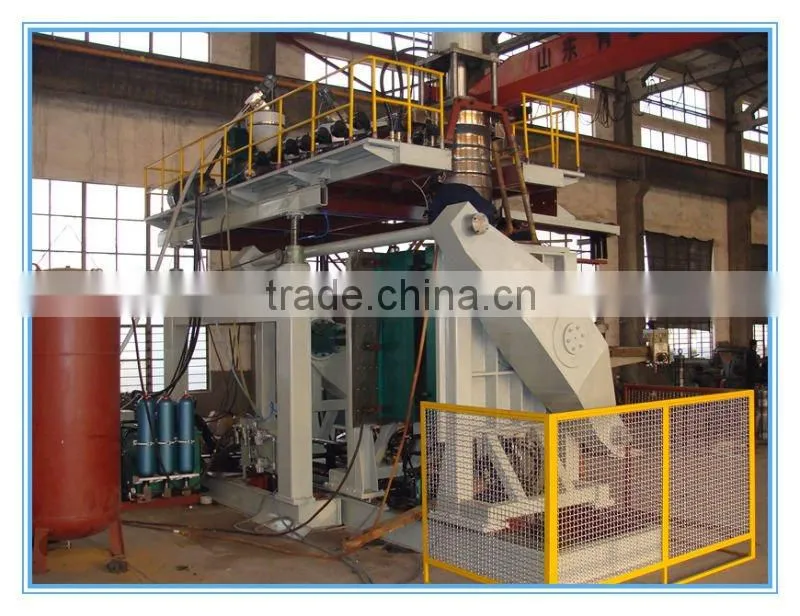

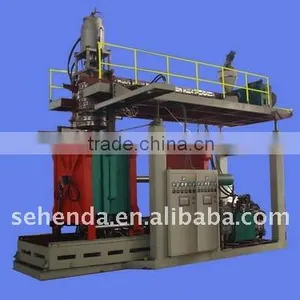

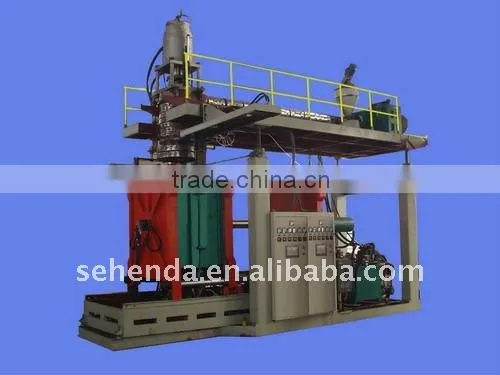

200L-1000L 3 Layers Plastic Water Tank/bottle/pallet Full Automatic Estruction Blow Moulding Machine
US$ 24,000 - 24,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
sehenda
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000L 3 Layers Blow Mold MachineUS$ 200,000 - 240,000MOQ: 1 Set -
55 Gallon Blow Molding MachineNegotiableMOQ: 1 Set
-
3 Layers 1000L Water TankUS$ 240,000 - 240,000MOQ: 1 Set
-
3 Layers 2000L Plastic Water Tank/bottle/pallet Full Automatic Extruction Blow Moulding MachineUS$ 24,000 - 24,000MOQ: 1 Set
-
220L Automatical Blow Molding Machine for Water Tank Chemical DrumsUS$ 170 - 190MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
sehenda
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.PE/HDPE bottle macking machine2.desinged and manufactured according to German standards.
Technical specification | ||
ITEM |
UNIT |
SKJ1000L 3 LAYERS |
Max. product volume |
L |
1000 |
Screw diameter |
MM |
Φ90*3 |
Screw L/D ratio |
L/D |
30:1 |
Screw drive power |
KW |
45KW |
Screw heating capacity |
KW |
60 |
No. of heating zone |
ZONE |
15 |
Output |
KG/H |
380 |
Oil pump drive power |
KW |
37+7.5 |
Clamping force |
KN |
1400 |
Mould open spacing |
MM |
3200 |
Mould thickness |
MM |
1220 |
Capacity |
L |
70 |
Die heat capacity |
KW |
48 |
No. of heating zone |
ZONE |
8 |
Die head material |
38CRMOALA(accumulator, lining, piston, die) |
|
Control action |
MITSUBISHI PLC |
|
Blowing pressure |
MPA |
0.6 |
Cooling water pressure |
MPA |
0.2 |
Size of machine |
(L*W*H)MM |
7200*5000*6000 |
Weight of machine |
MT |
36 |
