Specifications
Gas Filling Station Equipment1) Capacity: 150m3
2) Pressure: 6bar
3) Medium: LNG
4) MOQ:1set
Gas Filling Station Equipment

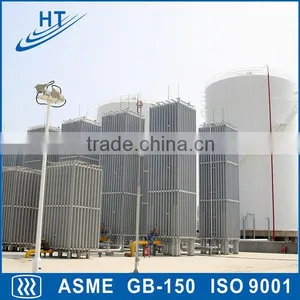

Part 1 Vertical LNG storage tank
Model: ZCF-150000/6
Main technical parameter:
Type Vertical
Available volume: 150m3
Geometric volume: 157.89m3
Max working pressure: 6bar
Filling Ratio 95%
Insulation method: Vacuum powder
Design temperature: -196°C
Medium: LNG
Main body material 0Cr18Ni9/Q235-B
Dimension: 3824×3824×22000mm
Empty weight ~60060kg
Part 2 Company information
As a top 2 gas equipment manufacturer in China, we specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc. If you do interested in the mentioned products, we would be so glad to be your choice.
Part 3 FAQ for gas filling station
1. What kind of filling station you are interseted in? LNG? oxygen? nitrogen?LPG? ----the medium.
2. The whole station includes storage tanks, vaporizer,pump,filling device, do you need us to provide all of these?
3. What' s the capacity of your cyinder? what's its pressure? How many cylinders do you want to fill a day? How many hours do you work per day?
