Specifications
perfume making machine1.Titanium metal pipe
2.imported chiller
3.antisepsis pump
4.CE, TUV
Top Sale perfume making machine
Performance and characteristic:
This perfume making equipment is developed on the basis of bring in overseas ..advanced technology, it is specialized used in clarification and filtration of fluid after freezing in cosmetic water, perfume water, it is ideal equipment for cosmetic factory filtrating cosmetic water, perfume water. It adopts stainless steel 304-2B or 316L, with pneumatic diaphragm pump imported from U.S. as pressure source so as to positive pressure filtrating. The connecting pipes adopt sanitation grade polishing pipe, most are quick-install connecting way, easy to take apart and clean. Equipped with polypropylene micro porous filtrating membrane which is widely applied in cosmetic industry, research institute, hospital, laboratory etc, to clarify of little fluid and sterilization or chemical analysis, convenient and reliable.
| perfume making machine, perfume freezing machine, perfume maker, perfume chilling machine, perfume freezer.
.
Equipment Configuration
1, Stainless steel insulating frozen tank and Titanium metal pipe
2, Ultra-low temperature chiller (imported)

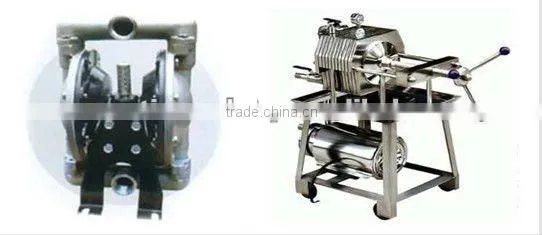

3, Antisepsis pneumatic diaphragm pump
4, Polypropylene microporous filtrating membrane
5, Portable stainless steel bracket
6, Sealed electronic control system & sanitation grade pipes and valves
Model |
100L (3P) |
200L (3P) |
300L (5P) |
500L(10P) |
Capacity |
100L |
200L |
300L |
500L |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Power |
2.2KW |
2.2KW |
3.75KW |
7.5KW |
Freezing Temperature |
-15 Celsius degrees |
-15 Celsius degrees |
-15 Celsius degrees |
-15 Celsius degrees |
Freezing Medium |
R22 |
R22 |
R22 |
R22 |
Air source |
0.5-0.6Mpa |
0.5-0.6Mpa |
0.5-0.6Mpa |
0.5-0.6Mpa |
Filter pressure |
0.2Mpa |
0.2Mpa |
0.2Mpa |
0.2Mpa |
Level 1 filter |
1.0um |
1.0um |
1.0um |
1.0um |
Level 2 filter |
0.2um |
0.2um |
0.2um |
0.2um |
pneumatic mixing + cooling unit + doublestage filtering+Plate frame filter
FACTORY
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
We can offer one-stop service for customers, which is product formula, raw material, packing material etc.
