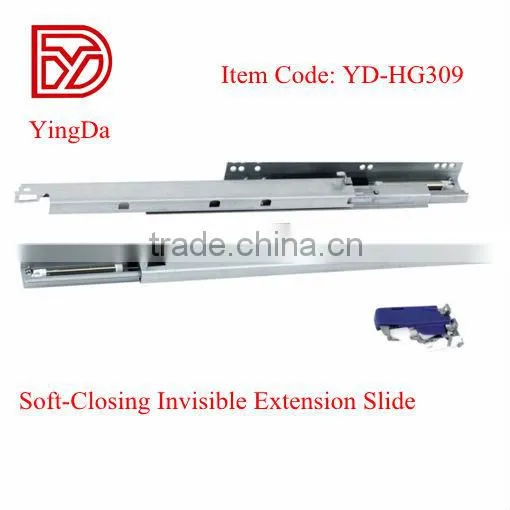

Soft closing slider drawer YD-HG309

Specifications

1.Name: Slider drawer
2.Material:steel
3.Finish:zinc, black
4.Thickness:1.0-1.4mm
5.Three Sections

slider Drawer YD-HG309



You are now browsing 1-pair (1-Left & 1-Right) of 45KG load rating, YD-HG309 invisible extension slider drawer. These slides feature: Side-mounted design, positive stop, lever disconnect, and steel ball-bearing action that is remarkably smooth and quiet.

These invisible extension drawers slides are the same high quality with 27mm width which makes them ideal for upgrading kitchens.

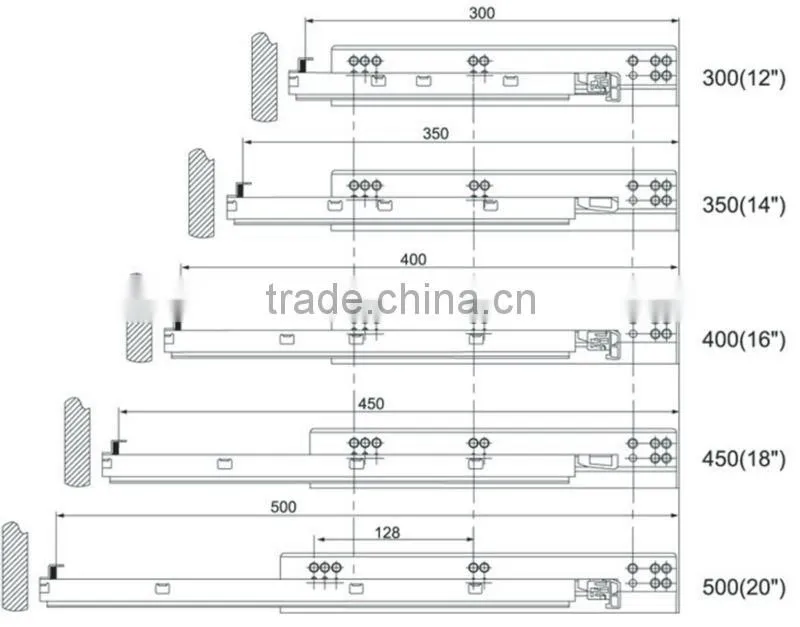

Actual Size:



Length: 250mm(10'')300mm(12" )/350mm(14" )/400mm(16" )/450(18" )/500mm(20" )

Width: 27.0mm±0.3mm (1.4 inches)

Thickness: 12.7mm±0.3mm (1/2 inch)

Opening: Full extension
Load capacity: 45kg cycle test 50, 000 times

Sections: 2 sections /3sections





For more information of other sizes, please feel free to contact.



Ideal uses are in Office furniture, Cabinets, Closets, Kitchens,& Medical furniture. These zinc finished slides are made of high-grade steel, they meets or exceeds all BIFMA, BHMA, and ANSI standards for quality and has a lifetime replacement limited warranty.









We are your ideal supplier of drawer slides, not because we use thin steel to keep our prices down but because of our high volume and low overhead we can simply manufacture high quality slides at a lower cost than the competition. If you see a lower priced slide, it is a lower quality slide.



For additional styles and sizes, Please visit website.



More ball bearing drawer Slides for your choice





Name	Item code	Material	Finish	Height	Thickness
Soft-closing ball bearing slide	YD-HG400	Work hardened  cold rolled steel	Blue zinc , Electrophoresis black , Black zinc	45mm	1.0*1.0*1.0/ 1.0*1.0*1.2/ 1.2*1.2*1.2/ 1.2*1.2*1.5   (mm)
Push-open ball bearing slide	YD-HG410
Three sections Ball bearing slide	YD-HG310
Ball bearing slide for side feet basket	YD-HG451				1.2*1.2*1.4/ 1.0*1.0*1.2  (mm)
Hanging and inserting type ball bearing slide	YD-HG450
Ball bearing slide for bottom pack hanging basket	YD-HG453				1.2*1.2*1.4/ 1.0*1.0*1.2  mm (45,35mm)
Ball bearing slide for side pack hanging basket	YD-HG452				1.2*1.2*1.4/ 1.0*1.0*1.2  (mm)
Three sections Ball bearing slide	YD-HG335			35mm	1.0*1.0*1.0  mm
Two sections Ball bearing slide	YD-HG316			27mm	1.0*1.0/ 1.1*1.1  (mm)
Soft-closing invisible extension slide	YD-HG309		Blue zinc	45mm	2 styles (3sections and 2 sections)
