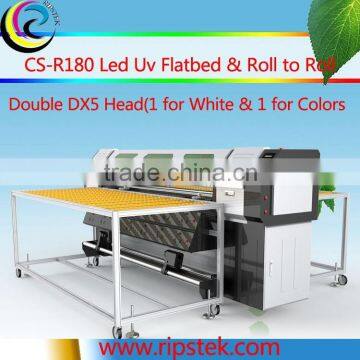

Advantage of Garros R180 model printer:
Can print with Flatbed and roll to roll media
X.Y Axis AC Servo motors
With a flatbed and also have the mesh best,the materials moving very well.
DX5 head more high resolution 1440dpi
Features:
Printhead: DX5 F186000 head
Printing media: vinyl, polyester,flex,back-lit film, PS Board, KT Board, PVC Foam Board,ceramic,glass,wood etc
Ink: Garros UV inks
Printing Width: 6ft 1.8m width
Model |
R180 Flatbed&roll to roll UV printer |
|||
Print head |
Piezo electric nozzle DX5 print head |
|||
Print head quantity |
2 pieces |
|||
Print Resolution |
720×720 ,720×1080 ,720×1440(dpi) |
|||
Print Width |
1860mm ( 6ft ) |
|||
Print Ink |
UV ink |
|||
Ink Capacity |
440ml |
|||
Ink color |
4 colors / 8 colors printing (C,M,Y,K / C,M,Y,K,LC,LM,LK,LLK) |
|||
Ink supply system |
Block brank system |
|||
Print speed |
4 Pass |
30 sqm/hr |
||
6 Pass |
20 sqm/hr |
|||
8 Pass |
15 sqm/hr |
|||
16 Pass |
8 sqm/hr |
|||
Print Medias |
PVC, PP, soft, textile, PVC board, hollow, metal, wallpaper, leather, glass, textile fabric, acrylic, KT board, Chevron board, etc. |
|||
Print Medias Thickness |
0-30mm |
|||
Heating system |
Embedded intelligent heating system embedded segment piecewise intelligent heating system |
|||
Media adsorption system |
Independent intelligent air suction system with 3 sections control |
|||
Media Feeding system |
Standard Equipped ( maximum weight 80kg ) |
|||
Auto Nozzle cleaning system |
Auto clean function attempts to prevent the flash and moisturizing spray has a auto cleaning function and moisturizing spray blockades flash function |
|||
USB interface |
USB2 .0 ( USB 3.0 optional ) |
|||
Computer System |
WINDOWN/98/XP/7(32bit.64bit) WINDOWN/98/XP/7(32bit.64bit) |
|||
RIP software |
Maintop , Photoprint , Wasatch |
|||
Imput voltage |
AC220V,50Hz/60Hz |
|||
Temperature during using |
18-32degree |
|||
Moisture during using |
40-70% |
|||

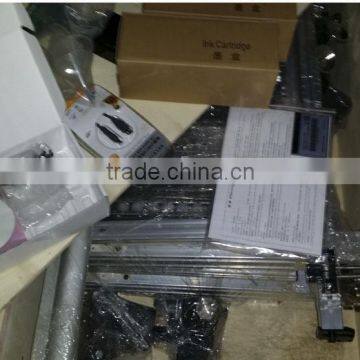

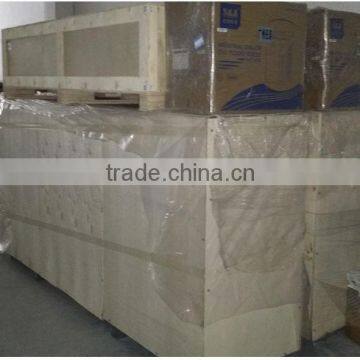

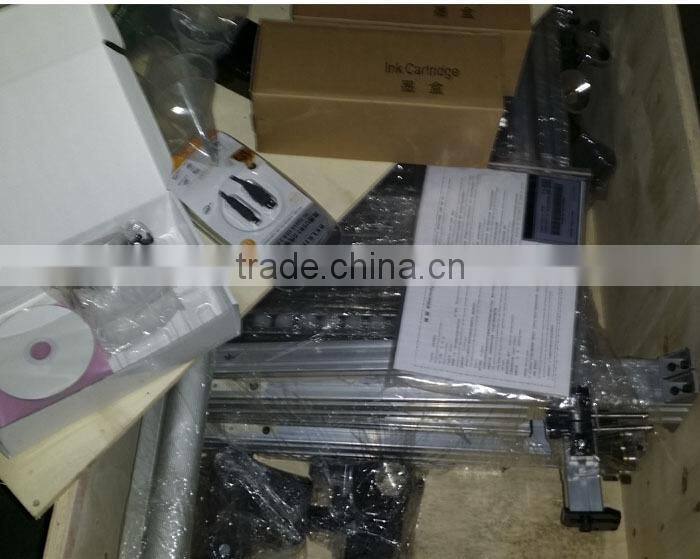

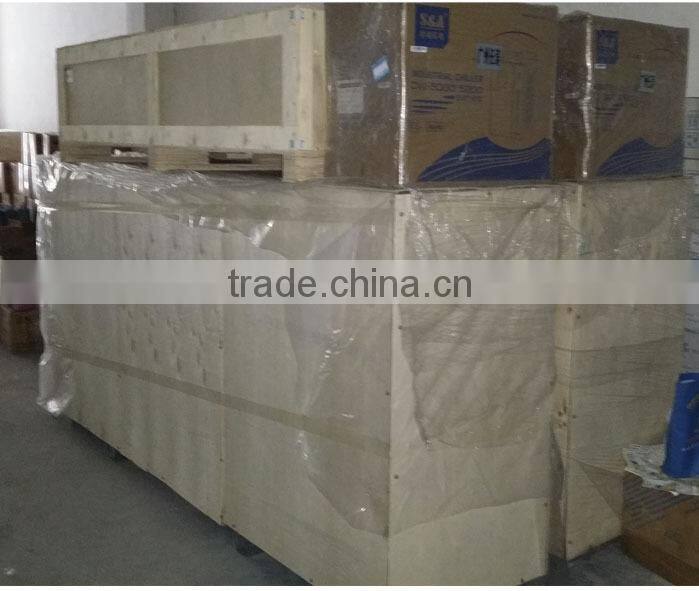

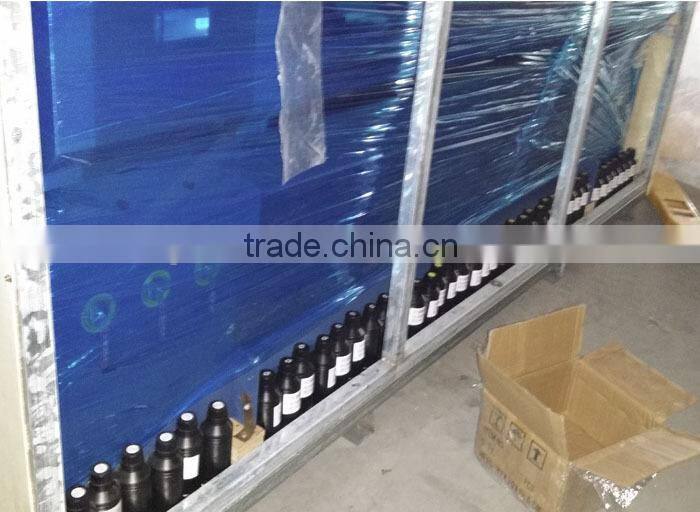

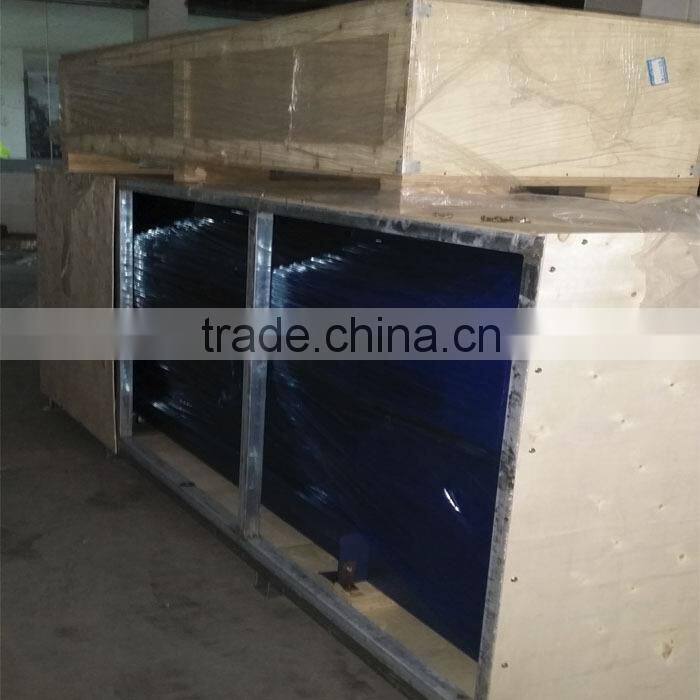

Package detail |
3300mmx1045mmx1500mm(LxWxH)/1000kg |
|||

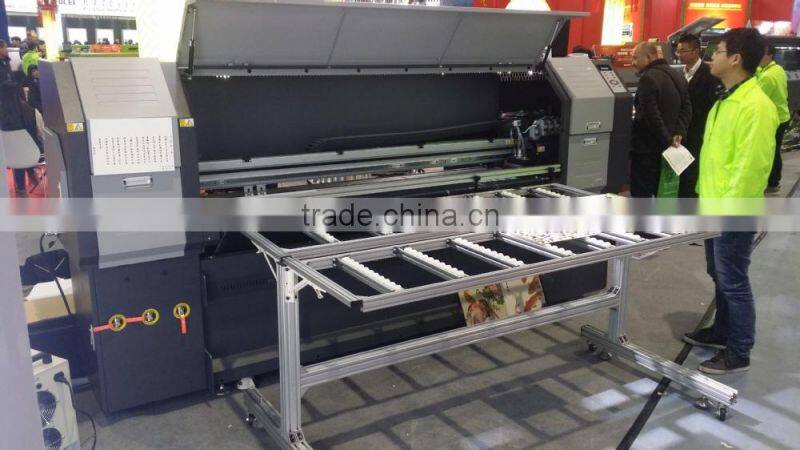

1)The conveyor feeding system can convey both rigid and flexible media accurately
2) Stainless steel capping station , which is strong and durable to avoid head clogging. Automatic cleaning and wiping system make the printer more friendly to user.Special Anti-collision mechanism, cleaning system and carriage go up and down at same time.

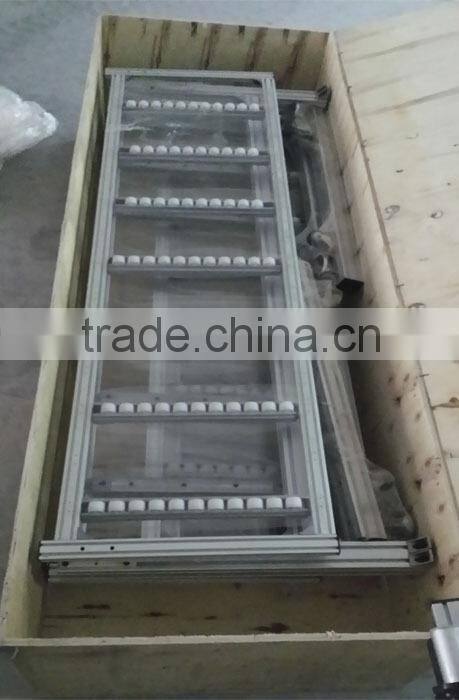

3) Equipped with the feeding and take up system for roll printing,and also comes with front and back extension platform for plate printing.
4) With advanced servo control system. Ensure the accuracy of the printing position and consistency. very long length material can be also transmitted smoothly.
5) Full range of air-suction function, it is convenient for the transmission of rolls and plate materials, intelligent vertical location, standard tension rail take-up system.
Mob&whatsapp: +86-18565287545 / +86-13480294053
Skype: cuihongjiang Wechat: 273442704
If you have any questions please do not hesitate to contact us
