Specification for printer

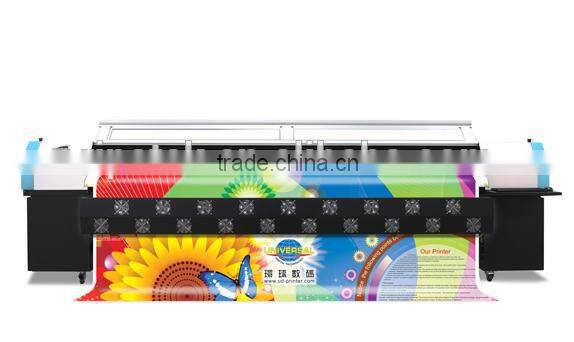

Universal Digital Pheaton Outdoor Large Format Digital Printer

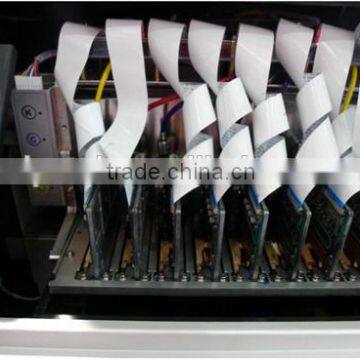

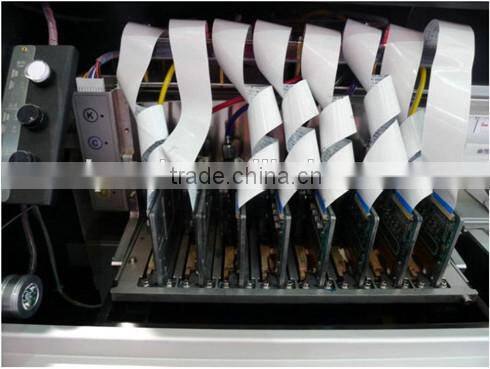

8pcs SPT510-35PL Printheads
Double 4 Color Printing
Alloy-aluminum Platform
Infiniti/Challenger stable printer UD-3208Q
1,Low ink sensor, auto or manual ink supply system.
2, Double four color printing, vivid color & high speed .

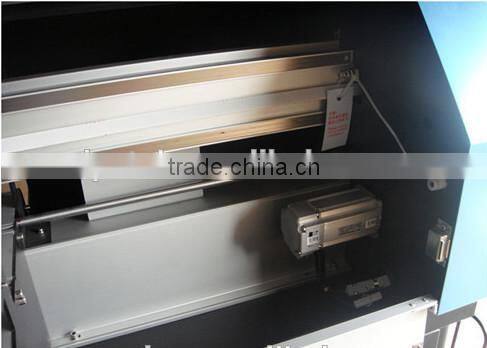

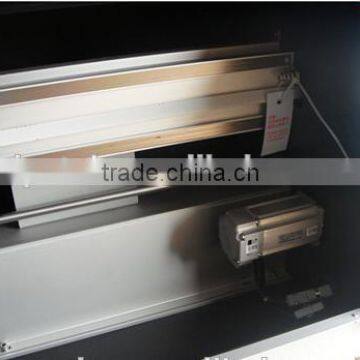

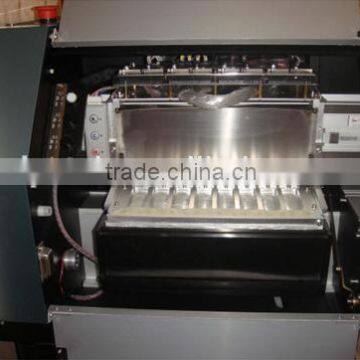

3, X, Y axis AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;

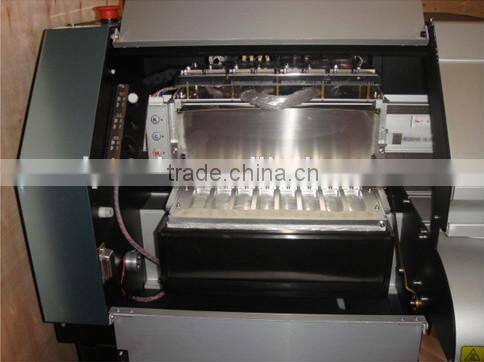

6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong ,flat and quiet .
Product Model |
UD-3208Q |
|
Printhead |
SPT510-35PL |
|
Number of Printhead |
8 Heads |
|
Maximum Print Width |
3200mm |
|
Output (m²/h) |
Print mode |
Standard Output (m²/h) |
360x360 1 pass |
101 |
|
240x720 2 pass |
76 |
|
240x1080 3 pass |
51 |
|
360x1080 3 pass |
34 |
|
720x720 4 pass |
26 |
|
Ink |
Type : |
Solvent Ink / Mild Solvent Ink |
Color : |
4 Colors( C , M , Y , K ) |
|
Capacity : |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System : |
Low Ink Detector, Auto or Manual Ink Supply System |
|
Media |
Width : |
3300mm |
Type : |
Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc |
|
Auto Media Feeding System |
Equipped ( Max. Media Weight 80kg ) |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning Anti-clogged Flash Function & Capping System |
|
Pre-heating & Drying System |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
Optical Fiber |
|
Printhead Height |
2 to 6 mm Above Media Adjustable |
|
RIP Software |
Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera |
|
Input Power |
AC 220V ,50Hz/60Hz |
|
Machine Dimension |
L4600 x W820 x H1320 mm Net Weight : 482Kg |
|
Package Dimension |
L4650 x W970 x H1600 mm Gross Weight : 770Kg |
|
Operation Environment |
Temperature : 20??/SPAN>28? Humidity : 40%?/SPAN>60% |
|
1.User-friendly&Individual positive pressure capping and cleaning system,easy for maintenance

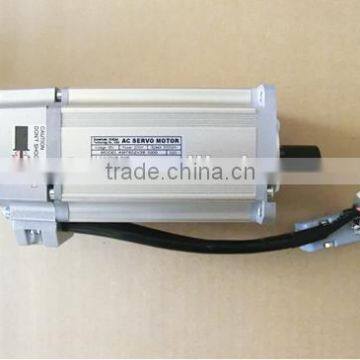

2.Special AC servo motors for mobility in X-Y for the shift in the printing area.

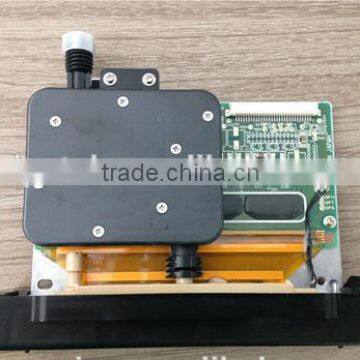

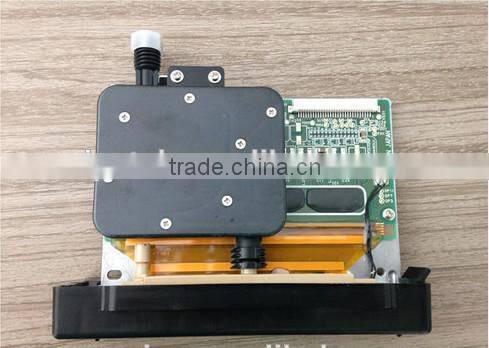

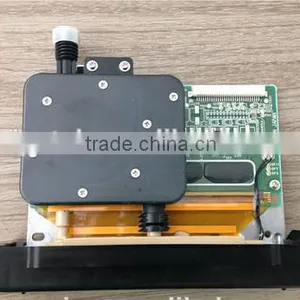

3.WithSPT 510 printhead,voltage adjustable!Avoiding printhead clogging under huge temperature change!

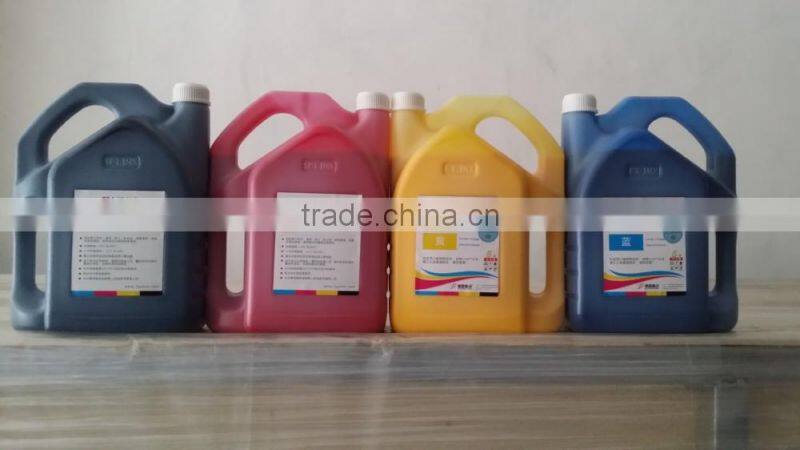

4.Original Infiniti SK-4 ink,vivid color,high climate-resistant and long durability,ensure the printing quality!
Our services
Technical support
Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on .
All kinds of spare parts for the machine of our sale to ensure your machine running smoothly .
The most important is we have a professional skill team to make sure the good technical support is always available for you .
WHY CHOOSE US ?
1. The advanced equipments and consumables products selection and considerate service are ensured and to bring you efficiency, productivity and a positive return on investment for years to come.
2. Comprehensive color management and profiling services, workflow optimization and customized training are offered. To ensure you're always fully functional, we have engineers right around the country to maintain and service your machines.
3. All the top brands spare parts, accessories and large inventories of consumables to keep your business running smoothly.
You are welcomed to be our dealer and grow together with RIPSTEK. Let's gain the biggest mutual benefit
Warranty:
Our printers have one year warranty.
Manual:
We have professional installation video and operation manual to teach you in stall the printer and operate it well .
Teams:
We have professional team to train you operate the machine well and to know the machine well. Welcome to our office in Guangzhou to have the free training.
Inventory:
We have original printer in stock in our Guangzhou warehouse.
All top famous brand spare parts and accessories to keep your business running smoothly.
Payment: West Union ,T/T
How to order?
Step1. After making every details clear with our sales , please confirm orders to us .
We will send you a proforma invoice ( PI). Need your informations , such as
full name , country , city , detial address , post code ,tax number , tel ...
Step2. Send payment T/T or West union accroding to the PI & send back us the proof .
We will delivery by fedex or DHL within 2 working days after payment confirmed .
Setp3. Confirm us receipt of products .
