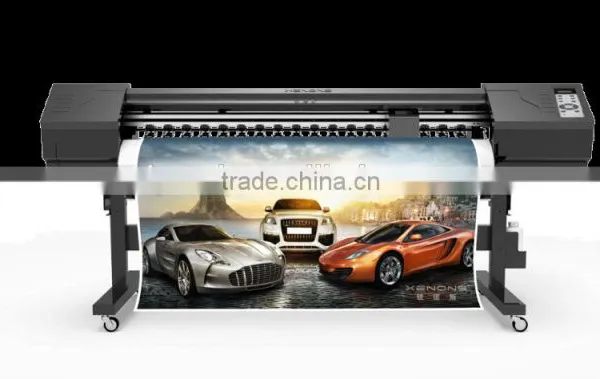

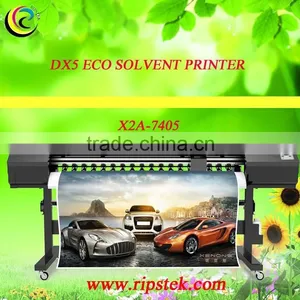

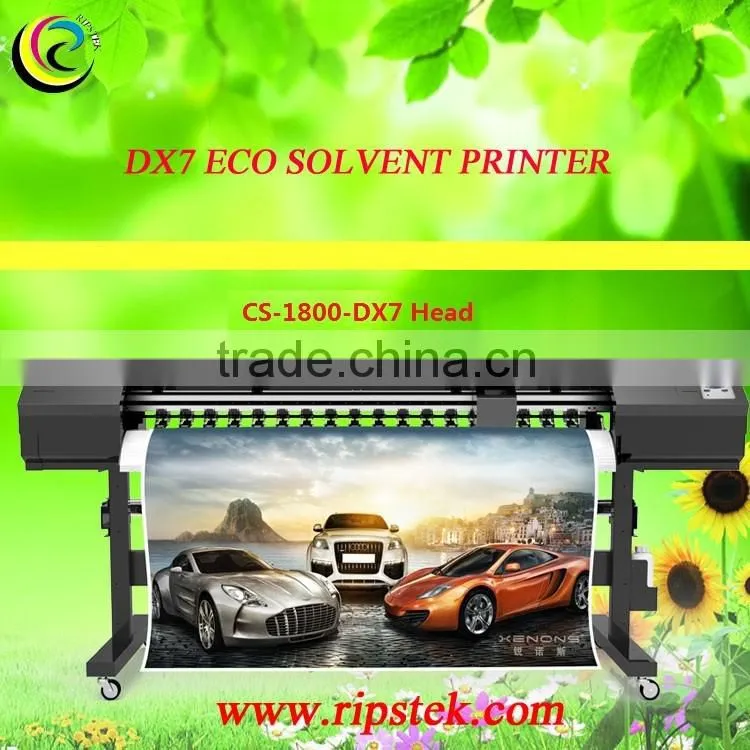

1.8m eco solvent printer

FOB Price

USD $3,500 - $4,200 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Plate Type:	Other, Roll to Roll	Place of Origin:	Guangdong, China
Brand Name:	RISPTEK	Model Number:	CS-1800-DX5	Usage:	Card Printer, Label Printer, Paper Printer, Other, Card Printer, Label Printer, Paper Printer, Adverisiting Flex , Vinyl,PP
Automatic Grade:	Automatic	Voltage:	AC220V	Gross Power:	1500w
Dimensions(LWH):	2650x860x680mm	Weight:	175kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

Specifications

1.EP SON DX5 price of plotter machine
2.Resolution: 1440dpi
3.Width:1.6m,5ft.
4.Printing stable ,maintop ,photoprint

Printer Parameter

Product Model	CS-1800-dx5 plotter printer eco solvent
Printing Technology	Ep son 5^th Micro Piezo print head Technology
Number of Print head	2 Heads / 1440 Nozzles , 8 x180 nozzle rows each head
Ink Colors	double 4 colors / (C,M,Y,K)
Print head Height	Adjustable 2~5mm
Resolution	Newest Generation Variable DOD Piezo Ep son Printhead DX7,1440dpi
Ink Droplet Size	1.5~12pl
Printing Width	1600mm(max)
Speed	4Pass : 32sq.m/hr
	6Pass : 22sq.m/hr
	8Pass: 16sq.m/hr
Heating System	The heaters for front and center platform separately, PID temperature control
Drying System	External Fan
Media	Width: 1600mm (max media width)
	Media feeding mode: Automatic feeder
	Automatic take up (optional)
	Self-adhesive paper, PVC, Mesh fabric, Textile, PVC flex banner, Vinyl, Paper, Fabric, Leather and etc.
Ink	Eco Solvent Pigment Ink
	Eco Solvent Dye Ink
	Water Based Dye Ink
Ink Supply	Pipe based continues ink supply / Ink Cartridge 8 x 350ml
RIP Software	Maintop,
RIP Software	PHOTOPRINT (optional)
Printing Interface	USD2.0 , RS232
Operating System	Windows XP
Voltage	AC 220V~240V 50/60HZ or AC 110V~120V 50/60HZ
Auto Media System	Equipped with auto adjusting system
Package Dimension	L2400mm x W800mm x H630mm (bracket included) 250KG
Working Environment	Temperature 20°C~25°C Humidity 40~70% Non-condensing

Picture Showtime

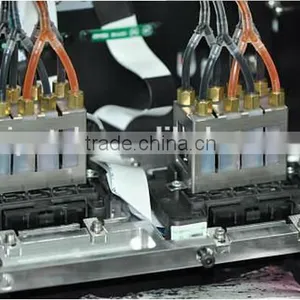

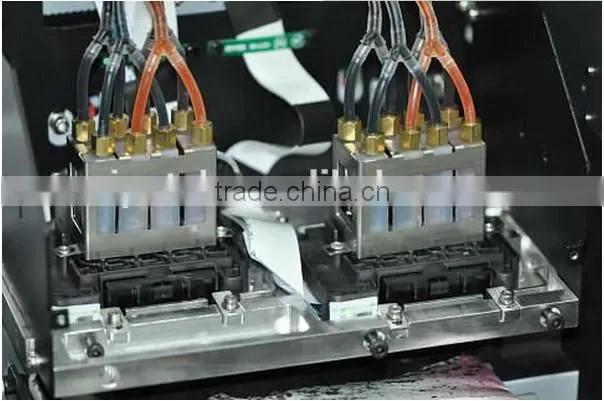

1. Print head

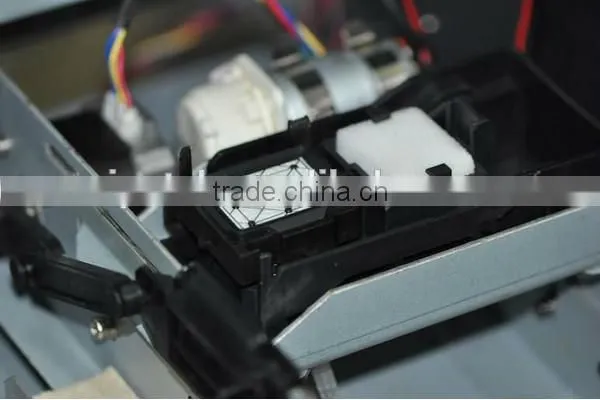

2.Service station Capping

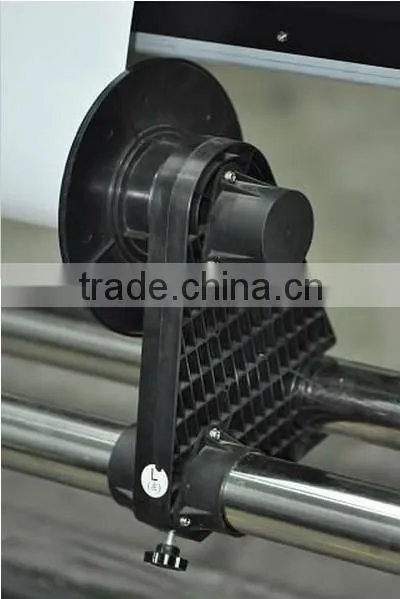

3.Media Feeding System

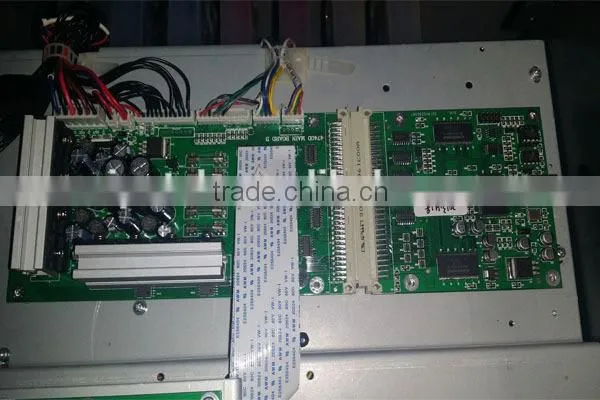

4.Print head Electric boards

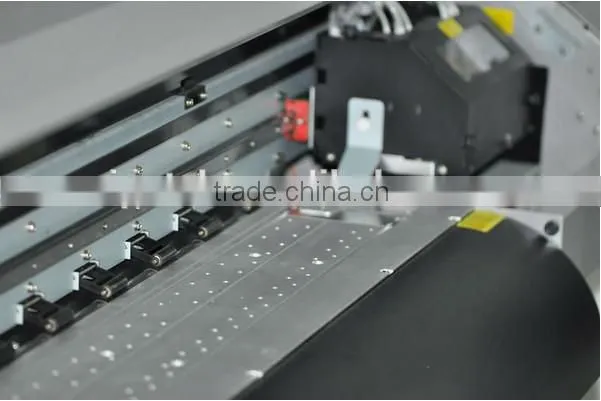

5.Printing Table & Pinch Roller

Our Services

6.Warranty and Technical Support
