Guangzhou Ripstek Digital Technology Co., Ltd.: Guangzhou, Guangdong, China; Main products: Eco solvent printer, Solvent printer, UV flatbed Printer, UV roll to roll Printer, Cutting Plotter

Home > Products > All kind of Heads > Konica 1024/42PL/14PL Head

Konica 1024/42PL/14PL Head

FOB Price

US$ 1 - 770 / Unit

1 Unit(Min. Order)

Port Guangzhou/shanghai/shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Japan
Brand Name	SPT	Model Number	KONICA 512/42PL
Usage	Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer	Voltage	See the Lable on the Head
Dimensions(LWH)	17167	Weight	0.64kg
Certification	ROHS CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

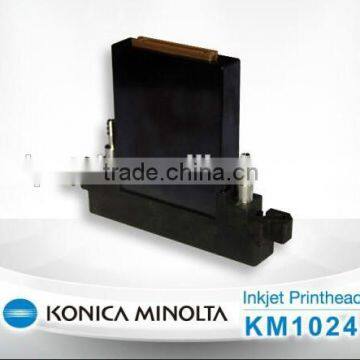

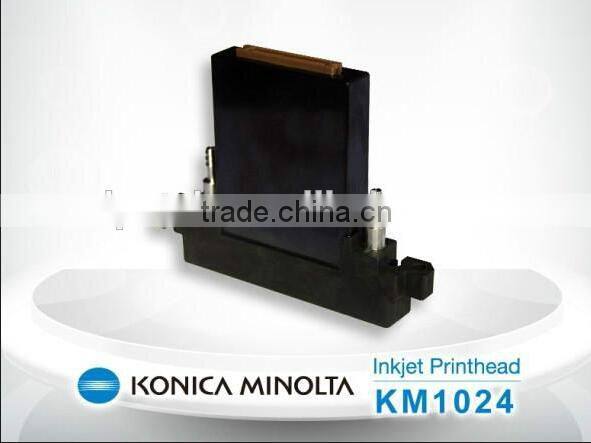

Features of the Konica Minolta 1024head

(Brand New and Original from Japan)

Feature

Major improvement in productivity by use of 1024 multi-nozzles and realization of wide print width of 72mm

The unit is equipped with twice the number of nozzles mounted on the KM512 printhead, enabling the high density required to realize the 72mm print width.
This increased width further enhances applicability to printing systems (e.g. Single-pass inkjet printers) that demand high productivity.

Printhead power consumption is reduced by 50% through the use of a new, high efficiency piezo actuator.

Konica Minolta piezo on-demand inkjet heads are already driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. This makes the printhead ideally suited to "green" design and shows Konica Minolta’s ongoing consideration for the environment.

Increased grey-scale levels produce richer tones and more subtle gradients making the printhead even more attractive to existing and new print applications.

Equipped with a new control IC, the KM1024 printhead can print up to a maximum of 8 drop sizes. This allows even greater control of the printed image resulting in smoother colour gradients and more precisely matched tones.

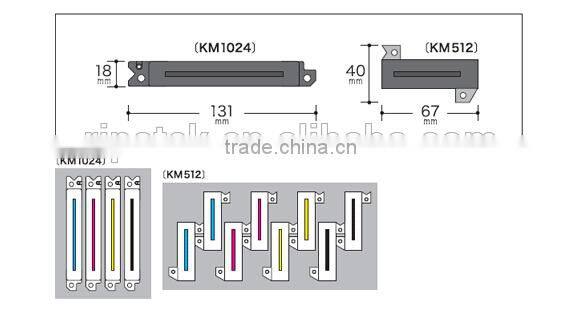

The ultra-slim, space saving printhead shape improves print quality and allows more compact machine design.

The KM1024 printheads can be mounted very closely together minimising out of alignment errors in the transport or traverse system. This improves print registration resulting in consistently higher quality print. As multiple printheads can be mounted in a smaller space it is often possible to greatly reduce the length of the print path resulting in an overall reduction in machine size.

For HP DesignJet 9000s/8000s/DesignJet 10000sKonica Minolta 512 head suitable printer

Myjet WB320 / LB320 / LE320 && For Seiko ColorPainter 64S / ColorPainter 100S

Allwin C8 / C12 / H8 && Liyu Apollo PTP-KL / Maxima PZ-KM

DGI SaturnJet ST-1806 && Flora HJ 3200Turbo

JHF Vista LO3/JHF VISTA Vista2506/ Vista3306 / S5004F / S5006FS

OCE CS6060 / CS6100, YSL UV printer && TECKWIN UV printers

Rodin K4320-A / K4320-B && Aestrik InWear S3304K5 / InWear S3308K5

Skyjet PC-series / HS-series

Package and delivery:
1.normally, All the products will deliver to you in 1-2 workdays after confirm the payment(if not have special case)
2. We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
Shipping advantages:
1.My company has our own FedEx, and UPS account, will have 20% DISCOUNT for FedEx and UPS shipping cost.
2. All the goods delivery by FedEx or DHL express from Guangzhou,fast delivery save your time.
3. we can declare low value on the shipping invoice and bill,in case you pay less custom tax.
4. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City
5. Delivery time to your country

Payment:

T/T, Western Union, Paypal, Money Gram, Visa etc.

Print Head Return Requirements:

All our print heads are high-precision commodity and brand new, any improper operation or substandard supporting products will damage the print heads. So after receiving the goods, please first confirm print head model and specifications, any problem, please contact with our sales staff as soon as possible. Any problem after the print heads are installed and used will be non-refundable.
