5 years warrranty 1200lbs Electric Magnetic Lock for double Fireproof door
Feature
- Installation type: hanging mounted/surface mounted
- Operating: fail-safe and locked when energized
- Unlocking way: unlock when power-off
- Door type: single door
- Suitable for wooden, metal, glass, stainless steel and fireproof doors
- Wiring: PC board mounted terminal block connections
- Bracket is optional, assembled on hollow door and glass doors
- Made more secure, lock body adopts two screws on each side
- Can be used with access control system, building intercom and fire
- No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
- MA certified products of China / CE certification of EU.
- Built-in reverse current protection device (MOV).
- Shell is made of high-strength aluminum alloy, Anodized.
- Dual Voltage 12 or 24 VDC(optional).
Product description

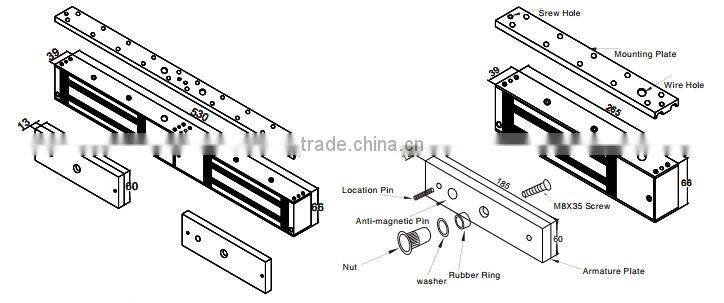

Lock Size: 530L*71W*40H(mm)
Armature plate: 185L*60W*13H(mm)
Holding Force: 500kg(1200Lbs)
Voltage/Current: 12VDC/500mA(24VDC/250mA adjustable)
Suitable for:Wooden door, Glass door, Metal door,
Fireproof door
Surface Temp: ≤+20°C
Finishes for Shell: Anodized aluminium
Finishes for Magnetic & Armature: Zinc
Weight: 9kg

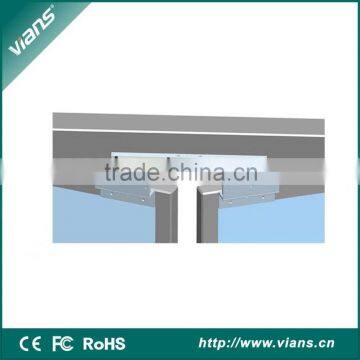

Installation
Product Feature

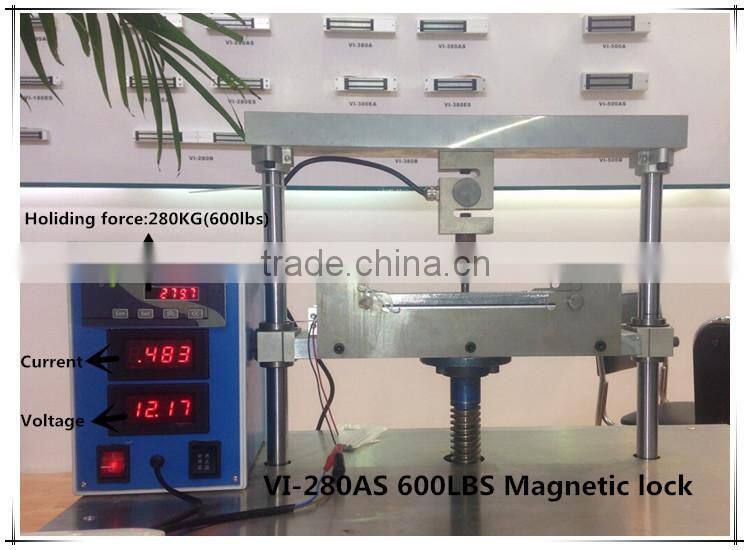

- sufficient holding force,below is the testing picture of VI-280AS(280kg--600lbs).

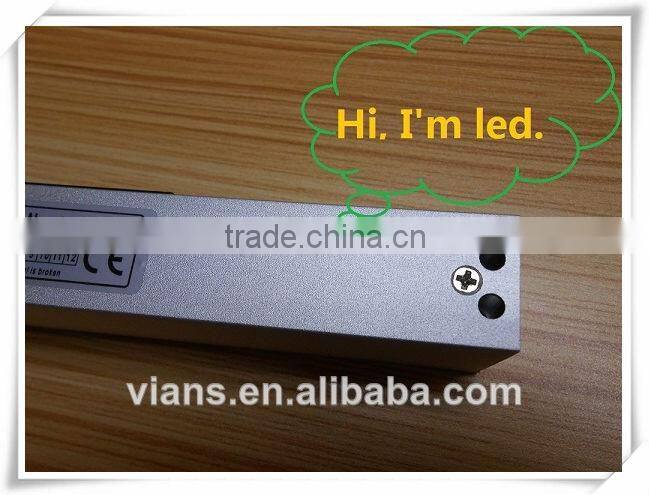

- signal monitor helps to indicate the door status.
- Good material ensure enough holding force.
- CE approval,the evidence of good quality.
